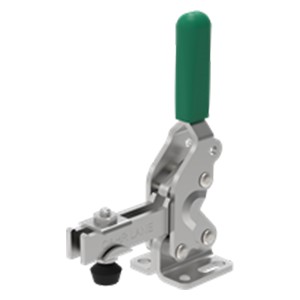

Carr Lane CL-600-HCTC | 600 lbs Holding Capacity Green Color High Capacity Toggle Clamp

Product Information

Quick acting High-Capacity Toggle Clamp with almost vertical clamping. Featuring improved clearance for safety and hardened bushings at critical pivot points. Spindle configurations are available in both inch and metric. This clamp also has a slotted base allowing both inch and metric hole mounting options. 600 lbs holding capacity.

Material Chart

table { border: 1px solid black; border-collapse: collapse; width: 100%; } th, td { border: 1px solid black; padding: 8px; font-family: arial; text-align: center; vertical-align: center; } STEEL ITEM MATERIAL HEAT TREAT FINISH DFARS RoHS Clamp Body Mild Steel - Zinc plated clear chromate ✔ ✔ Rivets Stainless Steel - - ✔ ✔ Handle Vinyl - - ✔ ✔ STAINLESS STEEL ITEM MATERIAL HEAT TREAT FINISH DFARS RoHS Clamp Body Stainless Steel - - ✔ ✔ Rivets Stainless Steel - - ✔ ✔ Handle Vinyl - - ✔ ✔ Click here for detailed material and finish specifications. California residents click here for Prop 65 information.

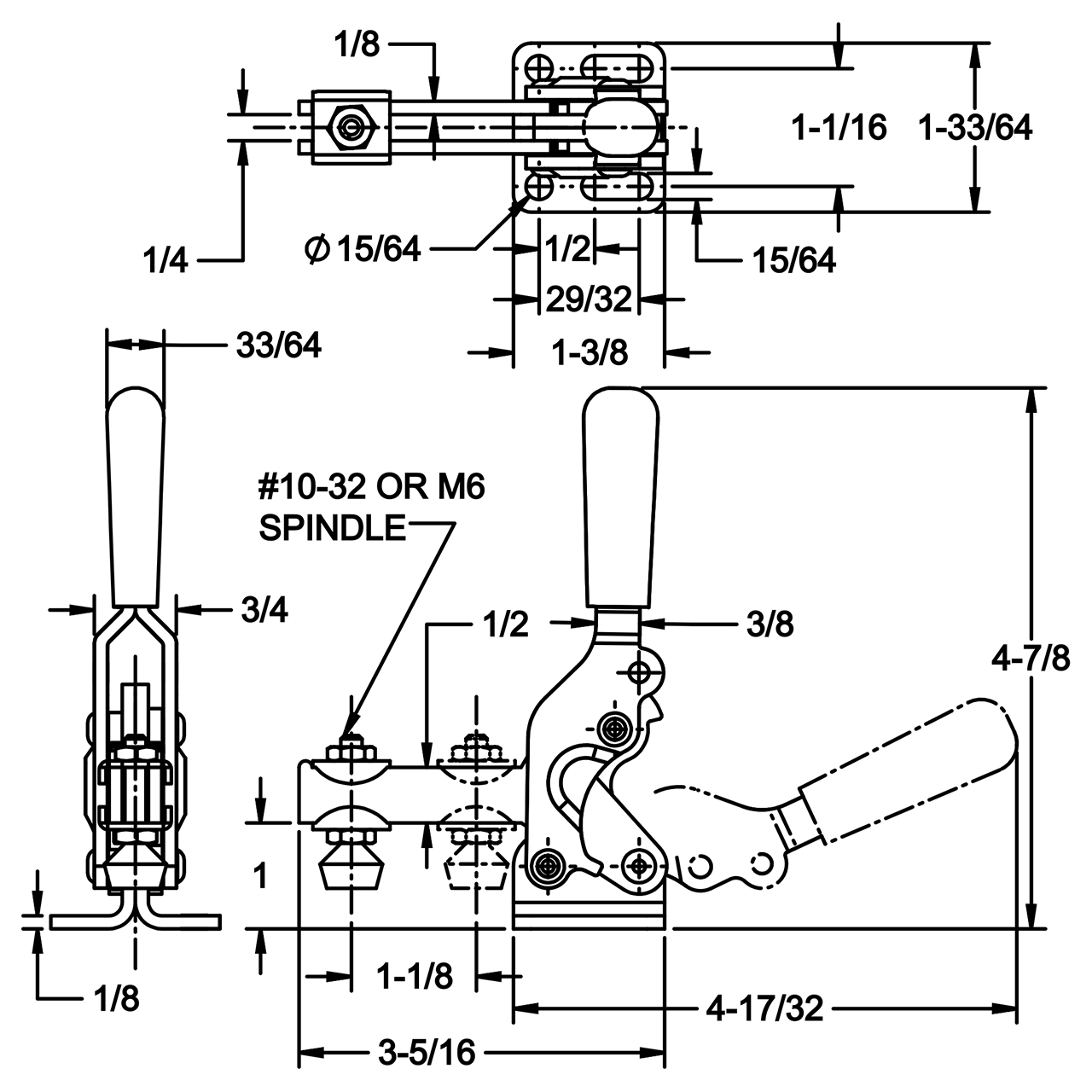

Parts Specification

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
