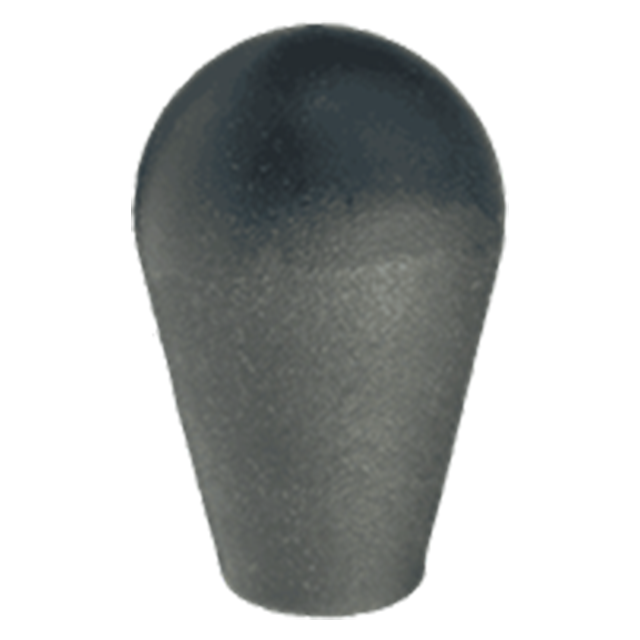

Carr Lane CL-650-PTK | 5/16-18 Thread x 1-5/8" Diameter Cushion Grip Oval Tapered Knob

$5.46
Ships:
From Manufacturer
Brand:
Carr Lane
Ships:
From Manufacturer
SKU:
50019117
UPC:
Weight:
0.13 LBS
Shipping:
Calculated at Checkout

Oval Tapered Knobs

Attractive design suitable for many applications, including control levers and push/pull rods. The version shown here is made of cushion-grip plastic, a unique Material that feels soft to the touch, comfortable yet rugged. Made in USA.

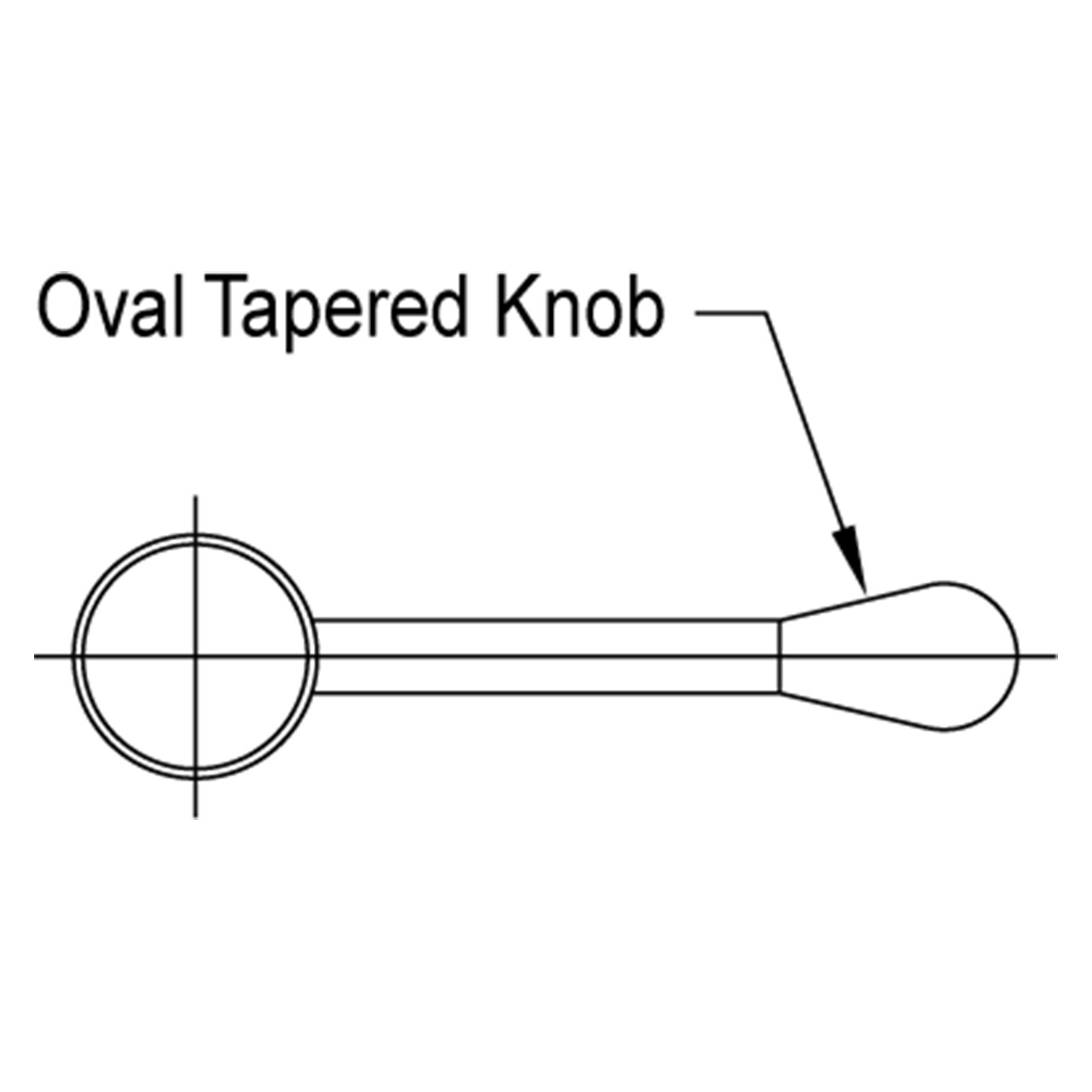

Application Information

Material

Material Heat Treat Finish DFARS RoHS
Black cushion-grip plastic (soft touch, matte Finish, rugged, excellent impact resistance, operating temperatures to 150°F, excellent gripability even when wet or oily, absorbs vibration) Yes Molded-in Brass Insert Yes Yes

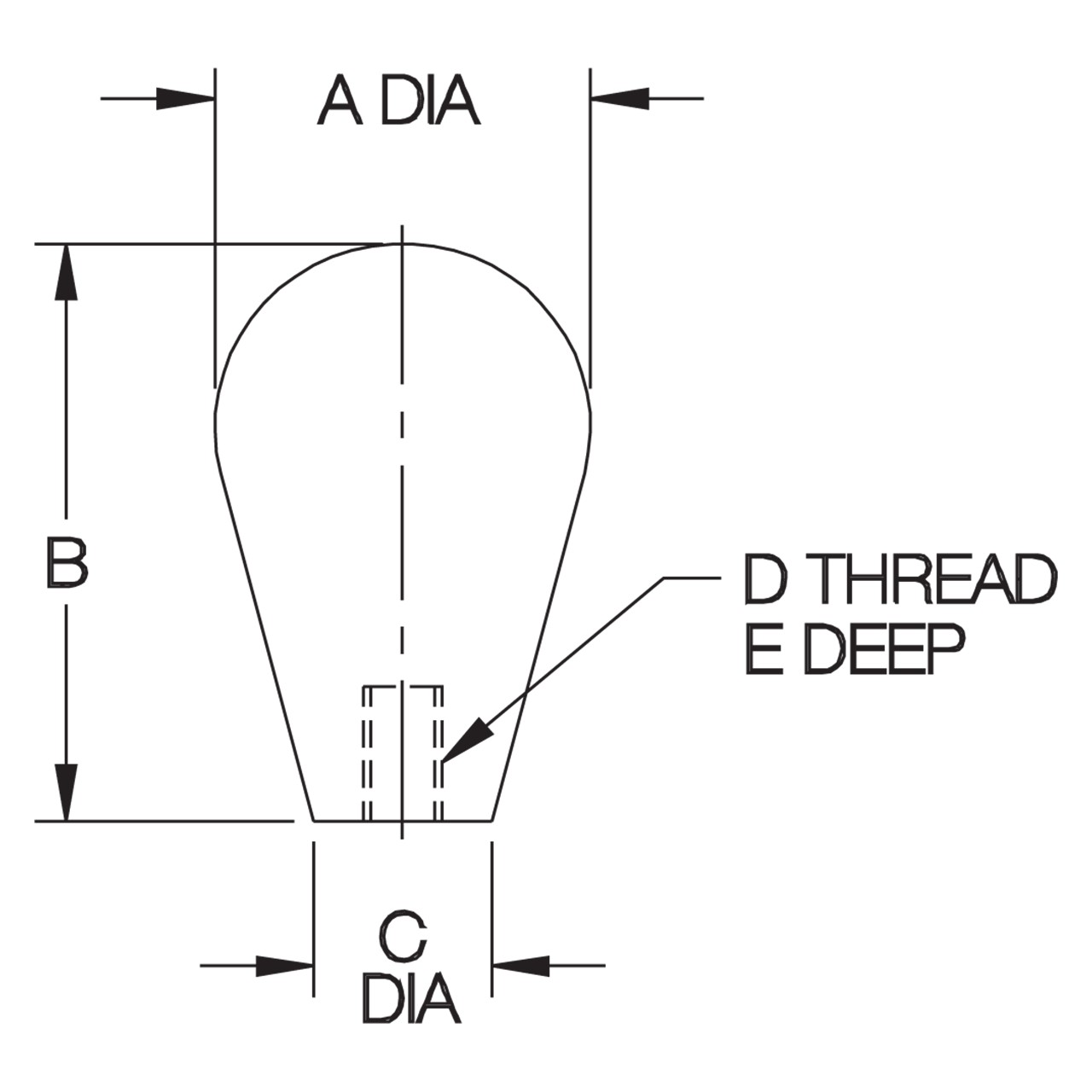

Parts Specification

A Diameter (Inch)B (Inch)C Diameter (Inch)D Thread (Inch)E (Inch)
1-5/8"2-1/2"7/8"5/16-185/8"

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
