Angle Brackets
Precision setup angles machined flat and perpendicular to close tolerances. Made in USA.
Material
| Steel | |||||
| Material | Heat Treat | Finish | DFARS | RoHS | |
| ASTM A36 steel | - | Black Oxide | Yes | Yes | |

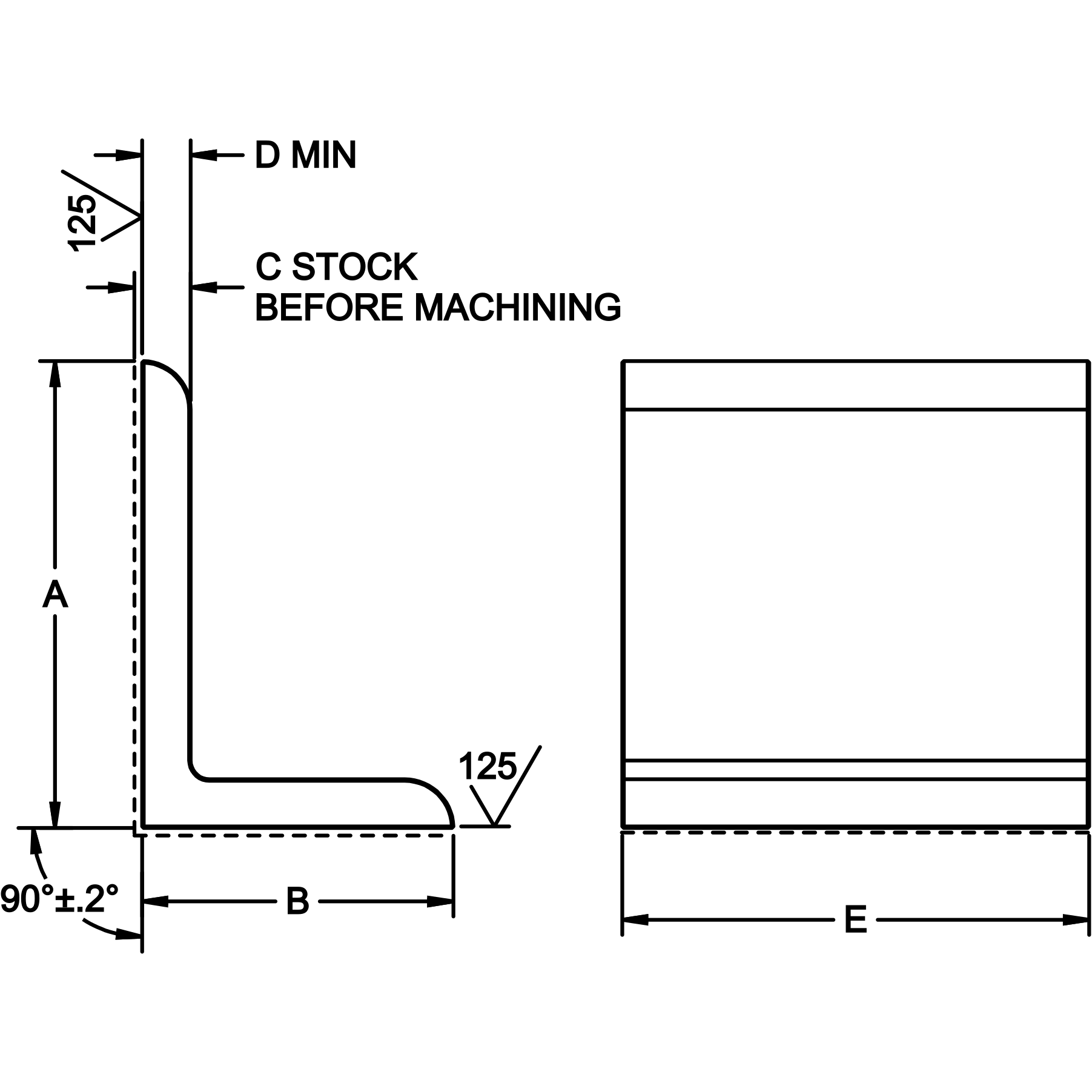

Parts Specification
| A (inch) | B (inch) | C (inch) | D (inch) | E (inch) |
| 4" | 3" | 1/2" | 7/16" | 3" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Length (Inch):
4"
Length (Decimal Inch):
4.0000"
Length (mm):
101.60mm
