Carr Lane CL-8-RGBD | 1/2" Diameter Abrasive Diamond Round Gripper

Product Information

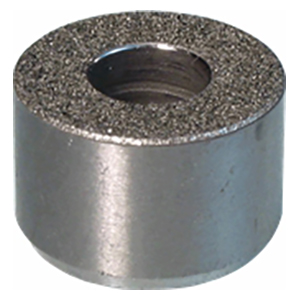

Round Grippers are replaceable inserts that provide additional holding force and/or wear resistance. The grippers shown here have an abrasive-diamond surface permanently fused to a hardened stainless steel pad. This abrasive surface, comparable to a 100-grit abrasive, provides significant holding force with relatively low clamping pressure and minimal surface marring. This diamond-particle surface also offers excellent wear resistance. The gripper body is made of hardened stainless steel for high strength and excellent corrosion resistance. These counterbored grippers are ideal for blind-hole installation and surface mounting. Available in diameters from 1/2 to 1" (12 to 25mm in metric). Made in USA.

Installation

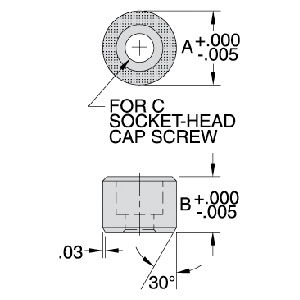

Counterbored grippers are useful whenever fastening from behind is not possible. Fasten with a standard socket-head cap screw. Grippers can be recess-mounted in a flat-bottom hole, or surface mounted to use as a rest pad. When grippers are installed in a hole, they should project slightly for maximum effectiveness.

Material

Parts Specification

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
