Carr Lane CL-8-RGF | #10-32 Thread x 1/2" Diameter Hardened Steel Round Gripper

$5.41
Brand:
Carr Lane
Thread Size:
#10-32
Diameter (Inch):
1/2"
Diameter (Decimal Inch):
0.5000"
Diameter (mm):
12.70mm
SKU:
50018255
Weight:
1.23 LBS
Shipping:
Calculated at Checkout
Carr Lane CL-8-RGF | #10-32 Thread x 1/2" Diameter Hardened Steel Round Gripper

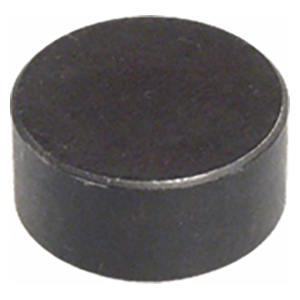

Product Information

Flat Round Grippers are hard, replaceable inserts used to provide additional wear resistance when installed in a fixture. The hardened steel grippers shown here are the most economical and impact resistant. Available in diameters from 3/8 to 1" (10 to 25mm in metric). Made in USA.

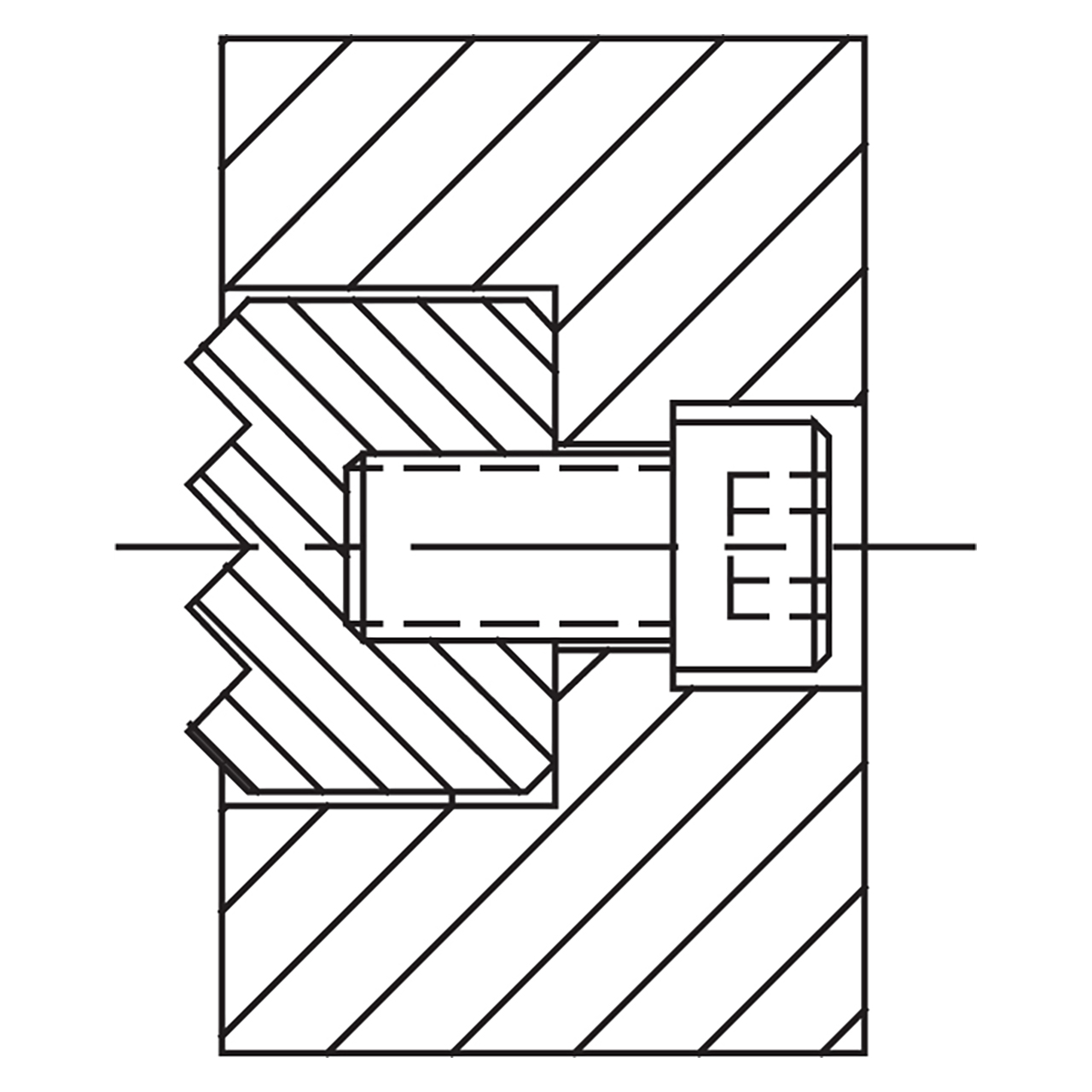

Installation

These tapped Round Grippers can be fastened from behind with a socket-head cap screw. Grippers can be recess-mounted in a flat-bottom hole, or surface mounted to use as a rest pad. Tapped Round Grippers can also be installed in Gripper Swivel Pads and Gripper Swivel Contact Bolts.

Material

MATERIALHEAT TREATFINISHDFARSRoHS
8620 SteelCarburized-HardenedBlack Oxide✔✔

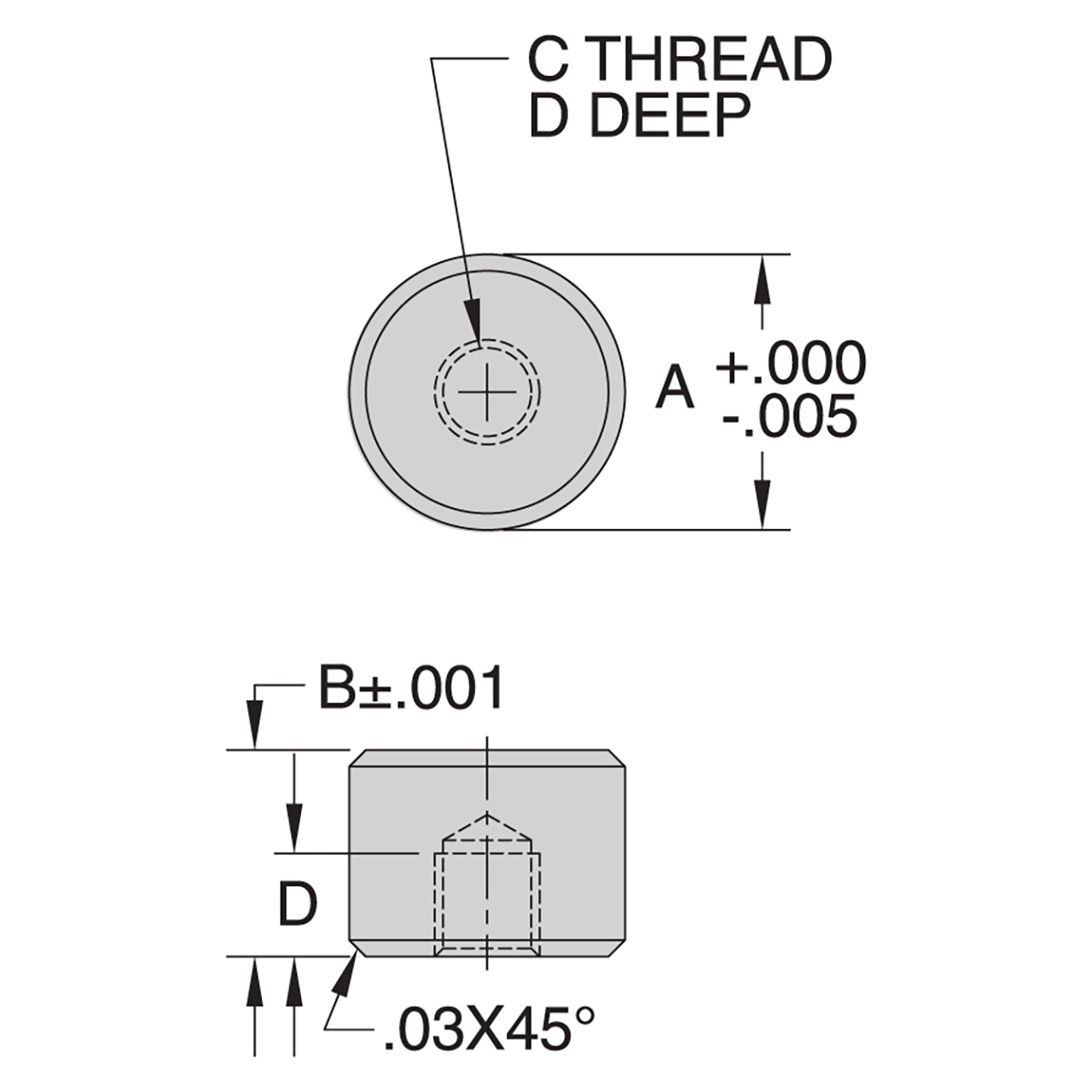

Parts Specification

Part NumberA DIAB NOMINALB ACTUALC THREADD
CL-8-RGF1/23/8.3750#10-323/16

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
