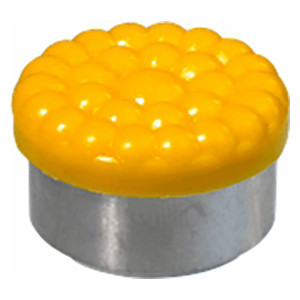

Carr Lane CL-8-RGU-1 | #10-32 Thread x 1/2" Diameter Bonded Urethane Round Gripper

Product Information

Round Grippers are replaceable inserts that provide additional holding force and/or wear resistance. The grippers shown here have a urethane surface permanently bonded to a stainless steel pad. This non-marking, non-staining urethane provides excellent protection against damage to finished workpieces. The bubbled texture of the urethane surface offers firm gripping, yet allows air to escape so that no suction is created under load. Urethane also provides excellent wear resistance, and is available in three firmnesses to suit a wide variety of applications. The stainless steel pad provides high strength and excellent corrosion resistance. Available in diameters from 3/8 to 1" (10 to 25mm in metric), each in a choice of three durometer hardnesses. Made in USA.

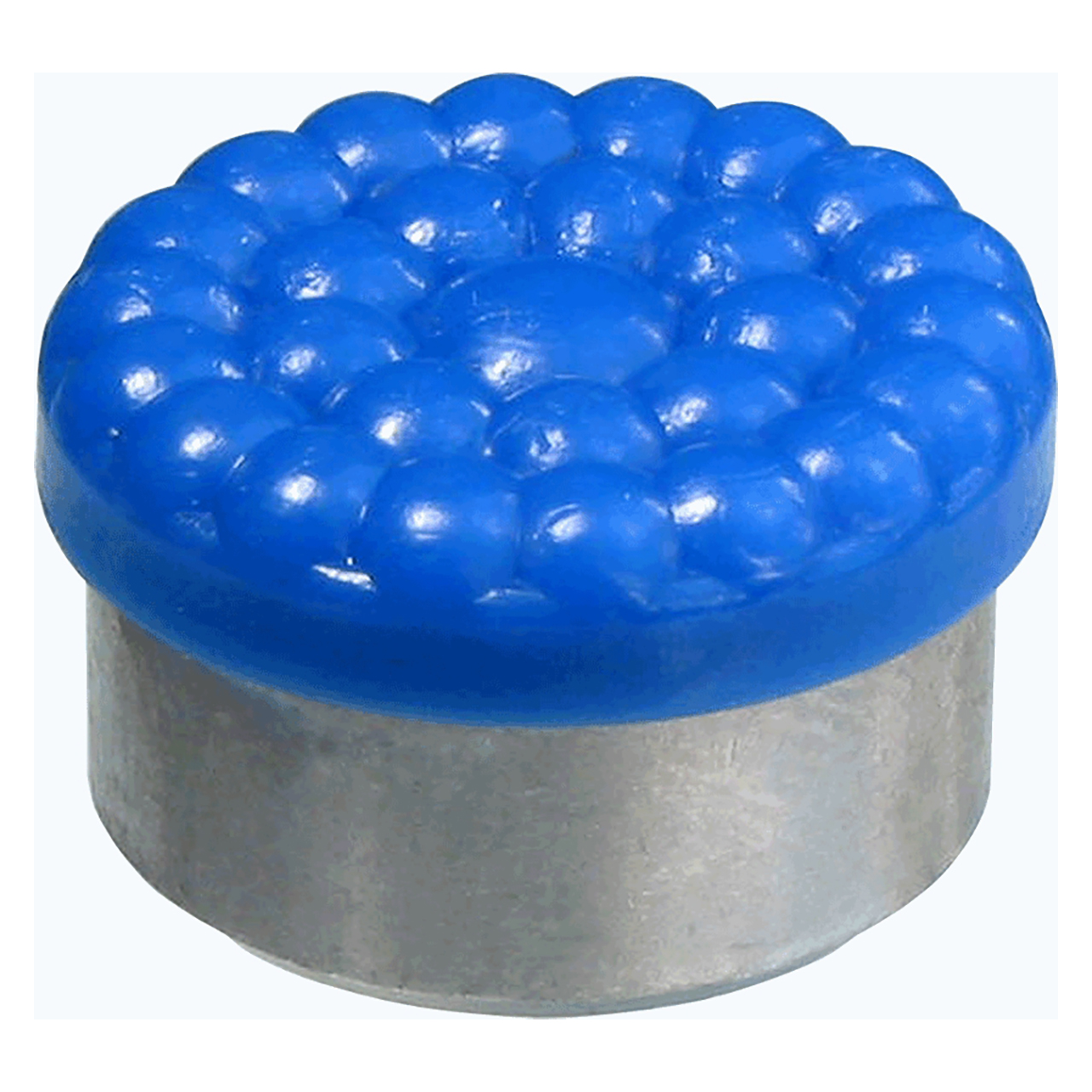

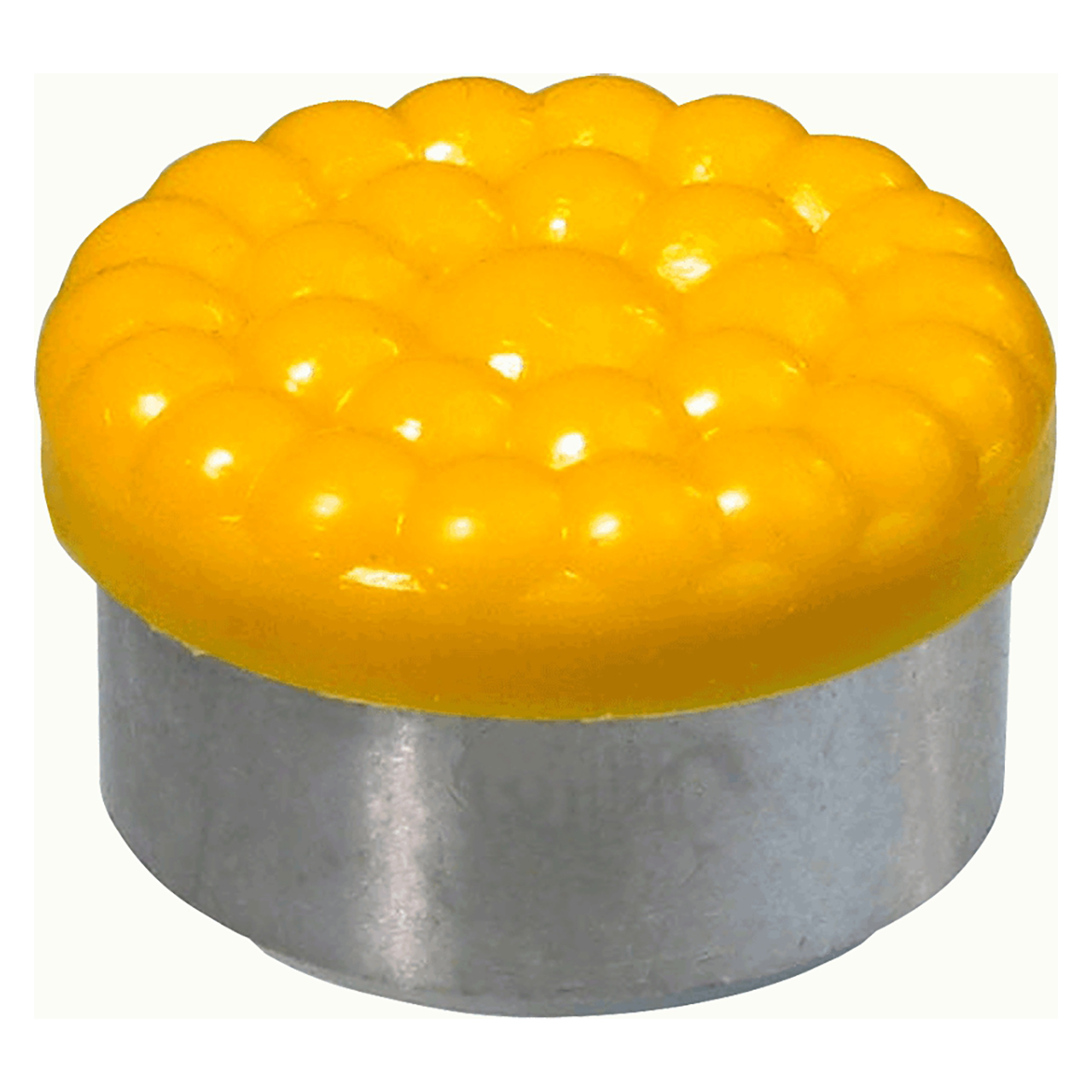

Hardness Selection

35 Durometer Yellow 60 Durometer Blue 80 Durometer Red

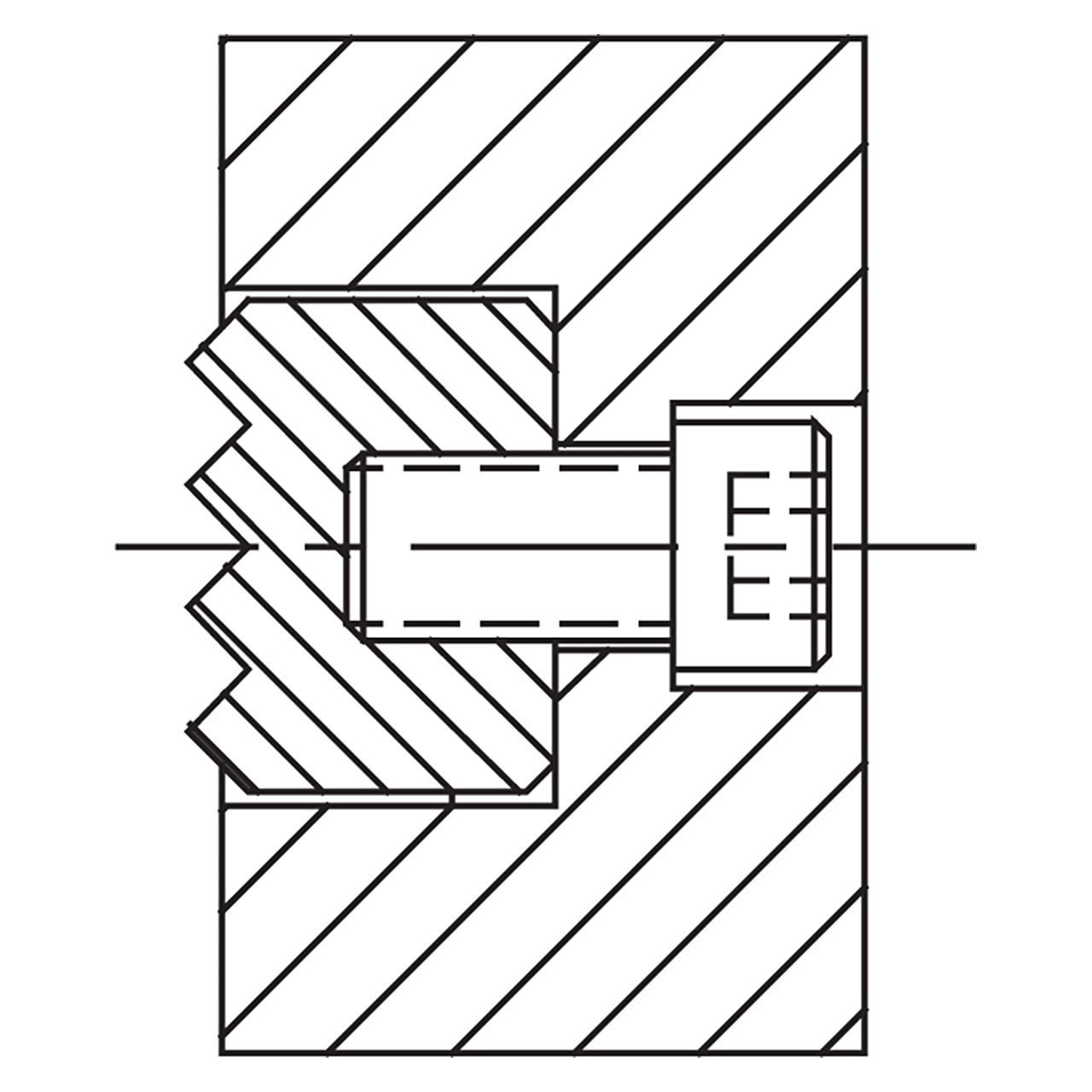

Installation

Fasten from behind with a socket-head cap screw. Grippers can be recess-mounted in a flat-bottom hole, or surface mounted to use as a rest pad. Tapped Round Grippers can also be installed in Gripper Swivel Pads and Gripper Swivel Contact Bolts.

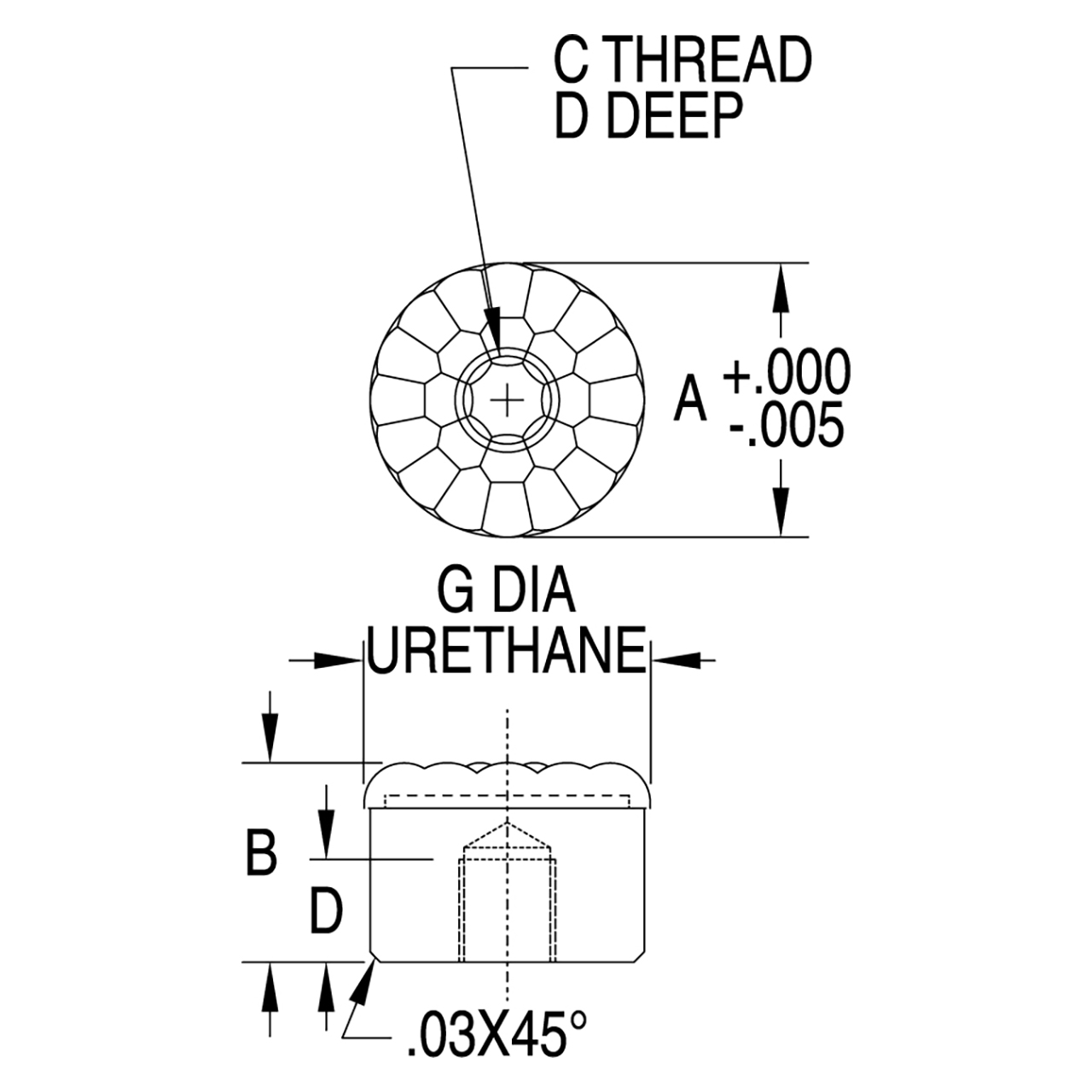

Material

Parts Specification
