Carr Lane CL-8-SLF | 1/2-13" Thread x 1-7/8" Diameter Stud Leveling Feet

Product Information

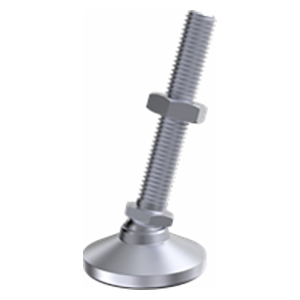

High-quality, heavy-duty levelling foot with a large-diameter pad and integral stud. Stud and swivel ball are one solid piece. Large swivel ball provides high load capacity with a 20 Degree total swivel angle. Available in thread sizes from #10-32 to 1"-8 (M6 to M20 in metric). Inch sizes are optionally available with an extra-long stud; however, this reduces load capacity due to the longer extension. Made in USA.

Application Information

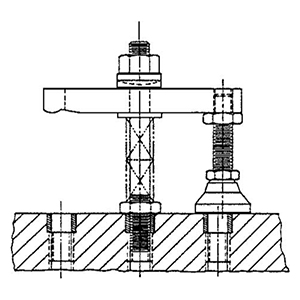

A Stud Levelling Foot can be used as a clamp rest for a Tapped-Heel Clamp Strap

Design Considerations & Safety Precautions

Rated load capacity represents safe static load with the standard stud at maximum extension, with its threads fully engaged for one stud diameter. Safety factor = 2:1. Load capacity will drop significantly with longer studs.

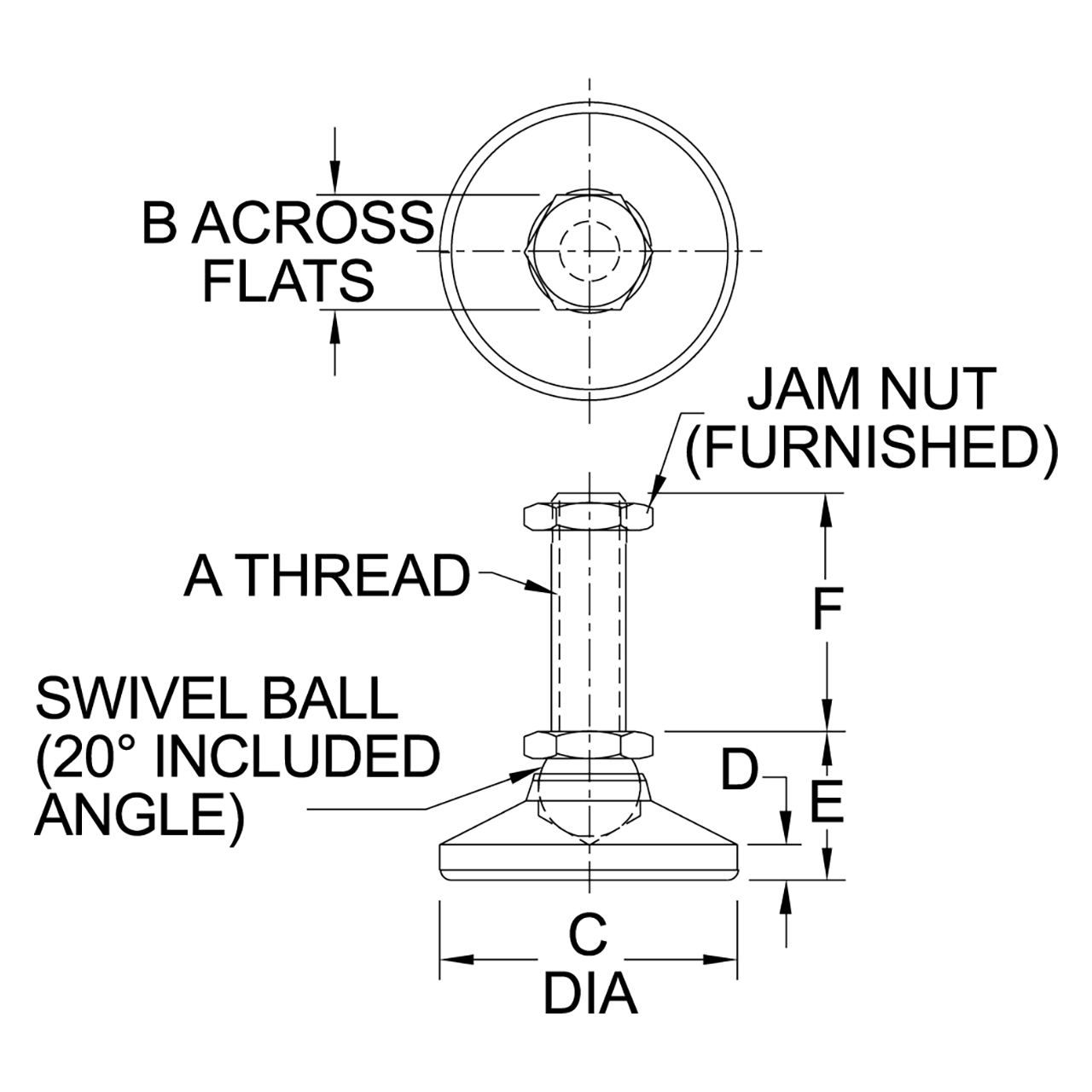

Material

Parts Specification
