Product Information

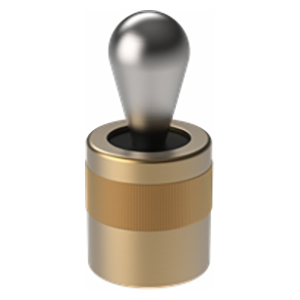

Spring Locating Pins are press-fit inserts that provide an extremely compact way to apply side force to a workpiece, for positioning or light clamping. The version shown here, with a case-hardened steel contact pin and a coil spring, is our most popular. A protective rubber seal around the contact pin keeps out dirt and chips. This type has the most travel, so it allows the most part-size variation. Available in fives sizes from 1/4" to 5/8" body diameter. Choice of light, medium, or heavy force in each size.

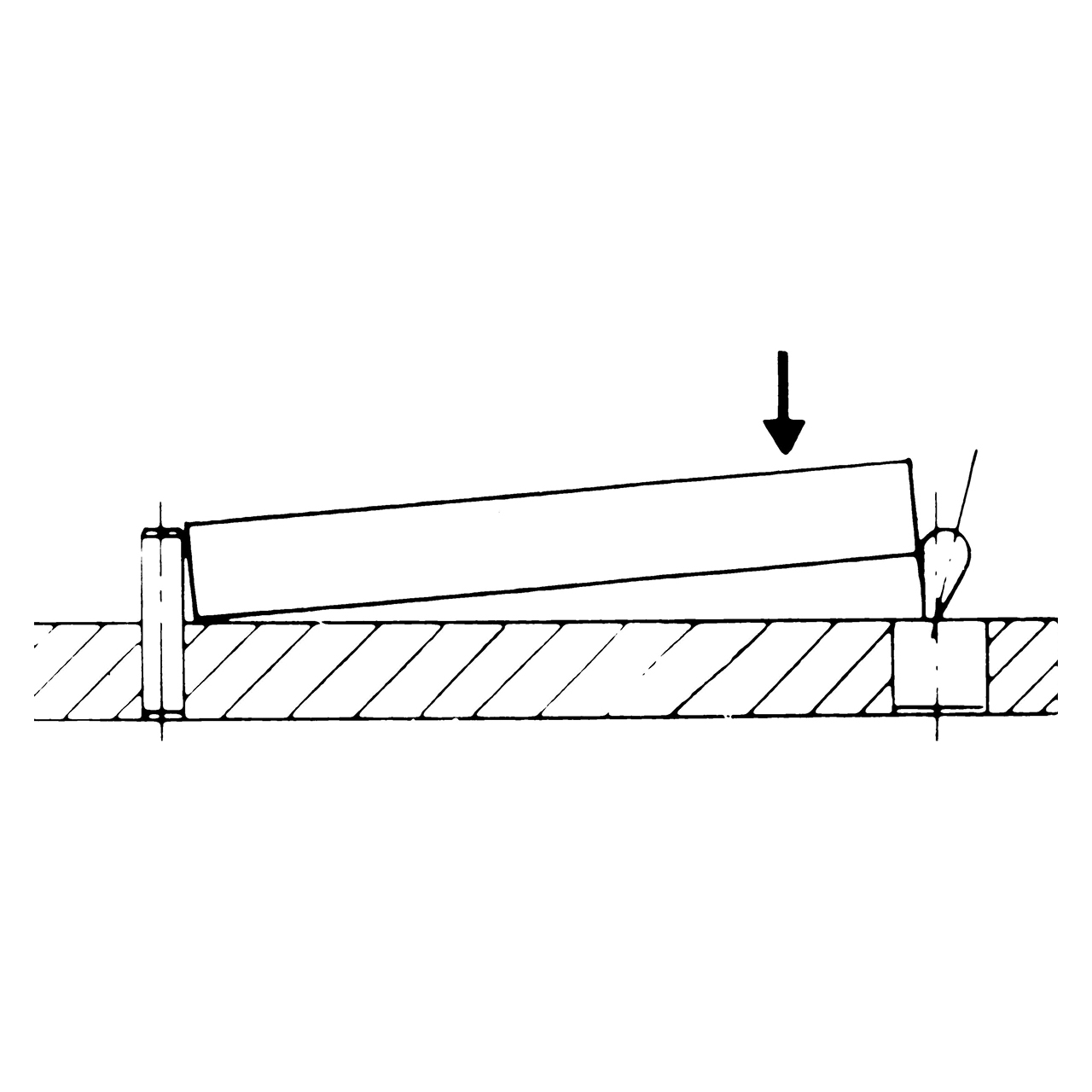

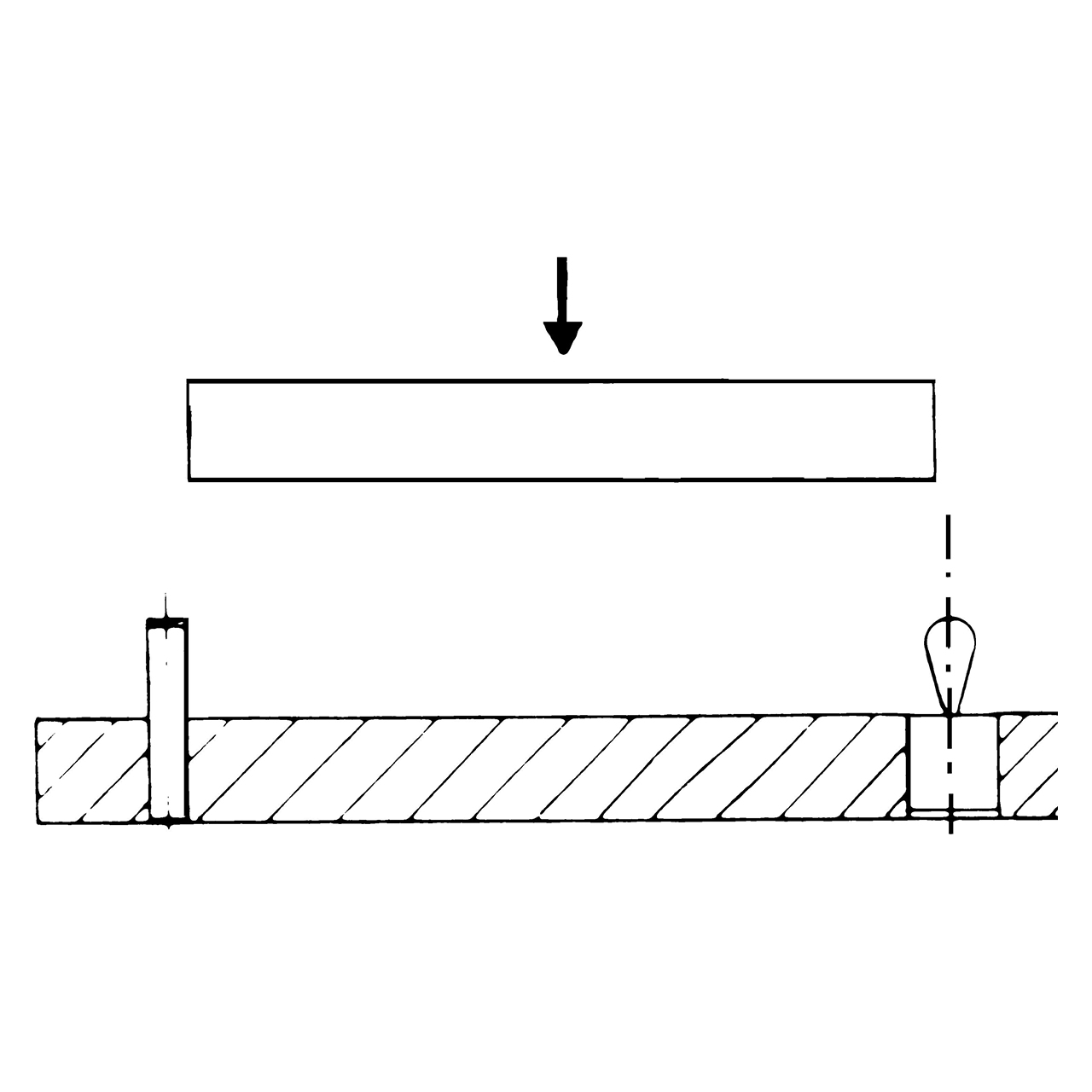

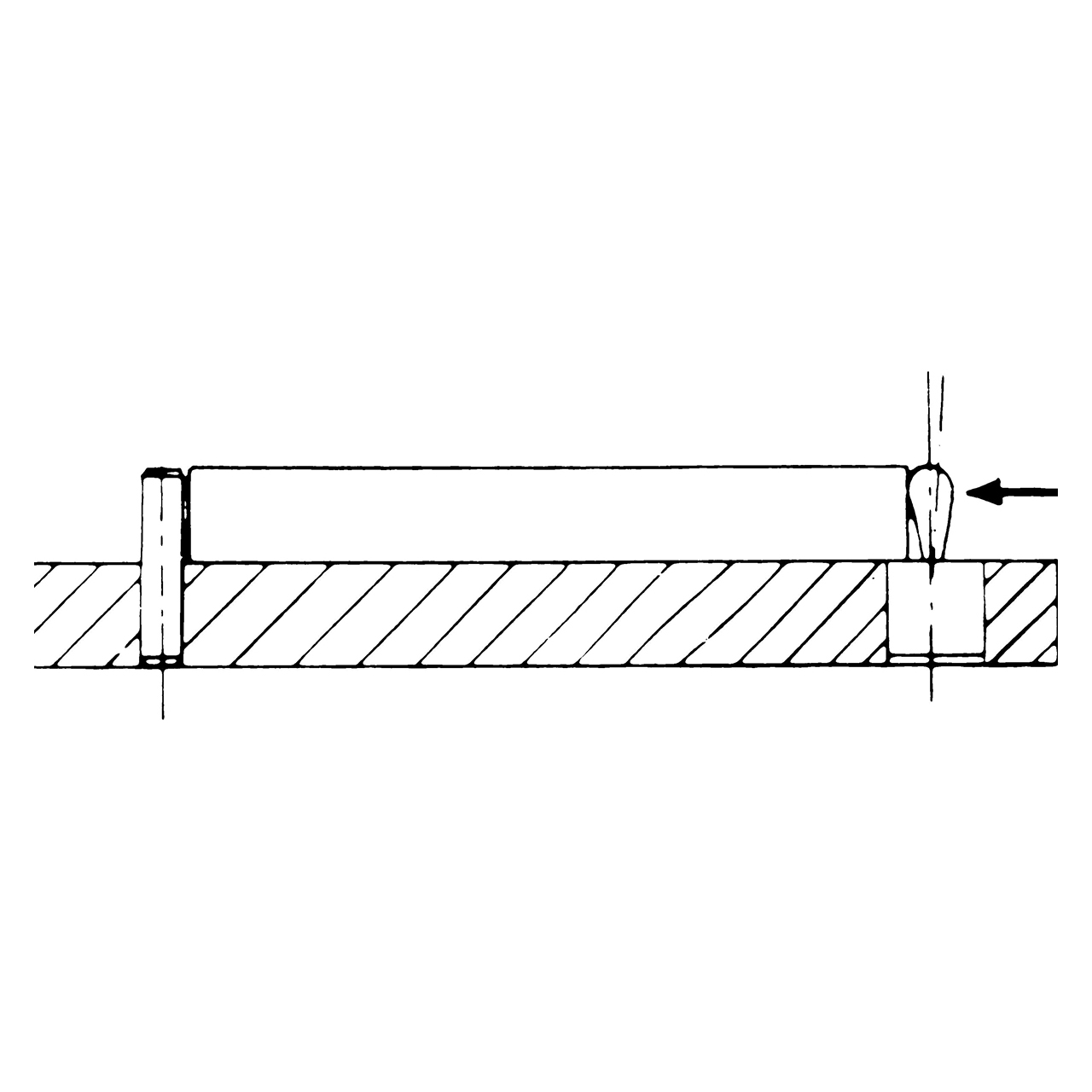

Application Information

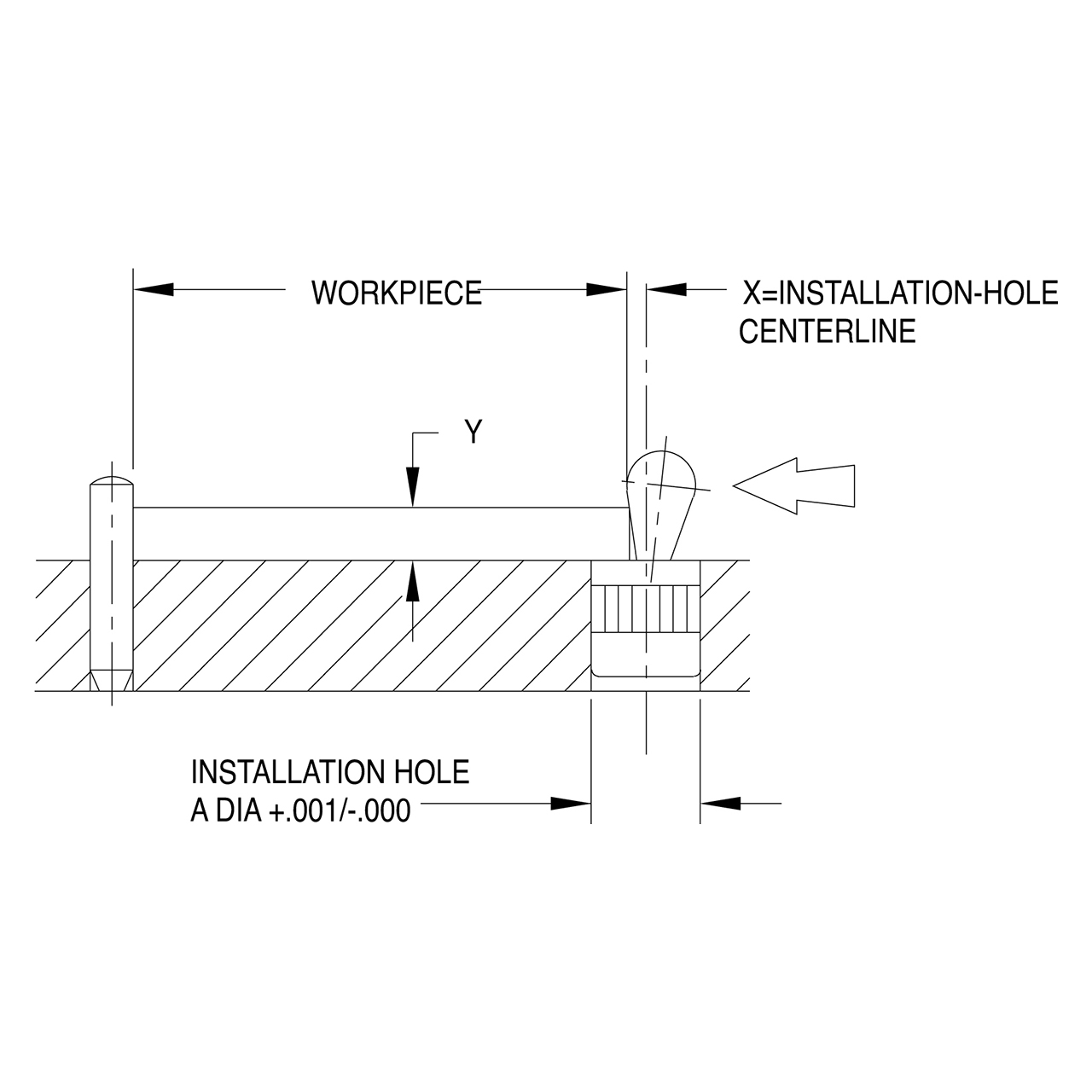

Distance to Workpiece Calculator This calculator is used to determine the appropriate distance to install a spring locating pin from a workpiece.
Application Examples
Spring Locating Pins can also be used as grippers for light clamping

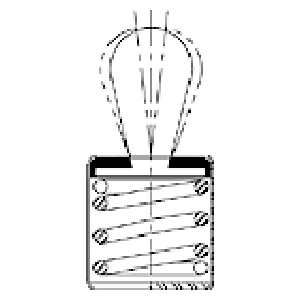

Internal View
Material
| ITEM | MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| Pin | Mild Steel | Carburized-Hardened | Zinc plated clear chromate | ✔ | ✔ |
| Spring | Music Wire | - | - | ✔ | ✔ |
| Housing | Aluminium | - | - | ✔ | ✔ |
| Seal | Rubber | - | - | ✔ | ✔ |

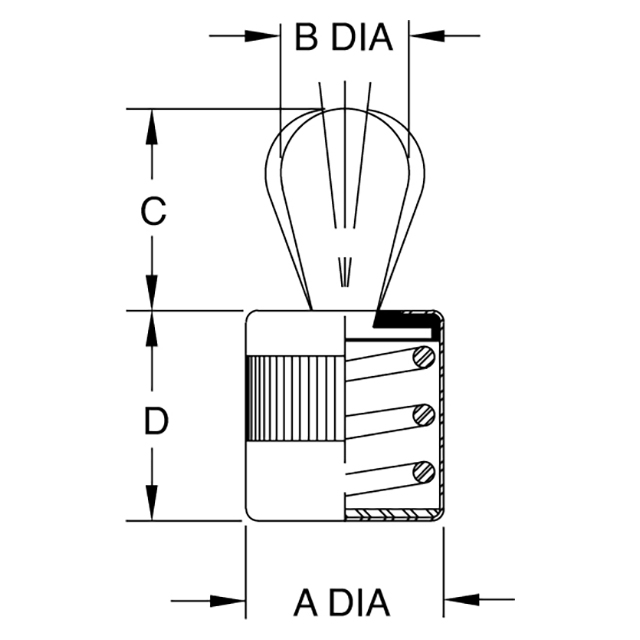

Parts Specification
| Part Number | A DIA | APPROX SIDE FORCE (lbs) | B DIA | C | D | X DIM WHEN Y EQUALS 1/16 | X DIM WHEN Y EQUALS 1/8 | X DIM WHEN Y EQUALS 3/16 | X DIM WHEN Y EQUALS 1/4 | X DIM WHEN Y EQUALS 5/16 | X DIM WHEN Y EQUALS 3/8 | X DIM WHEN Y EQUALS 7/16 | X DIM WHEN Y EQUALS 1/2 OR MORE |
| CL-8-SLP-1 | 1/2 | 11.2 | .315 | .511 | .551 | .032 | .039 | .047 | .055 | .062 | .068 | .068 | .068 |
