Carr Lane CL-8-TLPB-OS | 3/4-16" Thread x 1/2" Diameter Threaded Locking-Pin Bushing

Product Information

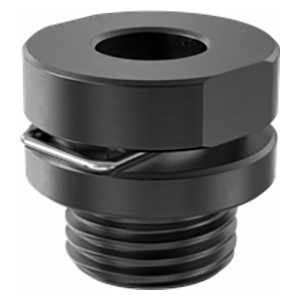

New item! Locking-Pin Bushings are equipped with a retainer spring clip on the inside diameter, for use with all types of locking/captive pins and locating screws. The threaded version shown here has an externally threaded shank, for installation in a tapped hole. This threaded design provides less locational accuracy, but is handy when captive clamping pins are used in non-locating applications. This version has an oversize ID (.040" larger than nominal size) as standard. Available for pin diameters 3/16 to 1/2" (6 to 12mm in metric). Made in USA.

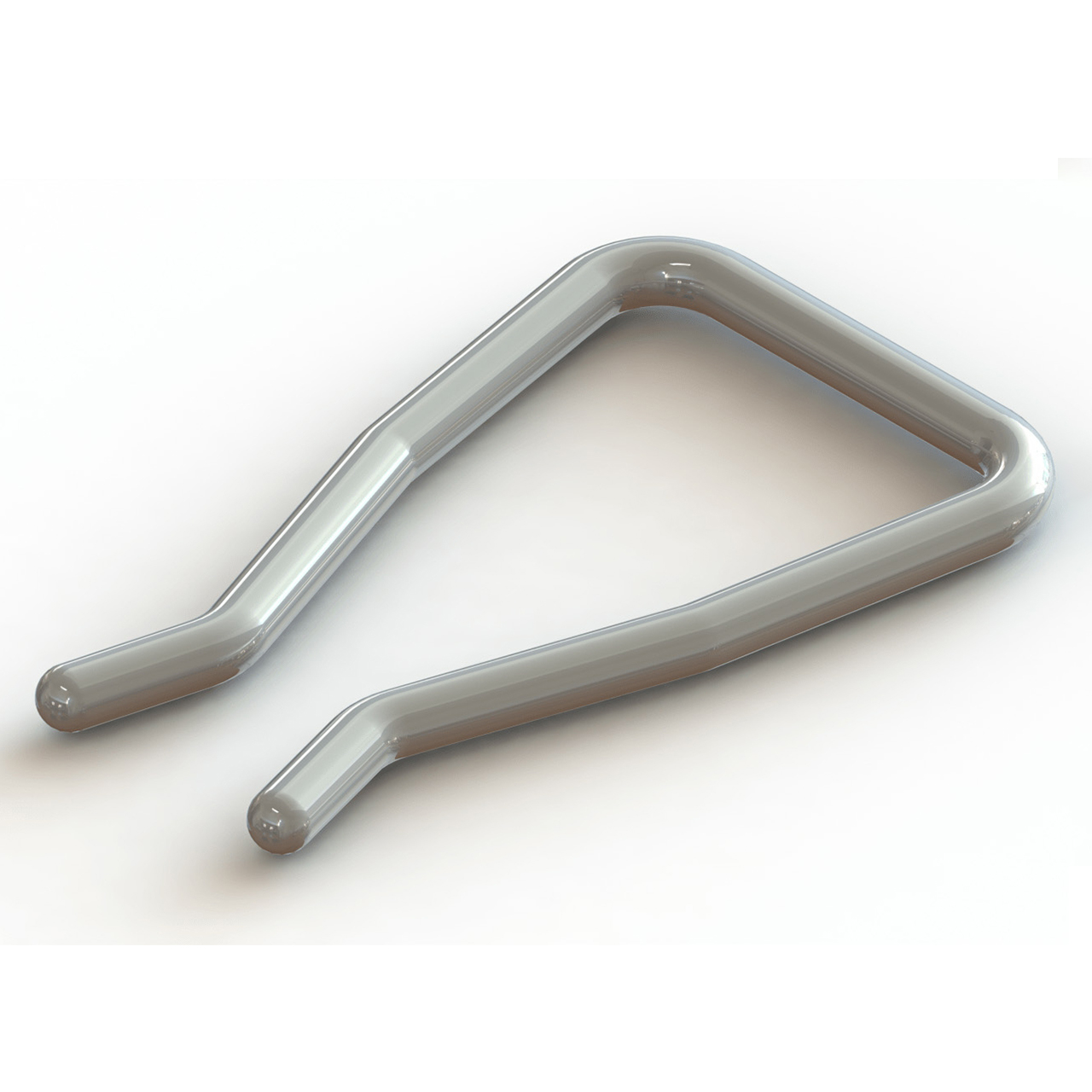

Replacement Spring Clips

Every Locking-Pin Bushing includes a spring clip, to retain its captive L Pin, T Pin, or Clamping Pin. To remove the pin from the bushing, the spring clip must first be removed; therefore replacement clips are available separately in case a clip is ever lost.

Material

Parts Specification
