Carr Lane CL-851-VTC | 1000 lbs Hold Capacity Wide Opening Toggle Clamp

Product Information

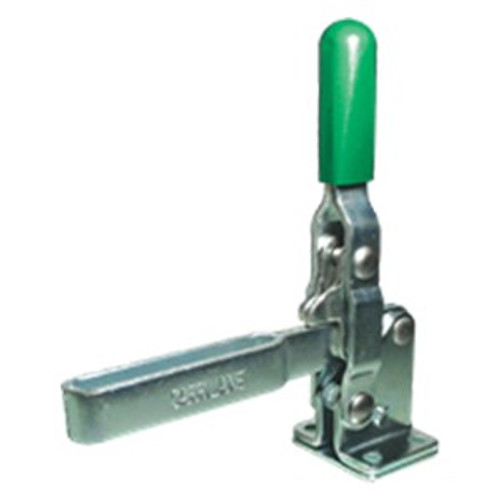

CL-850-VTCOpen Arm, Flanged Base Large, heavy-duty wide-opening clamp, available in several configurations. Arm opens 120 Degree while handle moves 67 Degree. Choose either an open arm for adjustable spindle location, or a solid arm for fixed spindle location. Choice of flanged base or straight base. Optionally available with our new safety-lock feature, and in an air-powered version (see Related Products below). 1000 lbs holding capacity.

Videos

Toggle Clamps by Carr Lane Manufacturing Toggle clamps are versatile workholding products, providing efficiency, versatility, improved ergonomics and safety. Carr Lane Mfg.’s line of toggle clamps is cost-effective, reliable and are easy for any user to pick up and use. Within the Carr Lane Mfg. online catalog, you’ll find an exceptional collection of heavy duty toggle clamps including horizontal-handle toggle clamps, vertical handle toggle clamps, plunger-style toggle clamps, latch action toggle clamps, toggle pliers, air-powered toggle clamps and a complete line of toggle clamp accessories.

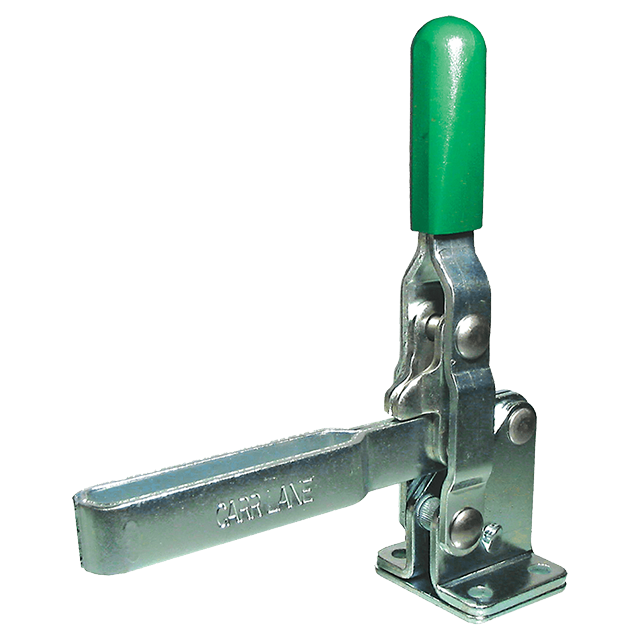

Models Available (Open Arm)

CL-850-VTCOpen Arm, Flanged Base CL-851-VTCOpen Arm, Straight Base

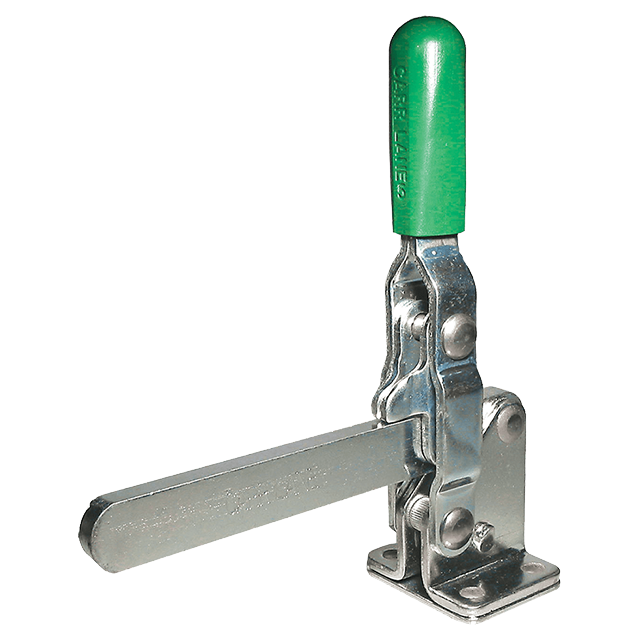

Models Available (Solid Arm)

CL-750-VTCSolid Arm, Flanged Base CL-751-VTCSolid Arm, Straight Base

Clamping Action

Clamped Position Open Position

Accessories

Accepts any 1/2-13 or M12 spindle (see Related Products below). Open-arm version supplied with (2) CL-1213-TW flanged washers. Solid-arm version supplied with CL-113000-BR weld-on bolt retainer.

Material

Parts Specification
