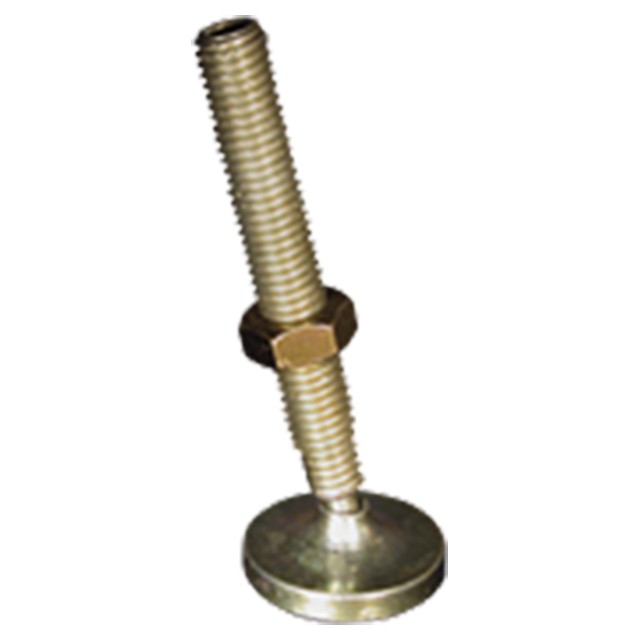

Carr Lane CLM-1-JFL | M12 Thread x 1.75mm Pitch Jig Feet Leveling

Jig Feet Leveling

High-quality, medium-duty leveling foot with a removable pad and a handy hex socket that allows convenient adjustment from the stud end. The pad rotates and pivots freely with a 20° total swivel angle. Made in USA.

Application Information

This leveling foot has a hex socket that also allows using it as a screw clamp.

Swivel Foot

These leveling feet use the patented left-hand-thread swivel-foot system. The ball end of the body screws into the foot for easy installation and removal. Once the ball threads pass beyond the foot threads, the foot can rotate and pivot freely (20° total angle). Foot threads are left-hand to positively prevent accidental backout during use.

Design Considerations & Safety Precautions

Rated load capacity represents safe static load with the standard stud at maximum extension, with its threads fully engaged for one stud diameter. Safety factor = 2:1. Load capacity will drop significantly with longer studs.

Material

Parts Specification
