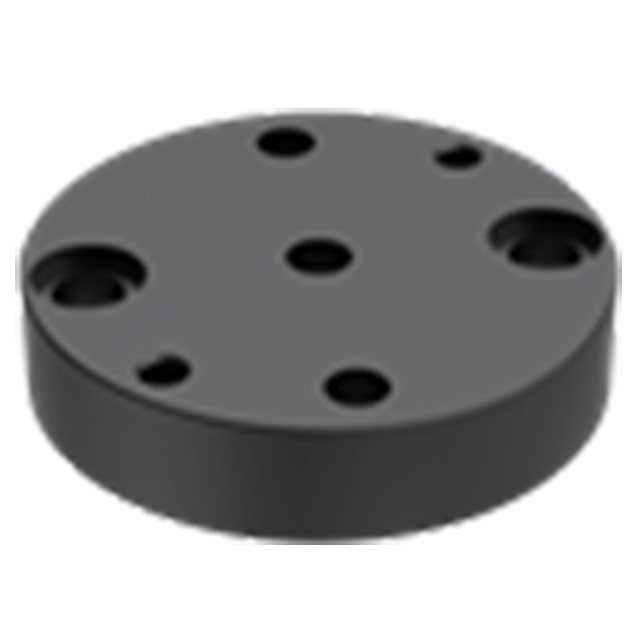

Reversible Construction Ball Pad Metric
Reversible round pad for mounting a Construction Ball. This precision reversible round pad can be flipped over in order to mirror a fixture. TheseĀ round pads should be fastened with two ultra-low-profile socket-head cap screws, then doweled in place to maintain accurate location. The Construction Ball can beĀ secured by installing a m5 setscrew (not furnished) in the crosshole.
Material
| Steel | |||||
| Material | Heat Treat | Finish | DFARS | RoHS | |
| 1144 Steel or equivalent | - | Black Oxide | Yes | Yes | |
Parts Specification
| Adianominal | Adiaactual |
| 10mm | 10.015 / 10.000 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Diameter (Inch):
25/64"
Diameter (Decimal Inch):
0.3937"
Diameter (mm):
10.00mm
