Carr Lane CLM-10-TDP-40-S | 10mm Diameter x 40mm Grip Length Threaded Detent Pin

$10.17
Brand:
Carr Lane
Diameter (mm):
10.00mm
Grip Length (mm):
40.00mm
Grip Length (Decimal Inch):
1.5748"
Grip Length (Inch):
1-37/64"
Diameter (Decimal Inch):
0.3937"
Diameter (Inch):
25/64"
SKU:
50013252
Weight:
0.07 LBS
Shipping:
Calculated at Checkout

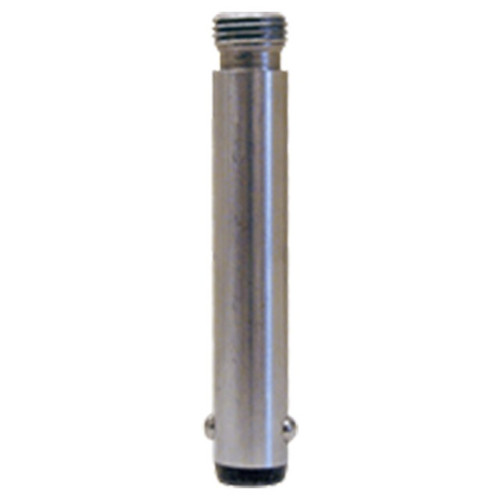

Threaded Detent Pins

have one end threaded for a knob handle. These quick-release alignment pins have a solid shank and spring-loaded locking balls. Locking balls hold the pin in place by spring force (not positive locking like a Ball Lock Pin). Simply push the pin to insert, and pull to remove. Made in USA. Knobs can be permanently secured with thread-locking adhesive if desired (an adhesive such as Loctite 263 is suitable for most applications).

Application Information

The pin's threaded end accepts virtually any type of knob handle.

Material

Shank > 300-series stainless. Spring > 17-7PH/302 stainless. Balls > 440C stainless. DFARS and RoHS compliant.

Parts Specification

A Diameter Nominal (mm)A Diameter Actual (mm)Grip Length (mm)B (mm)C (mm)D ThreadThread Pitch (mm)F (mm)
10mm9.95mm40mm11.45mm9.90mmM81.25mm10mm
