Carr Lane CLM-12-LFPM-15-S | 12.00mm Diameter x 15.00mm Grip Length Lifting Pin

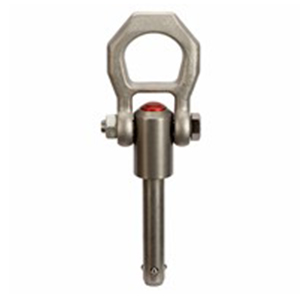

Product Information

Stainless Steel Lifting Pins are corrosion-resistant single-acting Ball Lock Pins with a solid, one-piece body and four balls for high tension loads. Positive locking until released by pushing the button. Sturdy forged shackle for heavy lifting. Available in shank diameters 1/4, 3/8, and 1/2", each in a choice of several standard grip lengths. Made in Germany.

Technical Information

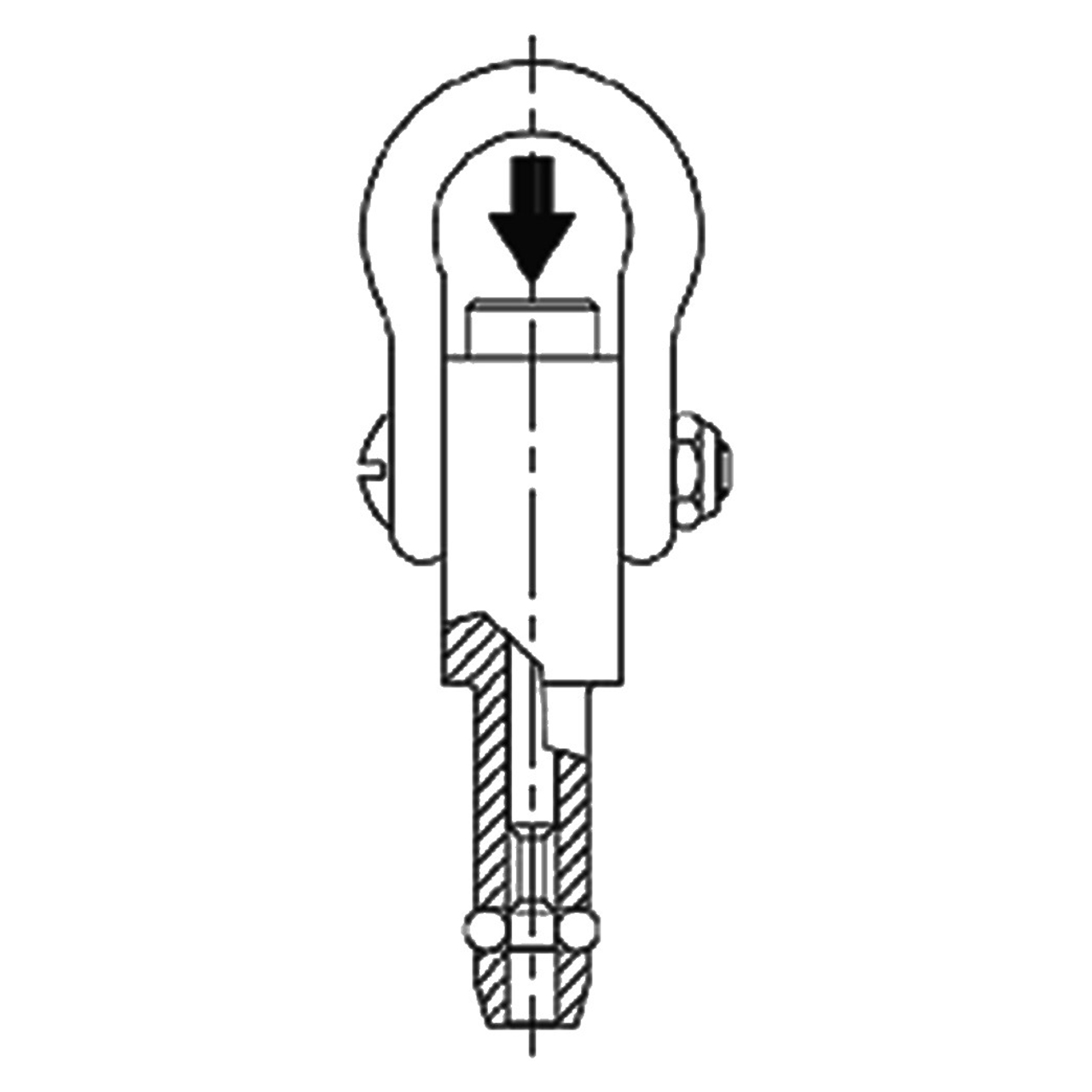

Ball Lock Pins are positive locking until released by pushing the button, which moves the center spindle forward to allow the balls to retract. Click here for Hoist-Ring Safety Precautions.

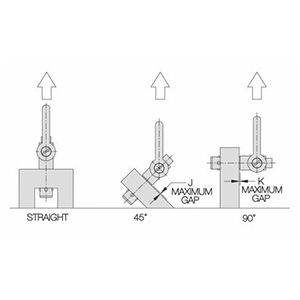

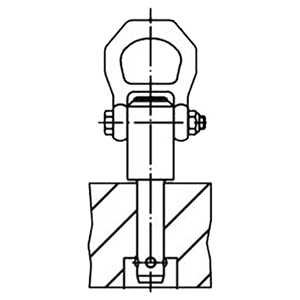

Application Information

See Technical Data table below

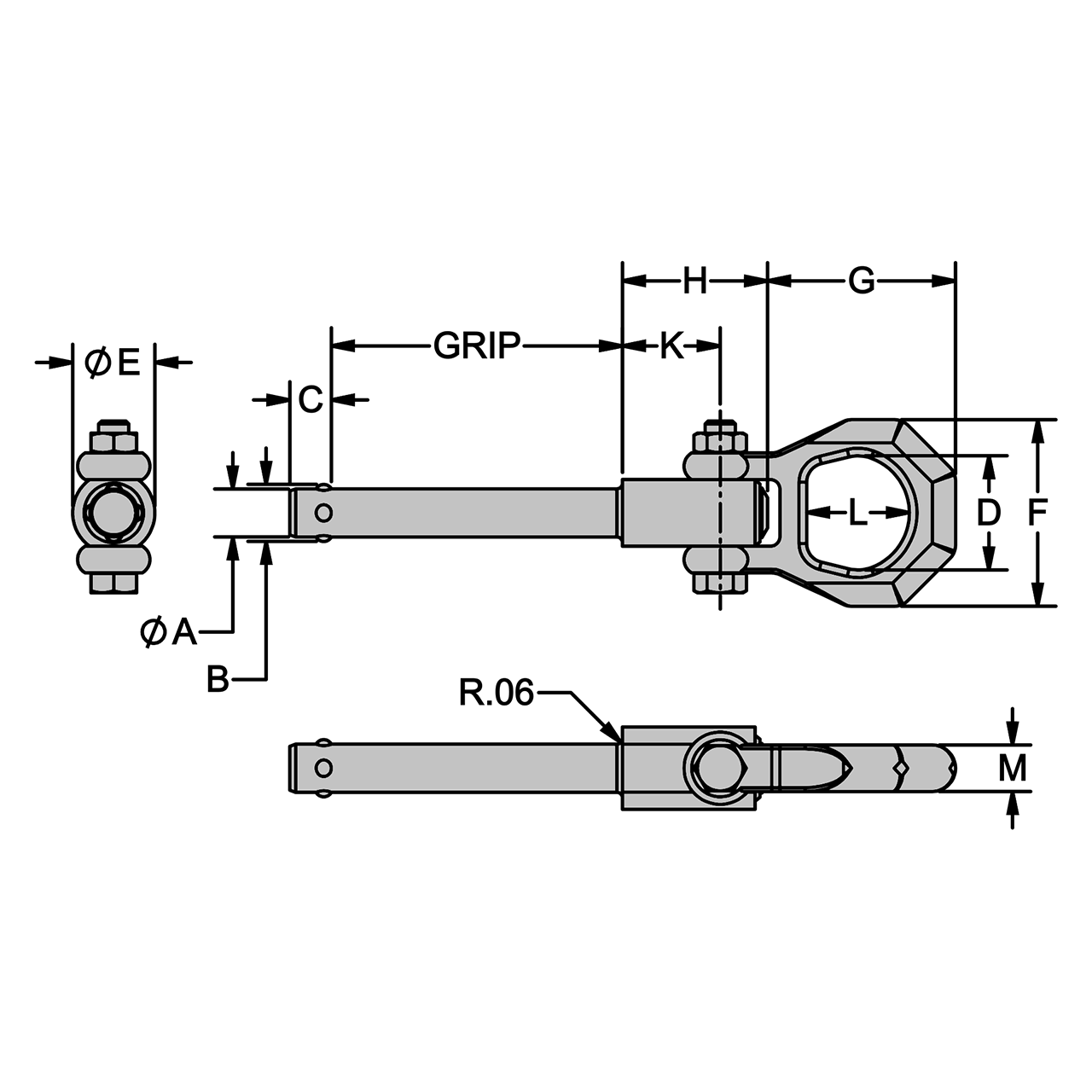

Material

Parts Specification
