Product Information

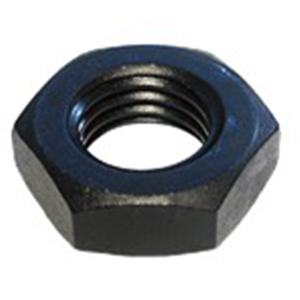

High-quality heavy-hex jam nut. Available in steel with thread sizes from #10-32 to 1"-8 (M6 to M24 in metric), and in stainless steel with thread sizes from #8-32 to 3/8-16 (M4 to M20 in metric). Many inch sizes are also available with fine thread pitch.
Material
| Steel | |||||
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS | |
| Mild Steel | - | Black Oxide | ✔ | ✔ | |
| Stainless Steel | |||||
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS | |
| 300-Series Stainless Steel | - | Passivated | ✔ | ✔ | |

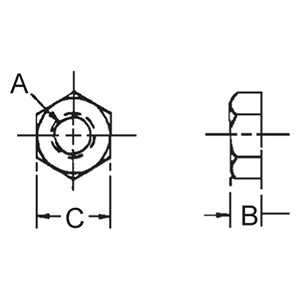

Parts Specification
| Part Number | A THREAD | THREAD PITCH (mm) | B (mm) | C (mm) |
| CLM-16-JN-S-PACKOF5 | M16 | 2 | 8 | 24 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Thread Size:
M16
Pitch (Inch):
5/64"
Pitch (Decimal Inch):
0.0800"
Pitch (mm):
2.00mm
