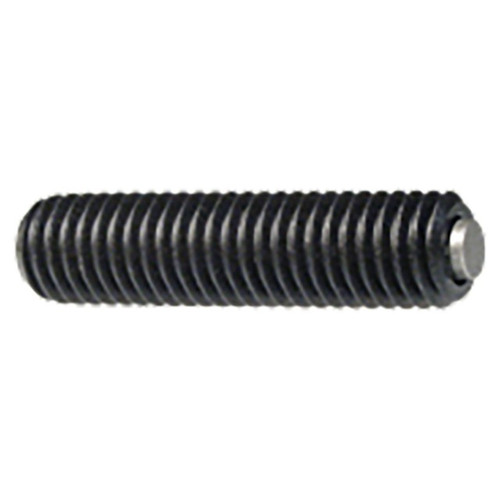

Gripper Swivel Screws
Screw clamp with a flat, hardened tool steel swivel ball. A positive stop prevents the ball from swiveling too far. Made in USA.
Application Information
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
| Swivel Ball | High-speed tool steel | - | Black Oxide | Yes | Yes |
Parts Specification
| A Thread | Thread Pitch (mm) | B (mm) | C Diameter (mm) | D (mm) | G |
| M16 | 2mm | 25mm | 8mm | 8mm | 12° |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Pitch (Inch):
5/64"
Pitch (Decimal Inch):
0.0787"
Pitch (mm):
2.00mm
Thread:
M16
