Product Information

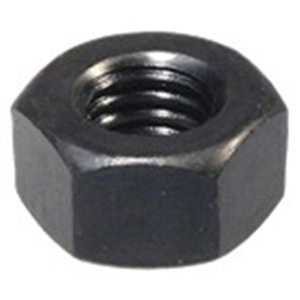

High-quality heavy-hex nut. Available in steel with thread sizes from 1/4-20 to 1-1/4"-7 (M6 to M30 in metric), and in stainless steel with thread sizes from 1/4-20 to 3/4-10. Many inch sizes are also available with fine thread pitch.
Material
| Steel | |||||
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS | |
| Mild Steel | - | Black Oxide | ✔ | ✔ | |
| Stainless Steel | |||||
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS | |
| 300-Series Stainless Steel | - | Passivated | ✔ | ✔ | |
Parts Specification

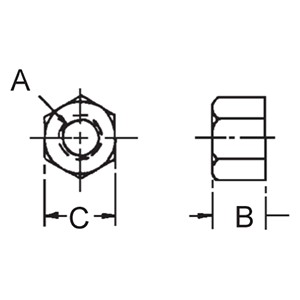

| Part Number | A THREAD | THREAD PITCH (mm) | B (mm) | C (mm) |
| CLM-20-HN-PACKOF5 | M20 | 2.5 | 16 | 30 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Thread Size:
M20
Pitch (Inch):
3/32"
Pitch (Decimal Inch):
0.1000"
Pitch (mm):
2.50mm
