Carr Lane CLM-23-THA-HK | M16 Thread x 2.00mm Pitch Tapped-Heel Clamp Strap

Product Information

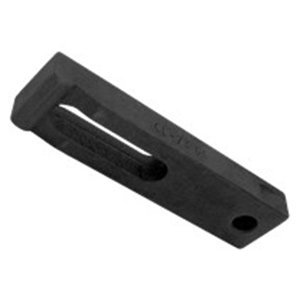

Heavy-duty steel version of our Tapped-Heel Clamp Straps, with a radius nose to provide firm workpiece contact. These clamp straps have a tapped heel that accepts a clamping screw or adjustable rear support. When used with a clamping screw, clamp by tightening the screw. When used with a rear support, clamp by tightening the centre nut. An indentation at the rear of each side provides a secure finger grip for retracting the clamp. Available to fit stud sizes 1/4-20 to 3/4-10 (M6 to M20 in metric), each in a choice of strap lengths. Made in USA. This clamp strap can be ordered by itself, or in a complete clamp assembly. The available assemblies are:          -HH     Assembly with Hex-Head Clamping Screw          -HK     Assembly with Hand-Knob Clamping Screw          -LF      Assembly with Levelling Foot          -OP     Assembly with Clamp Rest

Application Information

Tapped-Heel Clamp Straps have a tapped hole that accepts either a clamping screw for use with a slotted guide block, as shown here, or an adjustable rear support.

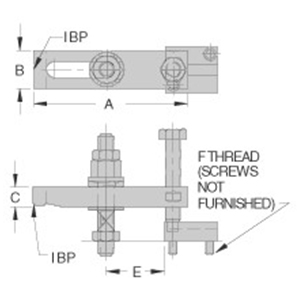

Assembly with Hex-Head Clamping Screw (-HH)

This assembly includes a Tapped-Heel Clamp Strap plus the following items:          Hex-Head Clamping Screw          Guide Block          Spherical Nut & Washer          Clamping Stud          Clamp Spring          Flat Washer          Jam Nuts (2)

Assembly with Hand-Knob Clamping Screw (-HK)

This assembly includes a Tapped-Heel Clamp Strap plus the following items:          Hand-Knob Clamping Screw          Guide Block          Spherical Nut & Washer          Clamping Stud          Clamp Spring          Flat Washer          Jam Nuts (2)

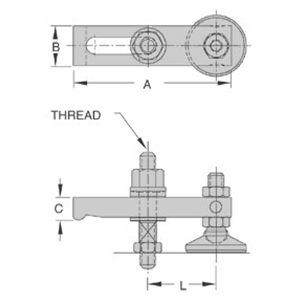

Assembly with Levelling Foot (-LF)

This assembly includes a Tapped-Heel Clamp Strap plus the following items:          Stud Levelling Foot          Spherical Nut & Washer          Clamping Stud          Clamp Spring          Flat Washer          Jam Nut

Assembly with Clamp Rest (-OP)

This assembly includes a Tapped-Heel Clamp Strap plus the following items:          Oval-Point Clamp Rest          Spherical Nut & Washer          Clamping Stud          Clamp Spring          Flat Washer          Jam Nuts (2)

Material

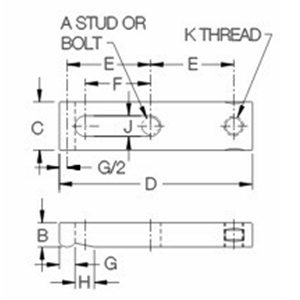

Parts Specification
