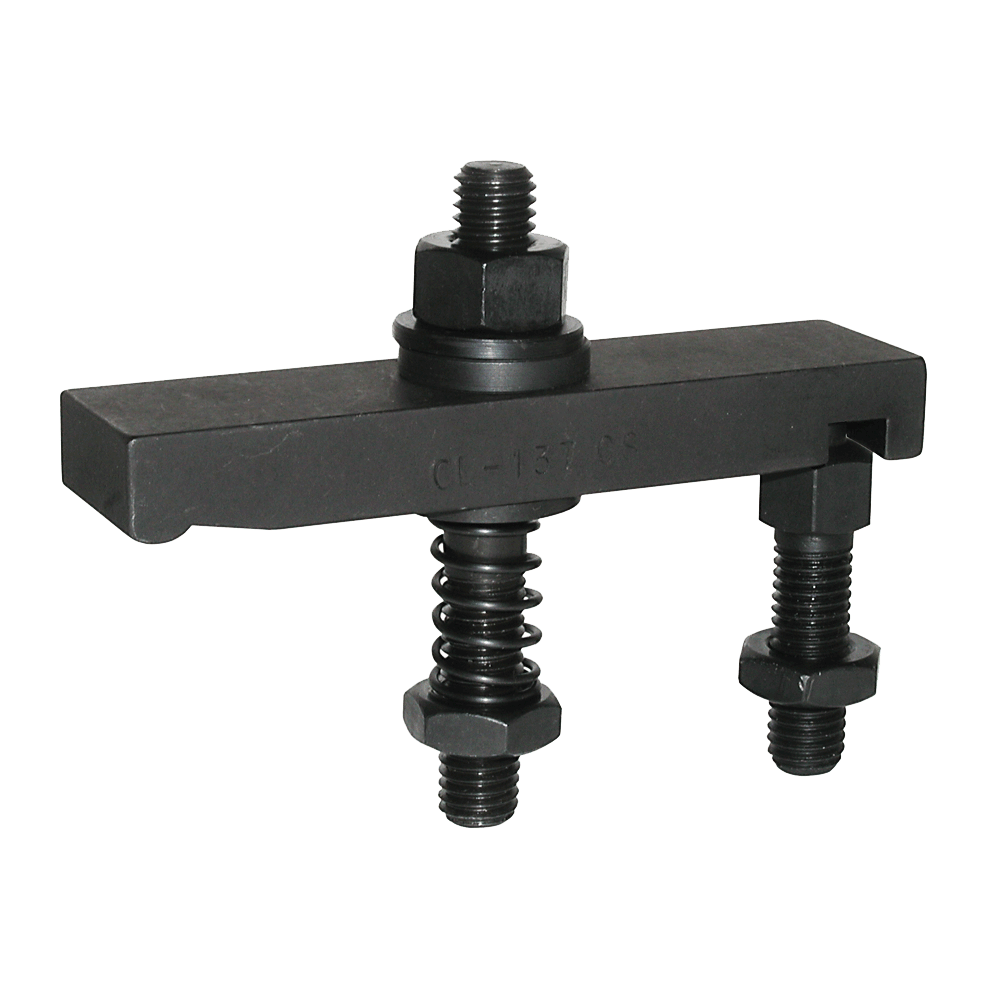

Carr Lane CLM-24-SHA-1 | M16 Thread x 2mm Pitch Slotted-Heel Clamp Strap

$54.44 $52.81
(You save $1.63)
Brand:
Carr Lane
Pitch (Inch):
5/64"
Pitch (Decimal Inch):
0.0787"
Pitch (mm):
2.00mm
Thread:
M16
interval quantity:
1
SKU:
50016976
UPC:
Weight:
2.90 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Related Products

Slotted-Heel Clamp Strap Assembly

Heavy-duty steel version of the Slotted-Heel Clamp Straps, with a radius nose to provide firm workpiece contact. These clamp straps have a slot underneath to slide straight back for clear loading. An indentation at the rear of each side provides a secure finger grip for retracting the clamp. Made in USA.

Application Information

Slotted-Heel Clamp Straps have a slot underneath to slide straight back for clear loading.

Assembly with Spherical Nut & Washer (-1)

This clamp assembly includes a Slotted-Heel Clamp Strap plus the following Items:

  • Spherical Nut & Washer
  • Clamping Stud
  • Clamp Spring
  • Flat Washer
  • Jam Nut
  • Clamp Rest

Material

MaterialHeat TreatFinishDFARSRoHS
1018 SteelCarburized HardenedBlack OxideYesYes

Parts Specification

Thread SizeThread Pitch (mm)A (mm)B (mm)C (mm)E (mm)
M162mm152mm38mm22mm68.5mm
