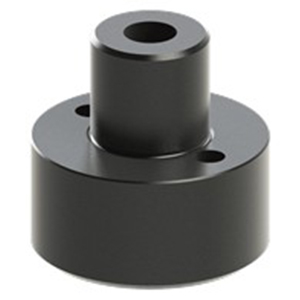

Center Locating Keys are used to precisely center a fixture on a rotary table. They are used for mounting Quintus Quick-Change Risers. Riser Blocks, and Round Tooling Plates, which all have a standard 25mm center hole. To accomplish this, all Center Locating Keys have a 25mm upper diameter, but have one of four different designs so that the bottom diameter fits the rotary table's center hole. The Type 4 keys shown here are available with bottom diameters 2", 3-1/4", 50mm, 60mm, 70mm, and 80mm. Made in USA.
Material
| MATERIAL | HEAT TREAT | FINISH | DFARS | RoHS |
| 1144 Steel | Heat Treated Rc 50-55 | Black Oxide | ✔ | ✔ |
Parts Specification

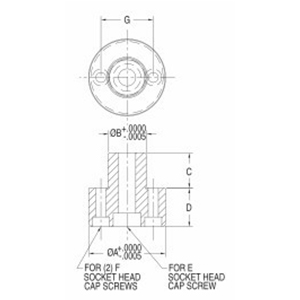

| Part Number | A DIA NOMINAL | A DIA ACTUAL | B DIA NOMINAL | B DIA ACTUAL | C | D | E SOCKET-HEAD CAP SCREW (Order separately below – 1 Required) | F SOCKET-HEAD CAP SCREW (Order separately below – 2 Required) | G |
| CLM-25-CLK-3.2500 | 3-1/4 | 3.2500 | 25mm | .9843 | .91 | .98 | CLM-10x45-SHCS | CLM-6x25-SHCS | 1.339 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
