Extruded Hand Knob Swivel Feet
Extruded Hand knob assembly with a removable swivel foot. Clamping screw is securely pinned in the knob. F-prong design provides a firm grip for applications requiring quick tightening and high torque. Made in the USA.
Material
Item | Material | Heat Treat | Finish | DFARS | RoHS |
Knob | Extruded Aluminum | - | Green Anodize | - | Yes |
Screw | 1215 Steel | - | Zinc Plated Clear Chromate | Yes | Yes |
Steel Foot | 1215 Steel | - | Zinc Plated Clear Chromate | Yes | Yes |
Delrin Foot | White Delrin 500 | - | - | Yes | Yes |

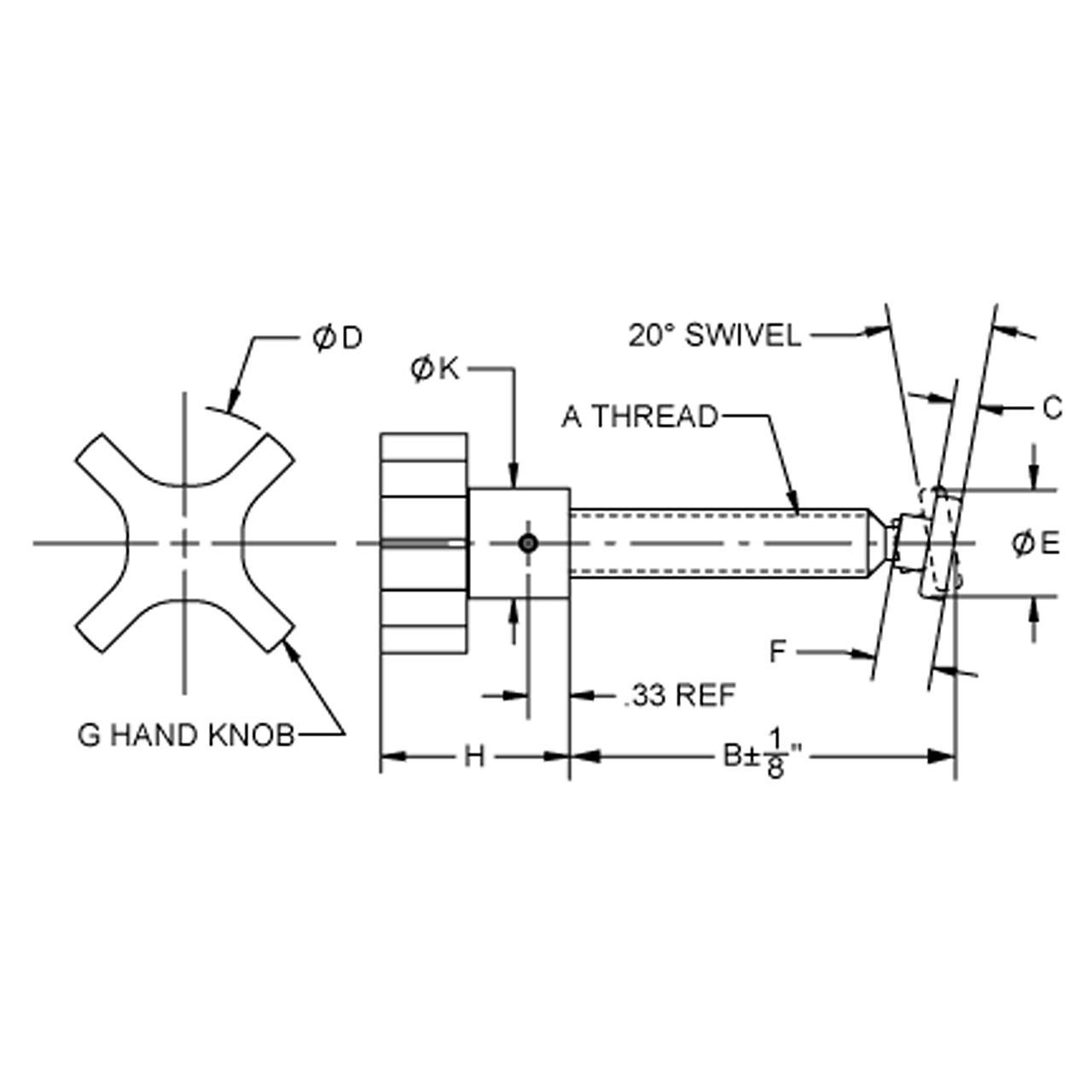

Parts Specification
A Thread | Thread Pitch (mm) | B (mm) | C (mm) | D Diameter (mm) | EDiameter (mm) | F (mm) | G | H (mm) | KDiameter (mm) |
M10 | 1.5mm | 50mm | 4.8mm | 51mm | 14.5mm | 11mm | CLM-10T-HKE-30 | 35mm | 21mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
