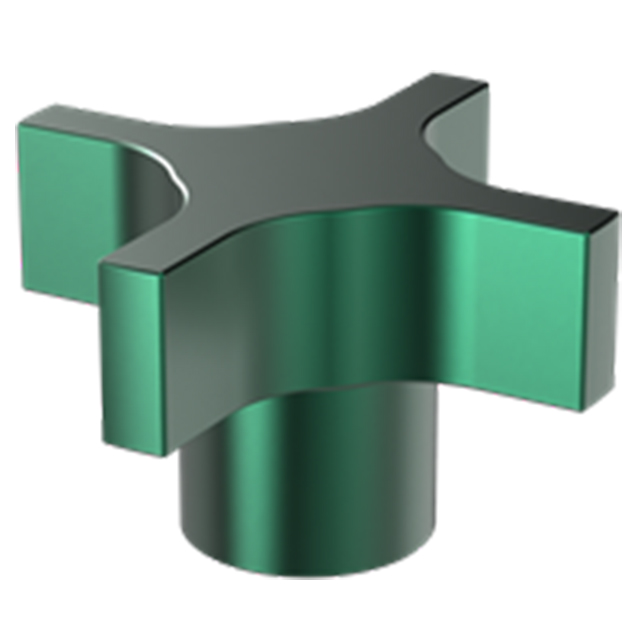

Extruded Hand Knob
Extruded, easy-to-grip aluminum clamping knob. Four-prong design provides a firm grip for applications requiring quick tightening and high torque.
Material
| Material | Heat Treat | Finish | RoHS |
| Extruded Aluminum | Yes | Green Anodize | Yes |
Parts Specification
| A Diameter (mm) | B Diameter (mm) | C (mm) | D (mm) | E Thread | Thread Pitch (mm) | E Thread Depth (mm) |
| 44.5mm | 19mm | 28.5mm | 15mm | M6 | 1mm | 19mm |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Carr Lane
Ships:
From Manufacturer
