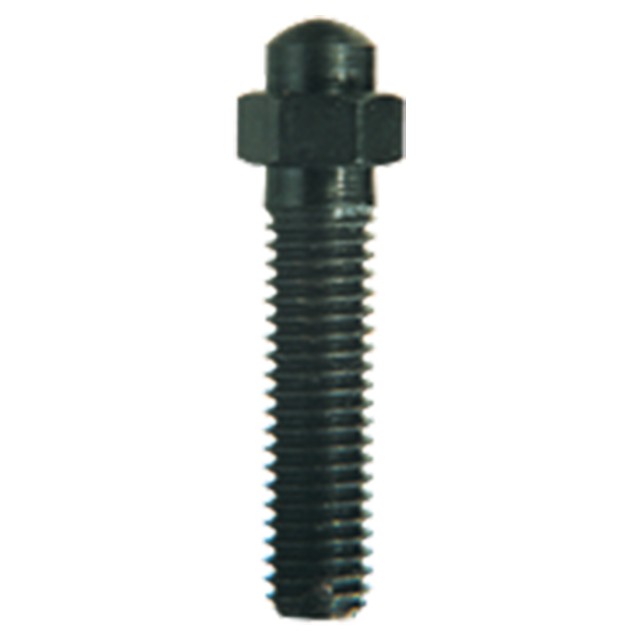

Adjustable Locating Buttons
Support screw with fine threads for precise adjustment. Made in USA.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1215 Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
Parts Specification
| Thread Size | Thread Pitch (mm) | A (mm) | B (mm) | C (mm) | D Diameter (mm) | E (mm) | G (mm) |
| M8 | 1.25mm | 45mm | 6mm | 6mm | 8mm | 5mm | 13mm |
