Carr Lane CLR-1802-250 | 2 Size x 5.00mm Stroke Compact Clamp

Product Information

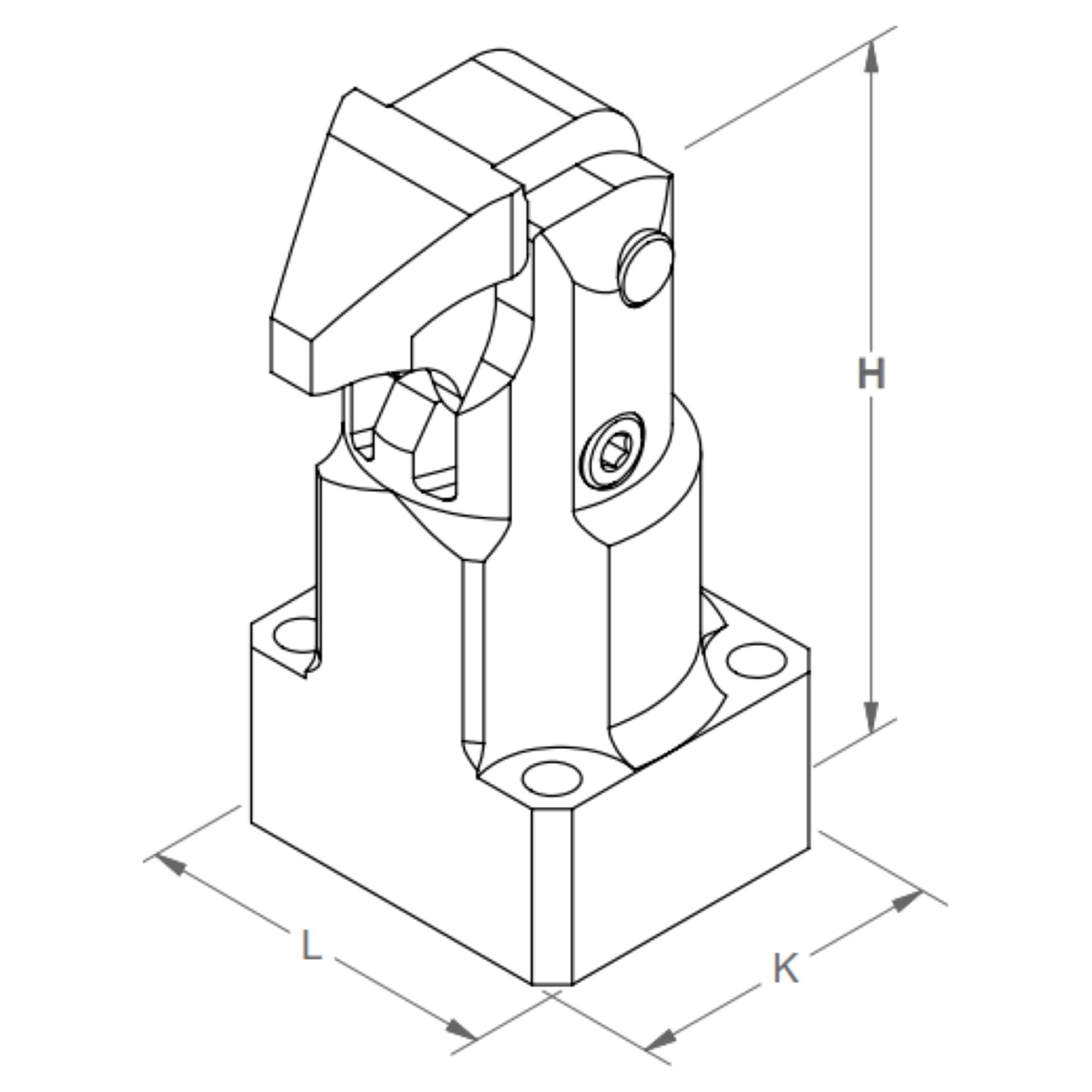

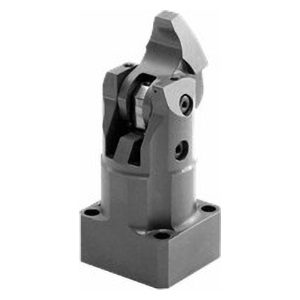

3600 psi max Double Acting Compact Clamps have a sturdy lever mechanism that pivots into clamping position. These clamps are extremely compact, especially in footprint. The clamping lever pivots a full 90 Degree for clear loading even when using custom long clamping levers. Ideal for clamping in narrow recesses. The flange-base version shown here is designed specifically for space-saving manifold mounting. Integrated pneumatic clamping monitoring allows checking for workpiece presence and clamping pressure. Available in four clamp sizes, double acting only. Clamping force at 3600 psi with standard clamping arm:            560 lbs              900 lbs          1680 lbs          2360 lbs

Application Information

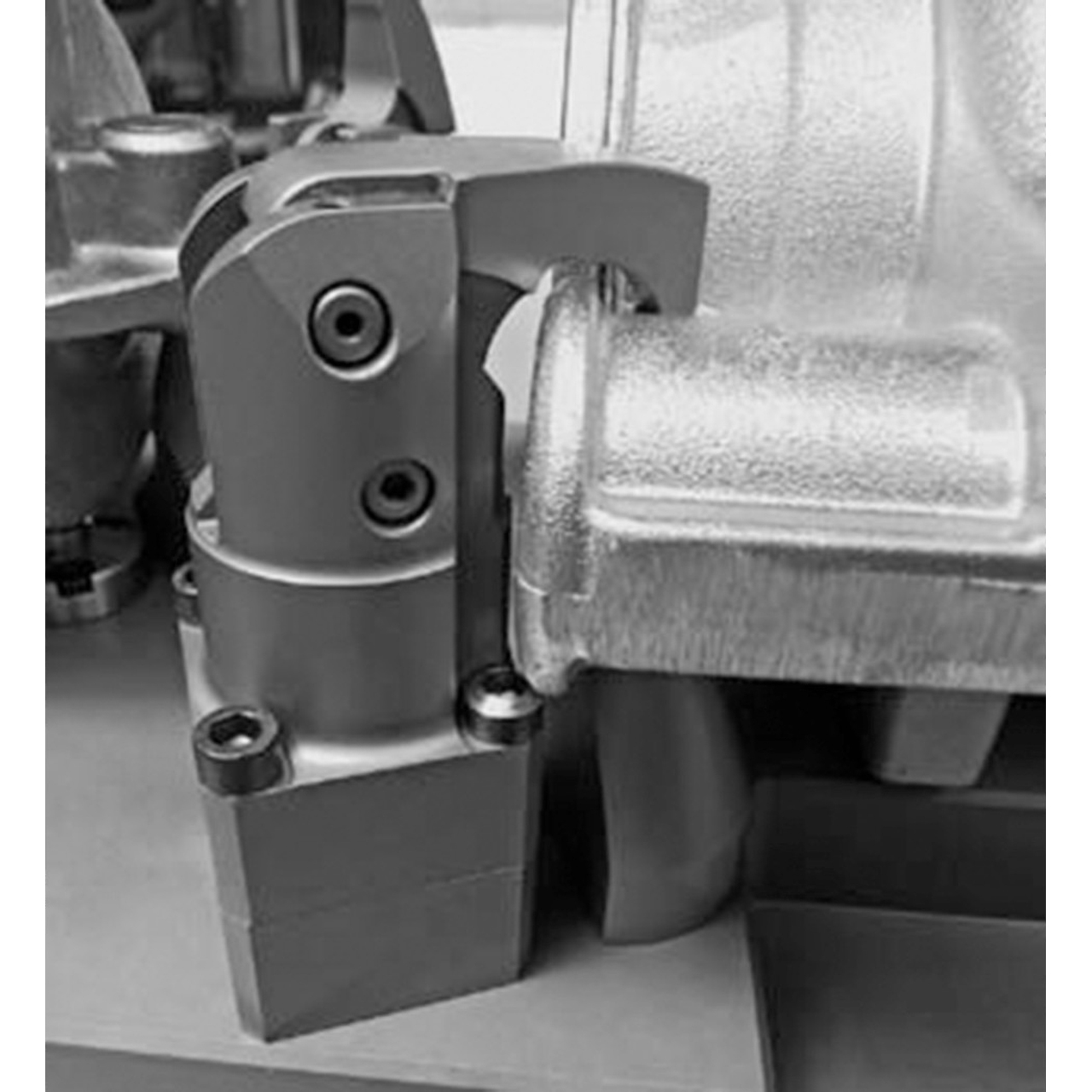

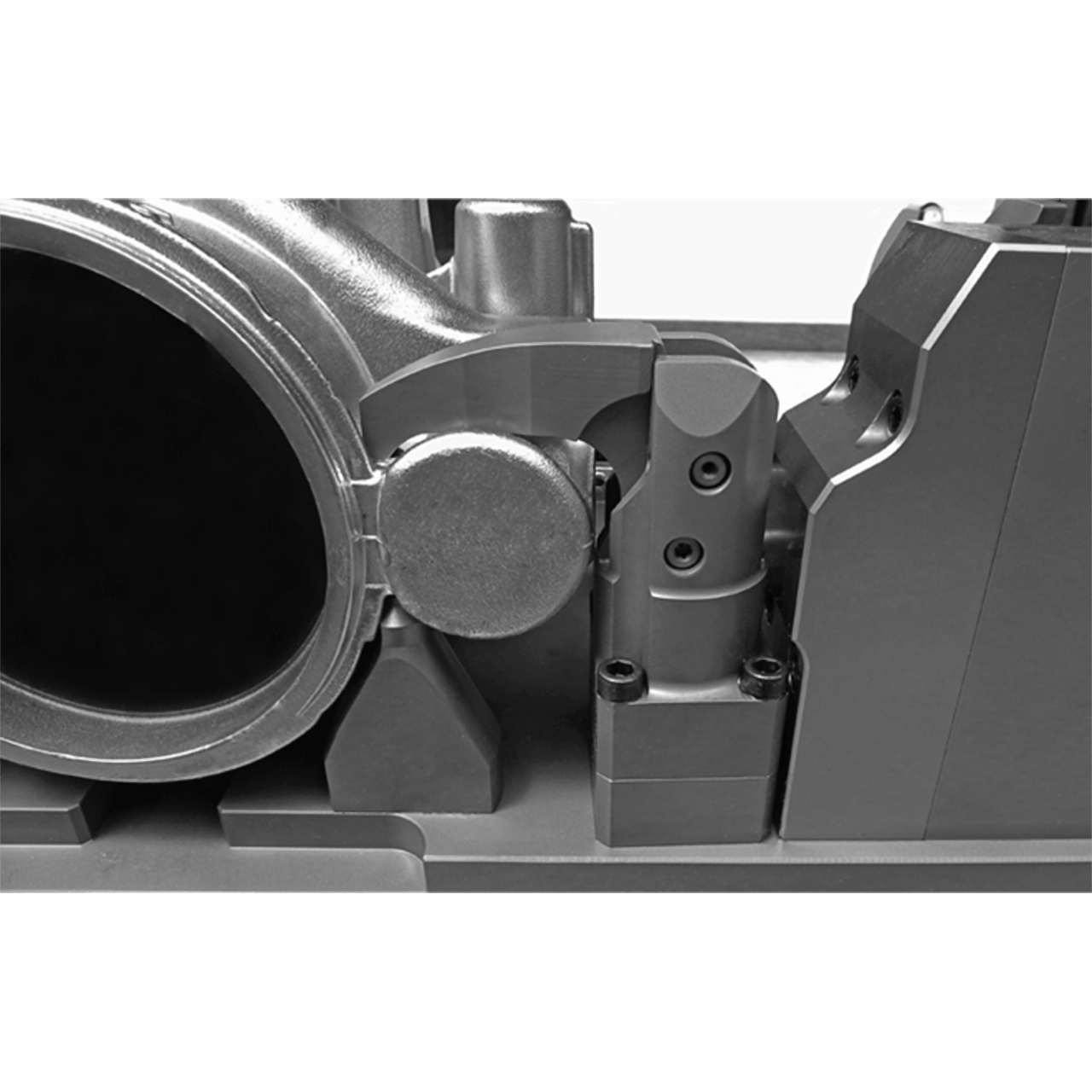

Clamping of a cast part with special clamping lever Clamping of a cast part with special clamping lever

Clamping Action

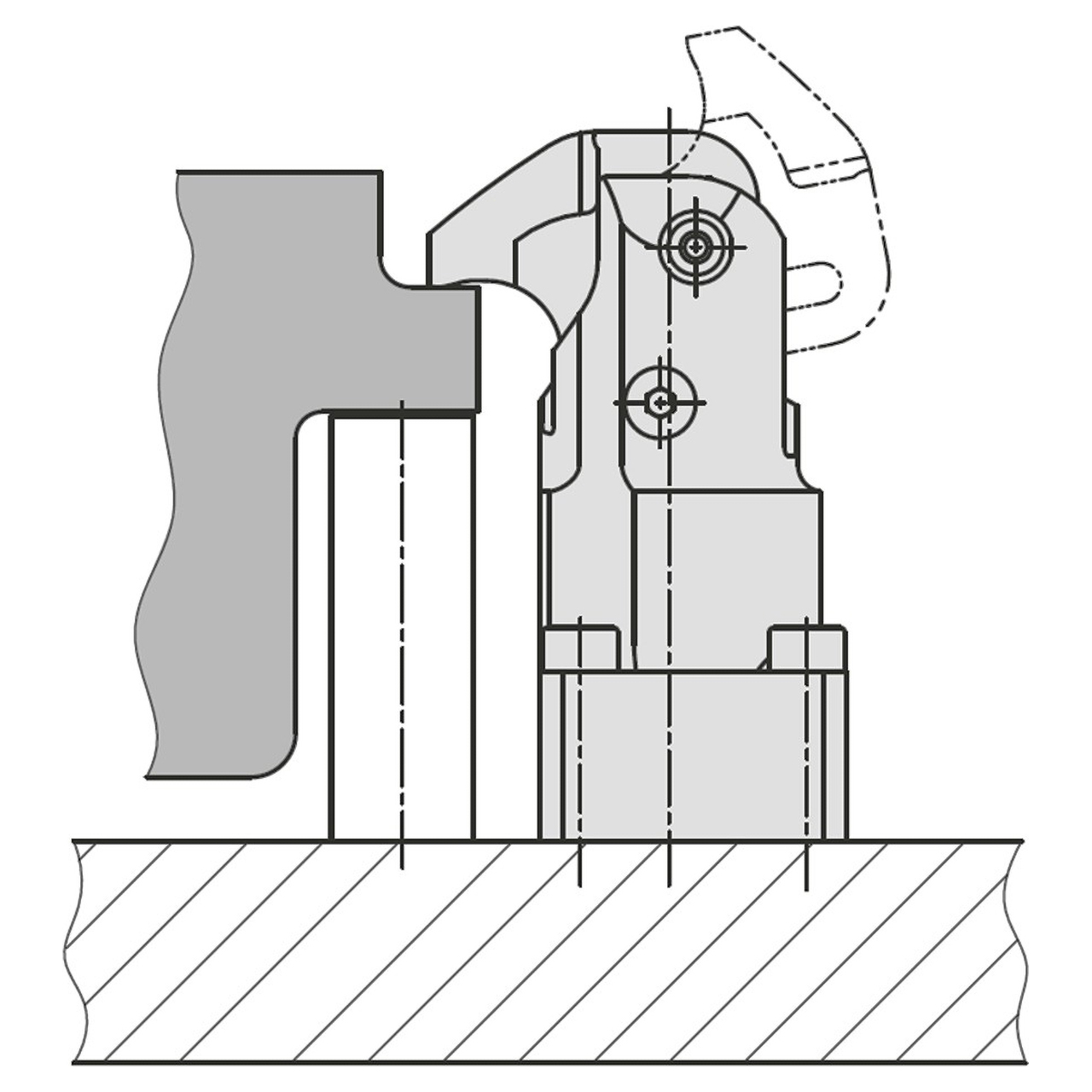

Applying fluid pressure to the A (clamping) port advances the piston, which pivots the clamping arm into position. Switching pressure to the B (unclamping) port positively retracts the piston and the attached clamping arm.

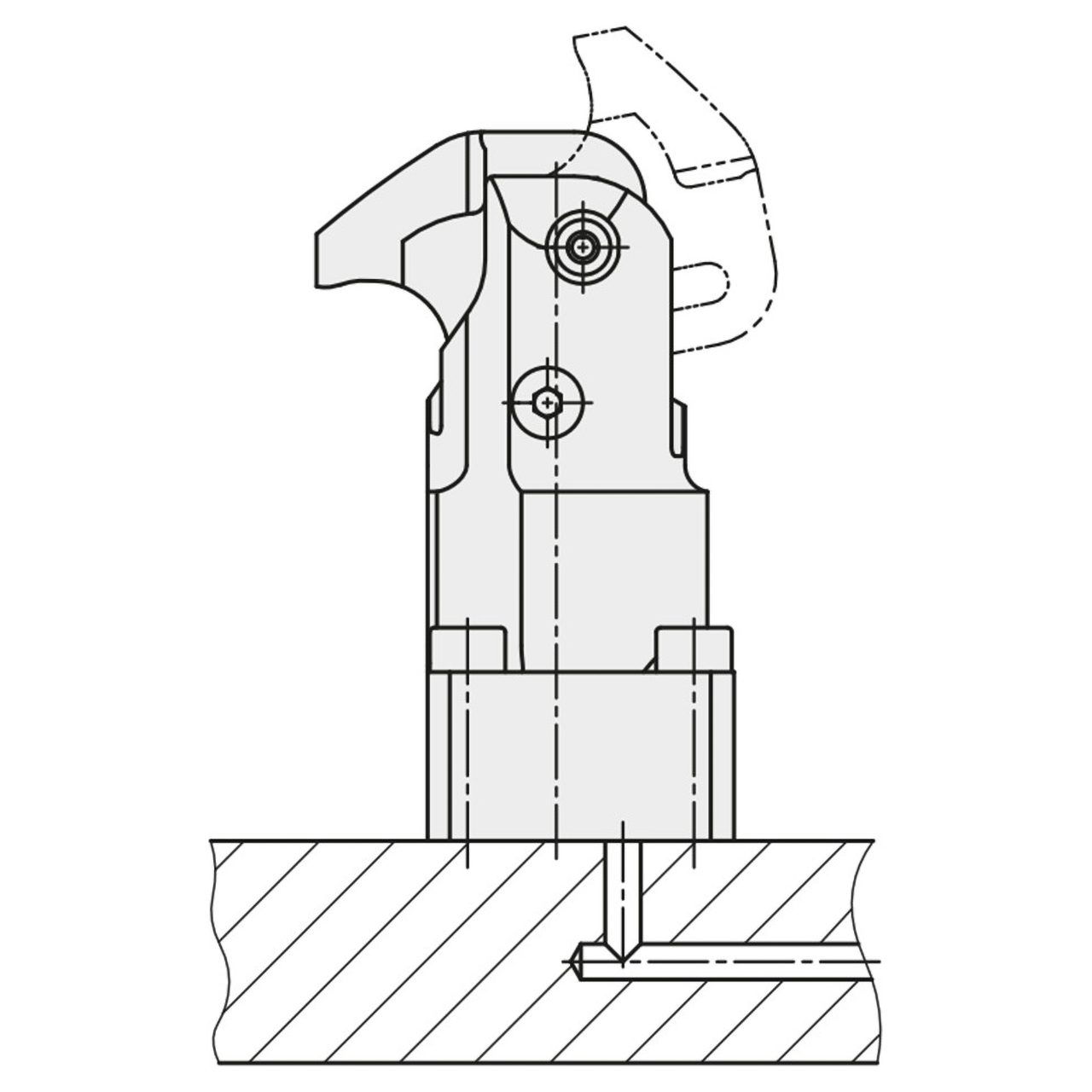

Mounting & Fluid Supply

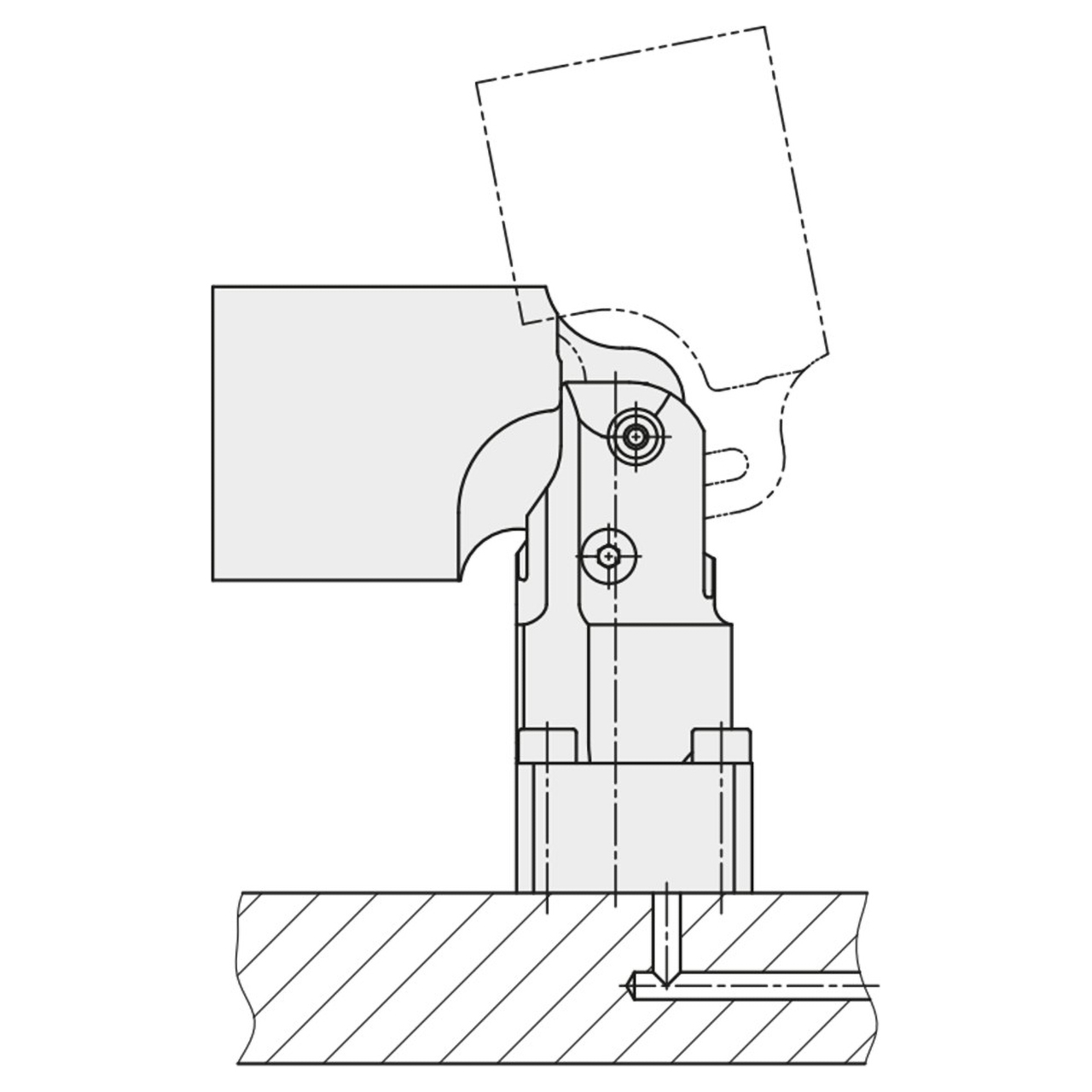

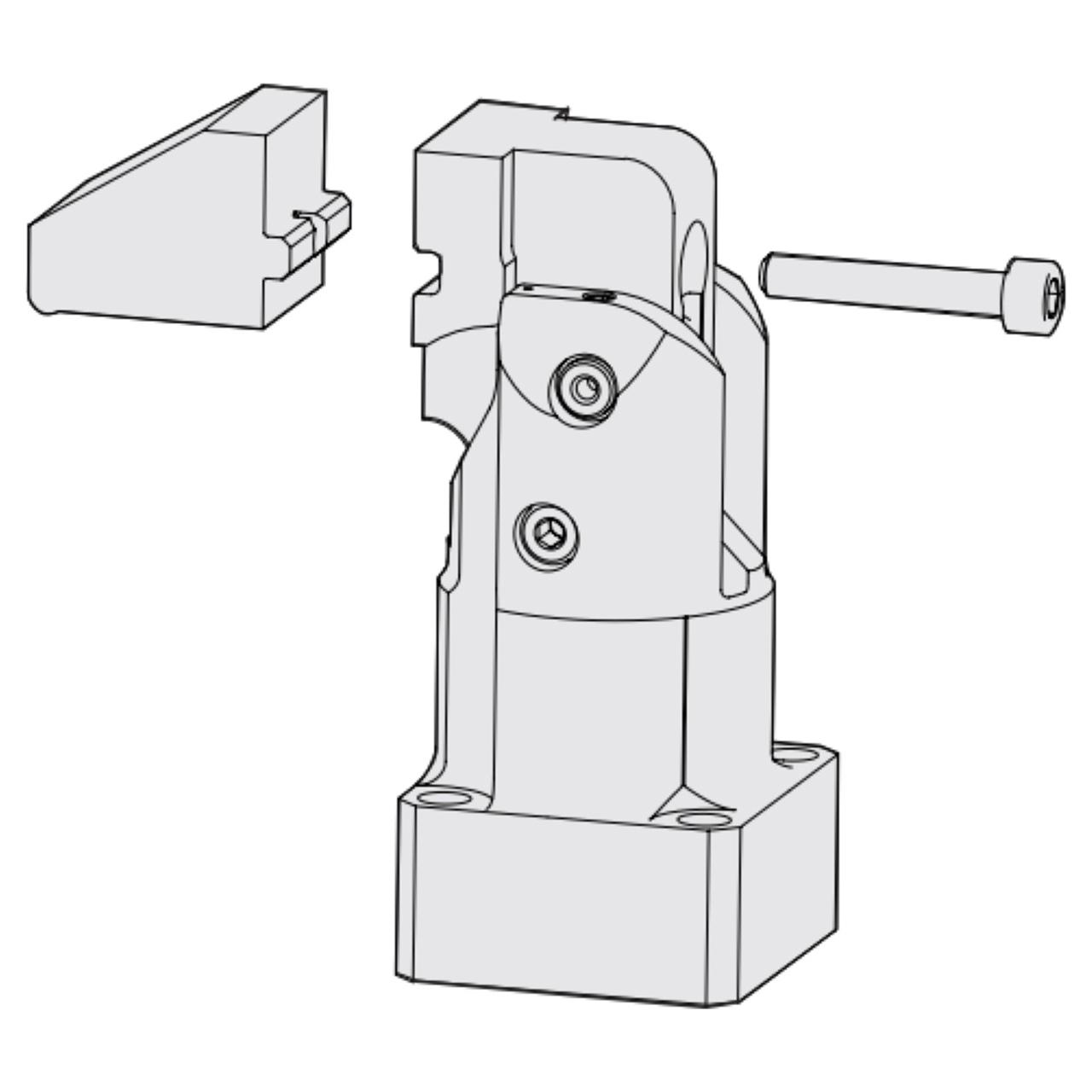

Clamping Arm

Optional Long Arm

Material

Parts Specification
