Carr Lane CLR-S804-209 | Modular Zero-Point System

Product Information

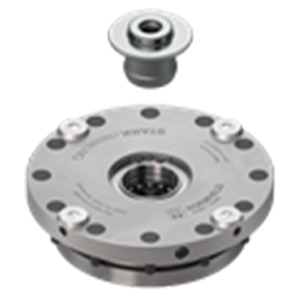

Reduce fixturing setup time by up to 90 percent with ROEMHELD Stark’s Zero Point Mounting Systems. Existing fixtures can be easily adapted to the system, which allows for fast payback, longer fixture life, and highly accurate positioning and repeatability. This comprehensive zero-point mounting system utilizes clamping components and insertion nipples, which provide an immediate zero-point orientation, allowing faster and more accurate fixture set up and changes to increase machine capacity. Change-over can be accomplished in 20 sec. STARK.classic.NG zero-point clamps are spring clamped, positively locked, and hydraulic released. The very high active pull in force of this series makes it the best in class in rigidity and vibration dampening. Special features of the STARK.classic.NG product family: lifting: STARK. Classic lifts the pallet upon release simple: easy to clean precise: due to cylindrical fit durable: press-fitted bolts versatile: clamping control, seat check, blow-out, media duct For a Downloadable Product Data Sheet see the "Documents" tab on this page.

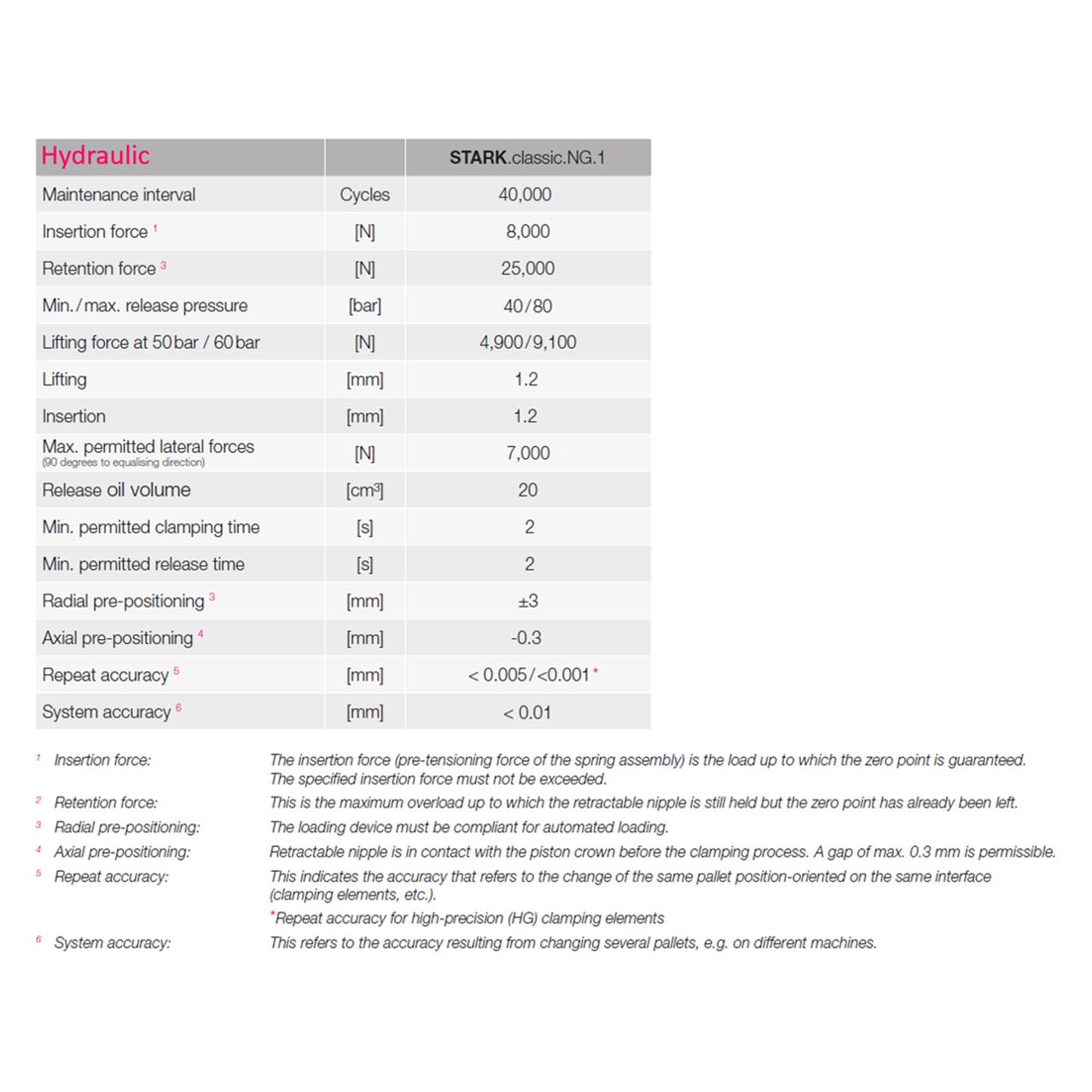

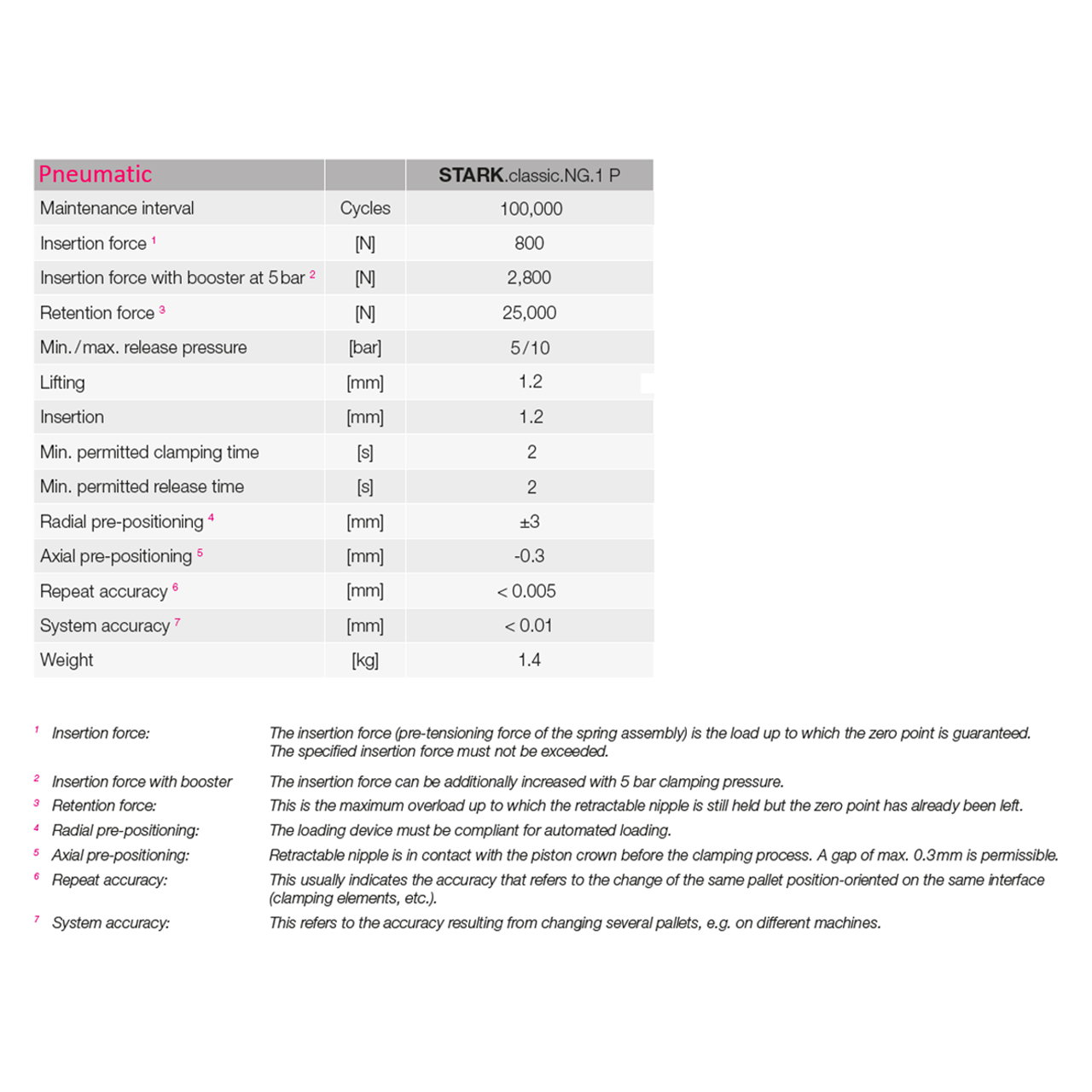

Technical Information

Videos

Stark Easy Click for Speedy Zero Point Manual Clamping Zero point CNC mounting, Stark Speedy Easy Click, snaps in without any energy. Release with air pressure. The mechanical clicking system makes SPEEDY easy click ideal as a robot gripper in automation engineering. The quick clamping time (click) enables it to be used as a design element in production lines. The particularly compact design permits tight spacing, short retractable nipples 15 mm long ensure short extraction distances. Integrated query options and oil-free operation extend the range of applications. The SPEEDY easy click is also available with system control, polling and blowing out. Roemheld Zero Point Mounting Systems, Chip to Chip in 60 seconds Keep your spindle turning using Stark zero point quick change systems. You can change out fixtures in a matter of seconds with the assurance of having the highest accuracy and repeatability in the industry. This comprehensive zero-point mounting system utilizes clamping components and insertion nipples, which provide an immediate zero point orientation, allowing faster and more accurate fixture set up and changes to increase machine capacity. Change-over can be accomplished in 20 sec.Learn more at https://roemheld-usa.com/data-sheet-c...

Material Chart

table {border: 1px solid black; border-collapse: collapse; width: 100%;}th, td {border: 1px solid black; padding: 8px;font-family: arial; text-align: center;vertical-align: center;}ITEMMATERIALHEAT TREATFINISHClamping elements High Alloy Tool Steel Hardened support surface-Nipples (Pull Studs)High Alloy Tool Steel Hardened-Click here for detailed material and finish specifications. California residents click here for Prop 65 information.

Parts Specification
