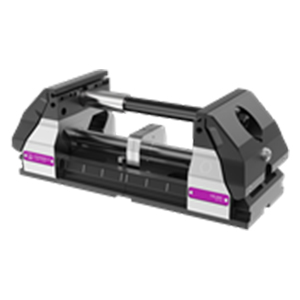

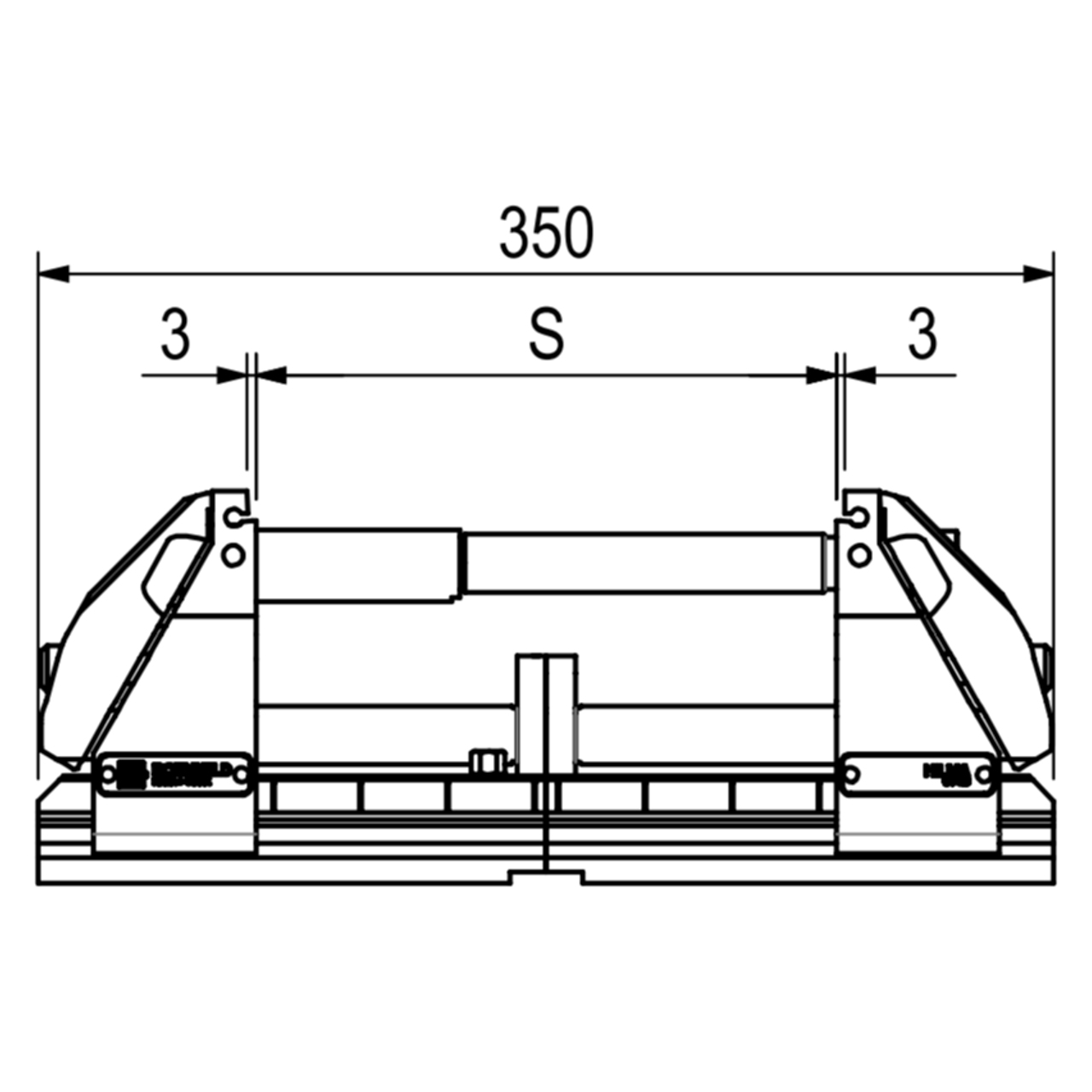

Carr Lane CLRH-9-7023-0101 | 350.00mm Length x 125.00mm Width UC Vise

Product Information

Concentric, modular, precise Jaw width 125 mm The mechanical HILMA.UC clamping system is suitable for numerous clamping tasks and is used for machining dimensionally stable workpieces in single or multiple clamping systems. Small workpieces as well as large plates can be clamped and machined without large interference contours. Even when production requirements change, there is no need to invest in new clamping devices. Special features of the HILMA.NC machine vise family:• universal modular system enables versatile clamping options• stabile no deflection thanks to closed force flow• compact reduced design ensures optimum accessibility • precise true to position due to pull-down mechanism

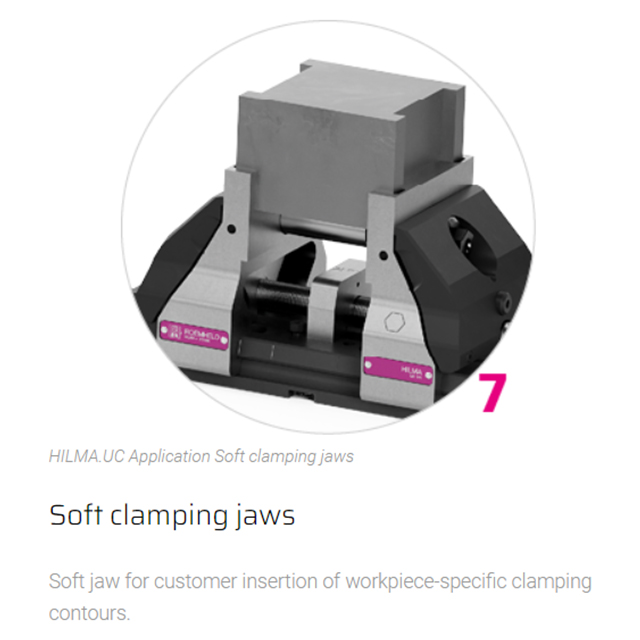

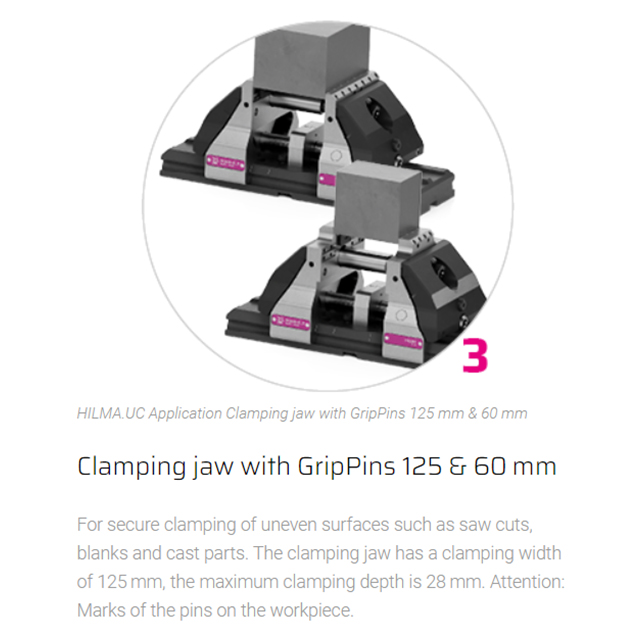

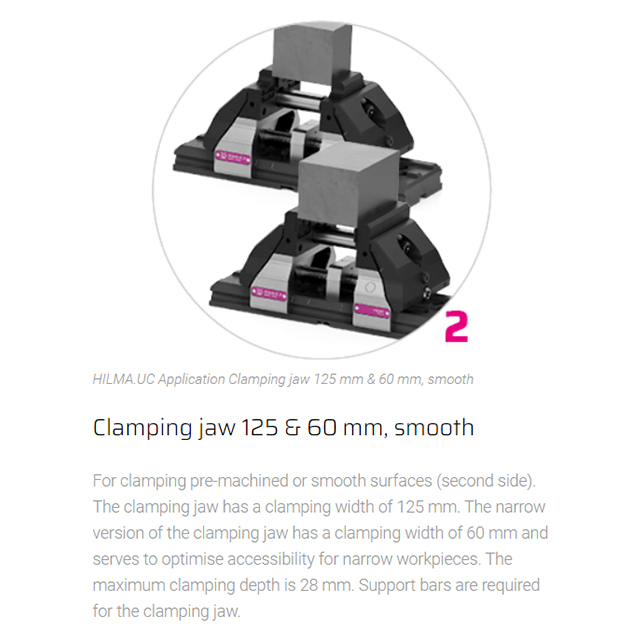

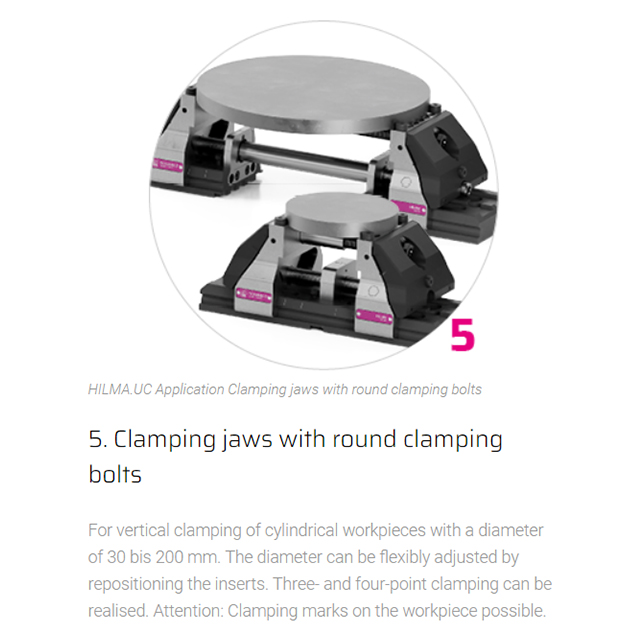

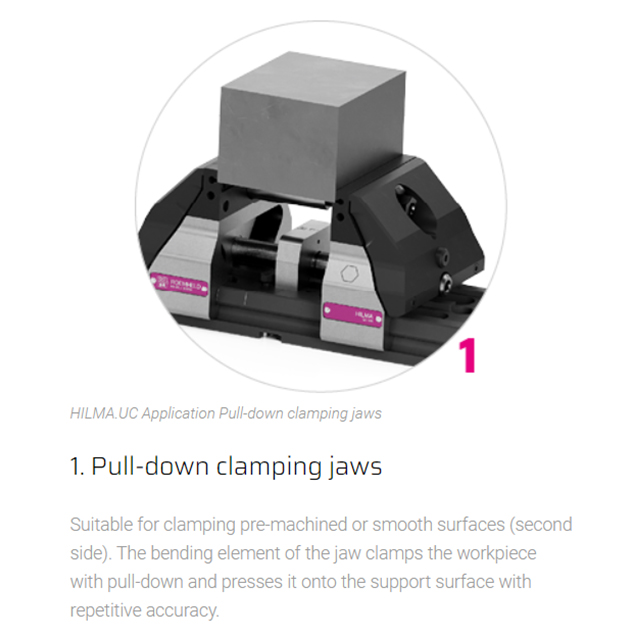

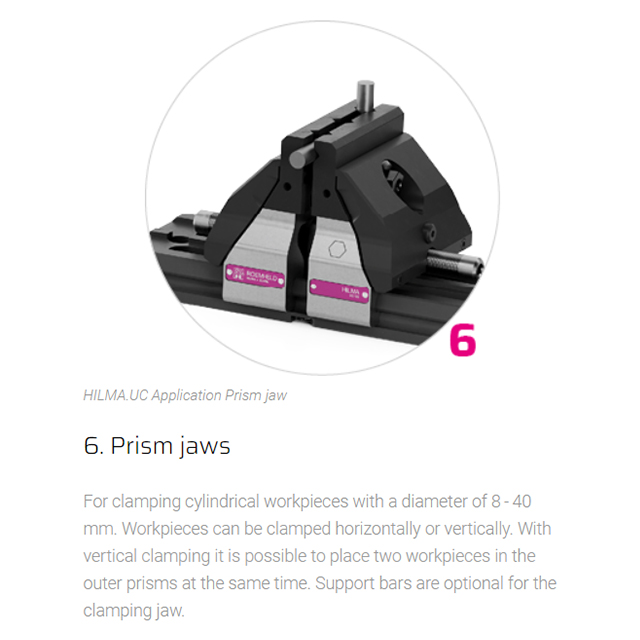

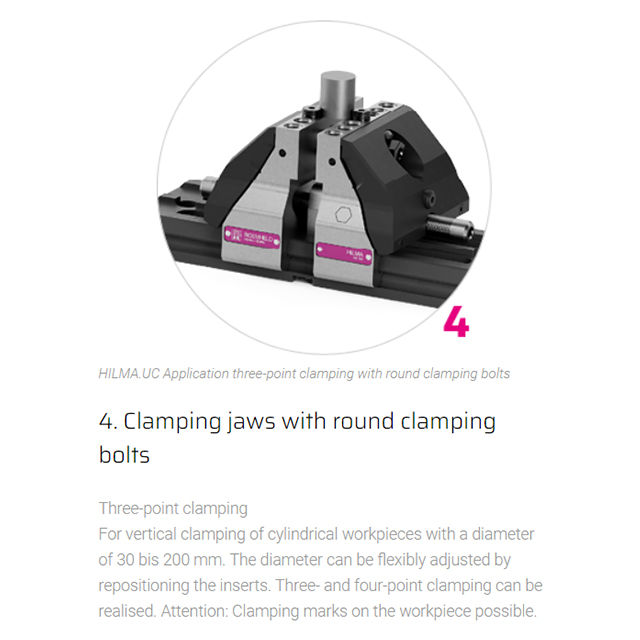

Application Information

Videos

Hilma UC . Hilma UC Montage . Hilma UC Adjust . Hilma UC Program .

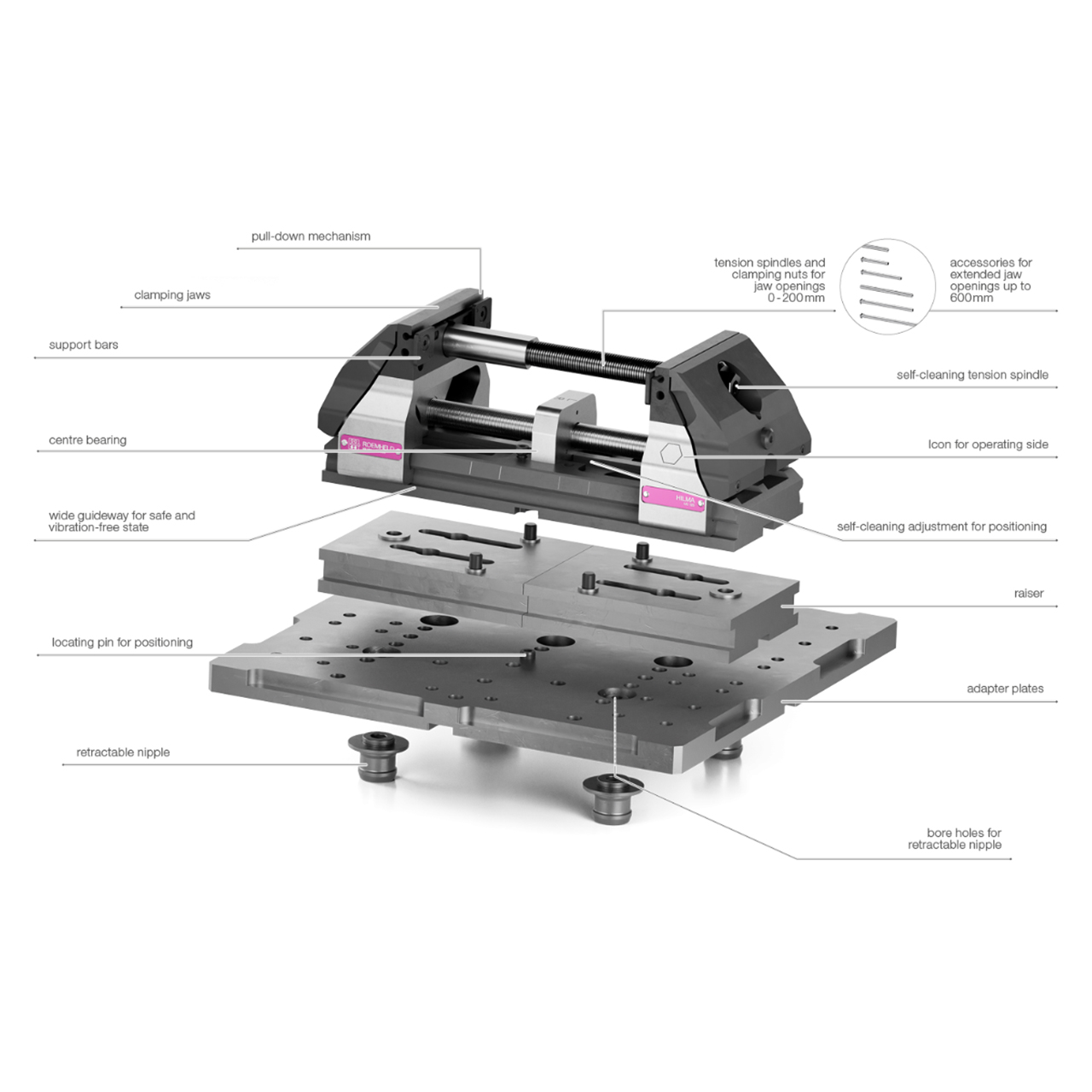

Features

Advantages & Options

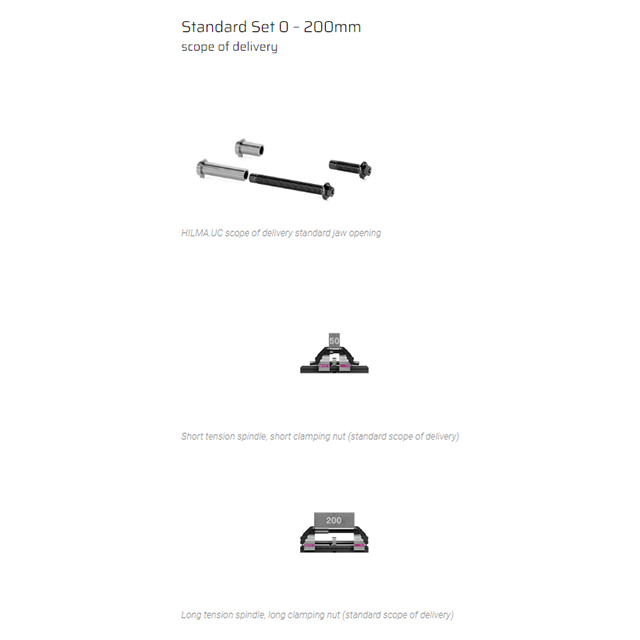

Flexible Clamping Widths

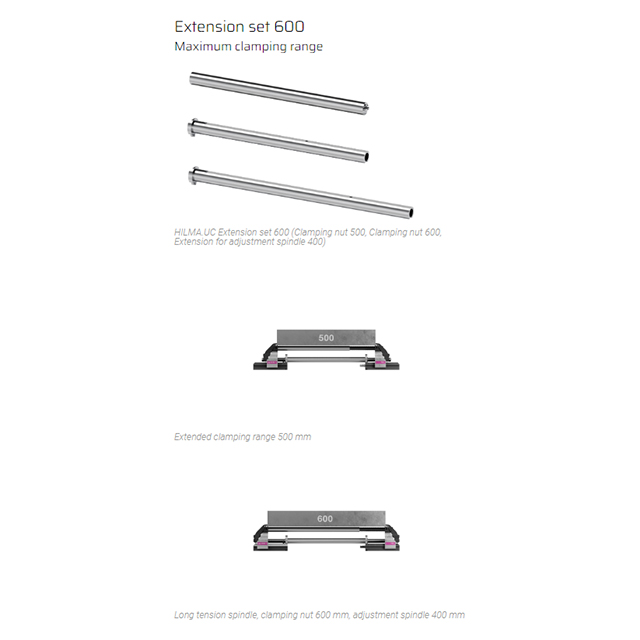

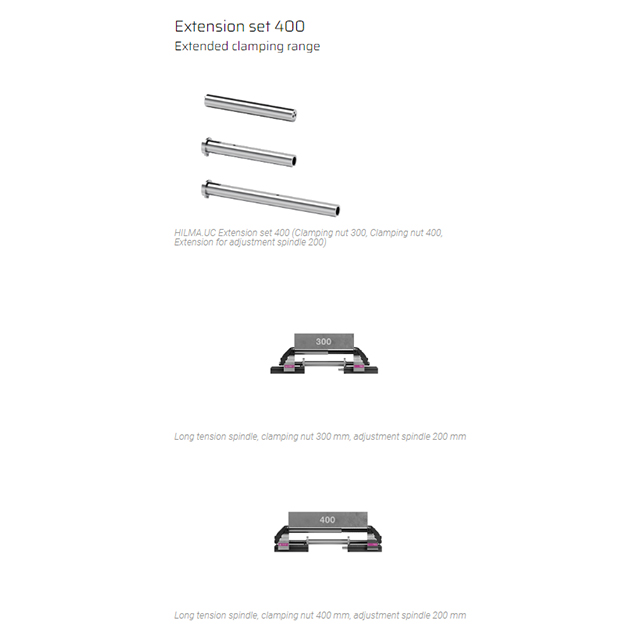

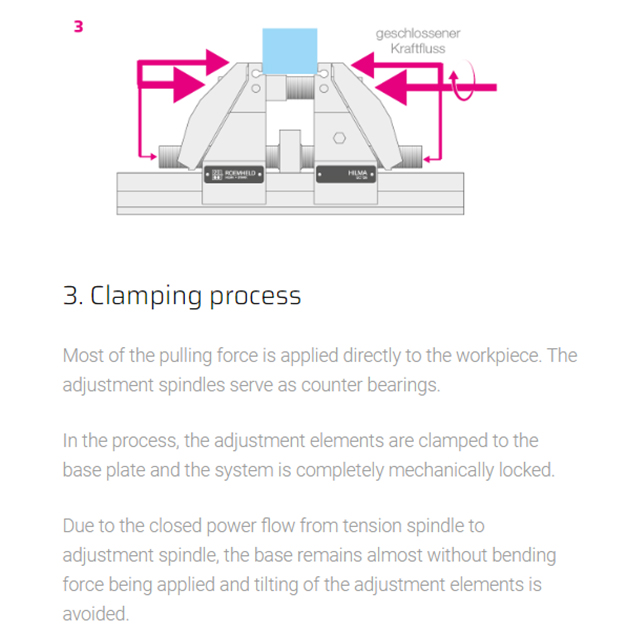

The concentric clamping system can be divided in the middle and extended. The clamping range can be extended up to 600 mm by using different tension spindle/clamping nut combinations. A closed force flow is created between the tension spindle, adjustment element and clamping jaw, thus allowing the modular design. The base plate remains without a bending force being applied. The extended clamping system can be mounted directly on the machine table, raisers or adapter plates.

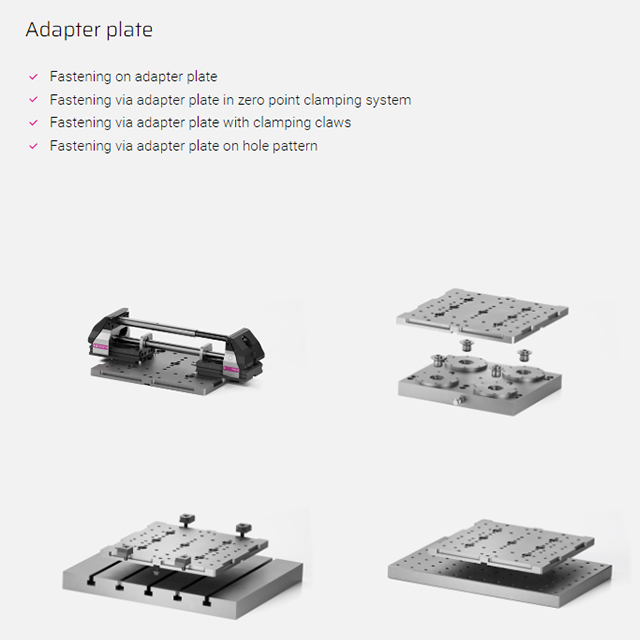

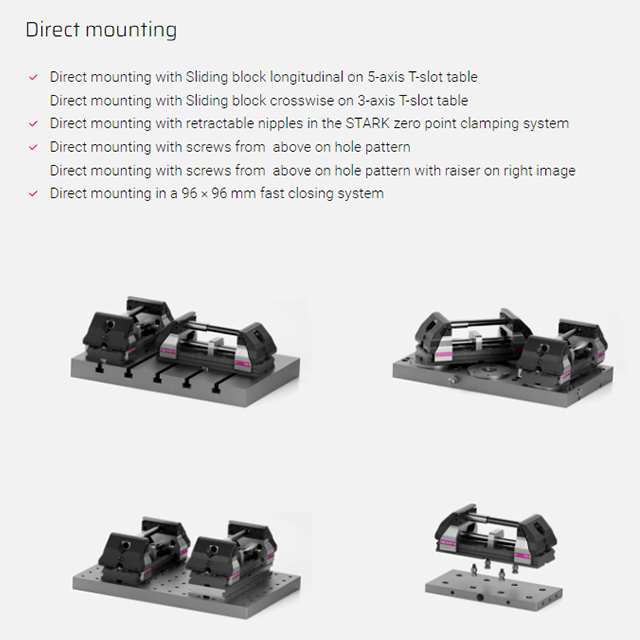

Mounting Options

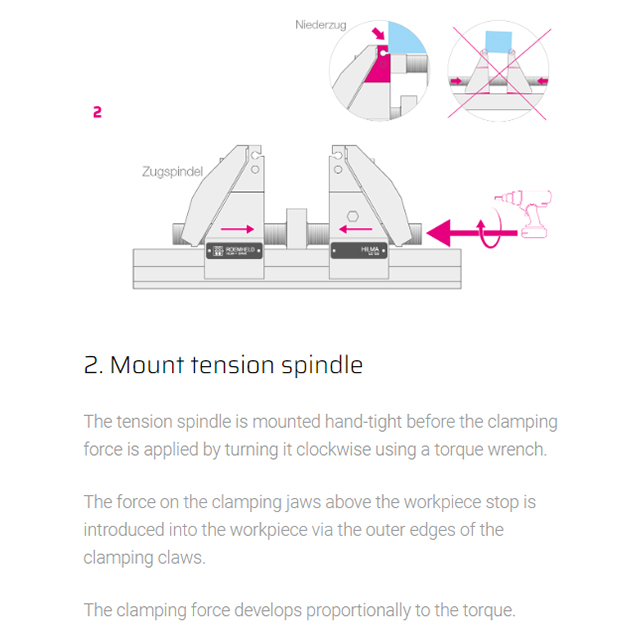

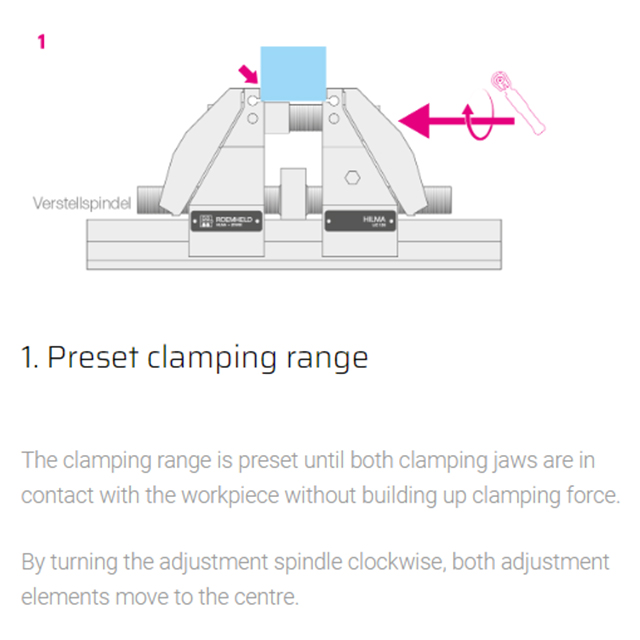

Function

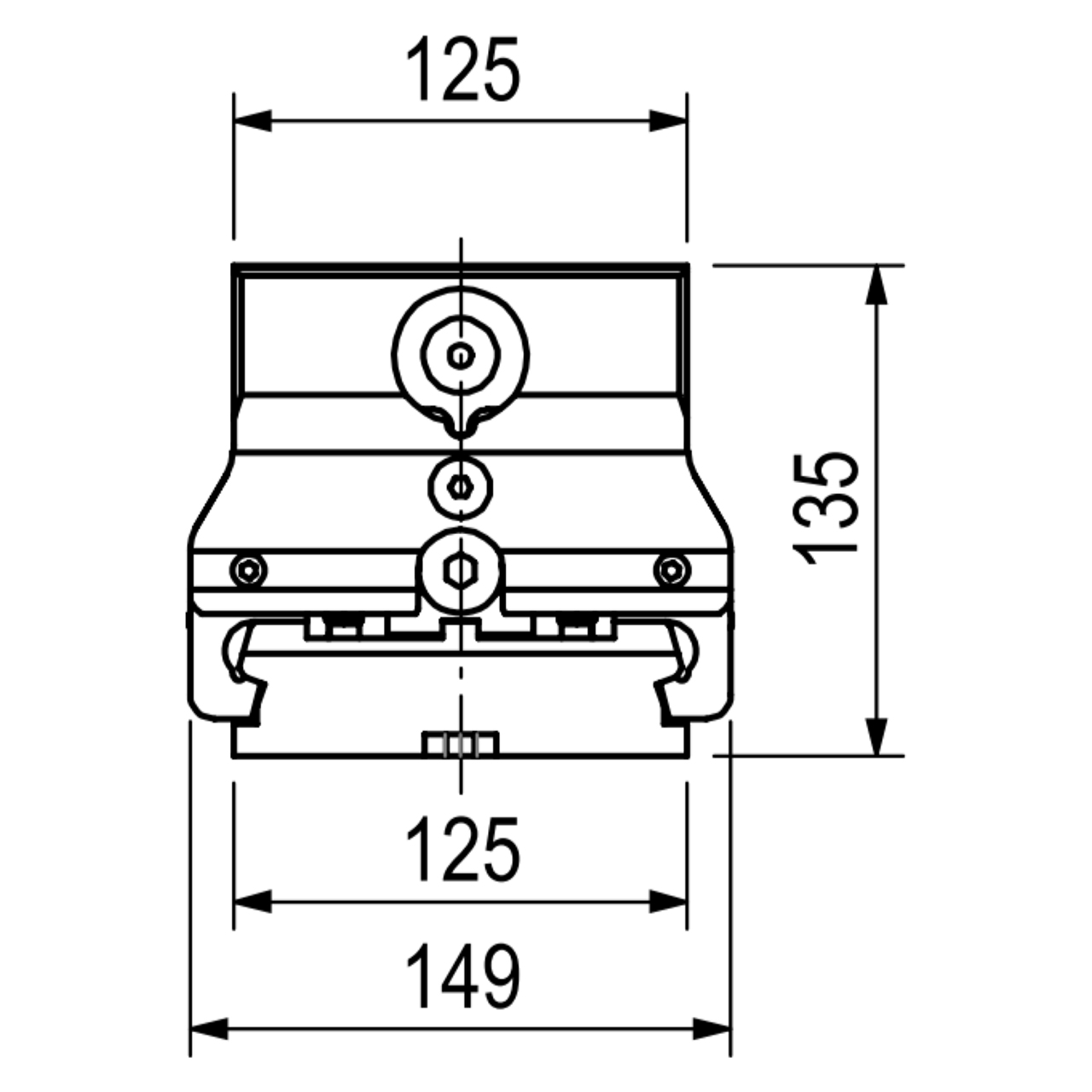

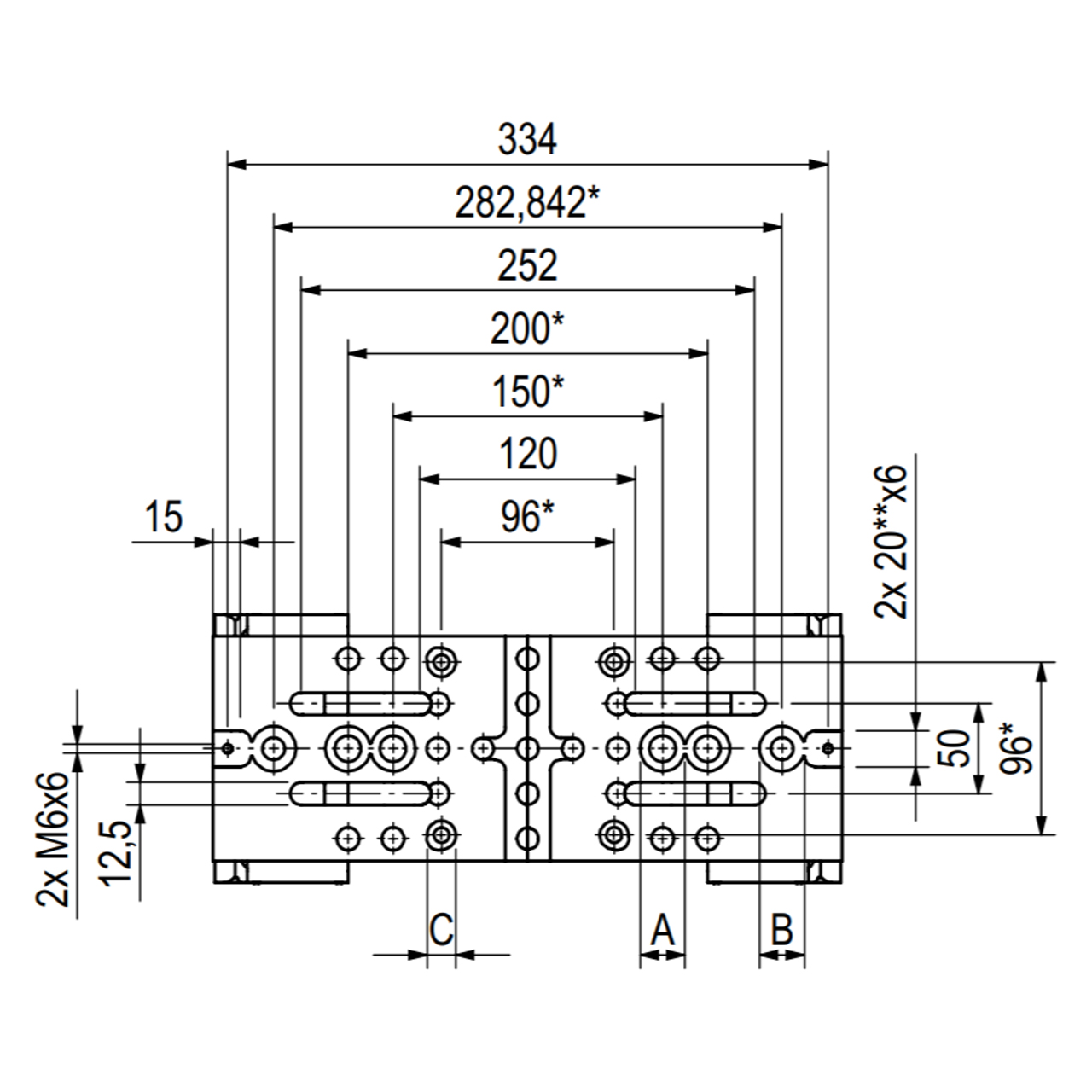

Material

Parts Specification
