Carr Lane H-16-6-.1285 | #30 (.1285) Inner Diameter x 1/4 Outer Diameter x 3/8 Length Quick-Ship Head Press-Fit Bushing(H)

Product Information

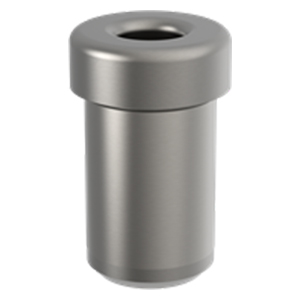

H Bushings are similar to P bushings, but with a head to resist heavy axial loads. H bushings are permanently pressed into the jig plate. They are generally used for single-operation drilling or reaming, when you do not expect to replace bushings during the tooling's lifetime. The head can be left exposed, or recessed by counterboring the installation hole. Quick-Ship Drill Bushings are popular bushing sizes that we do our best to keep in stock and ready for same-day shipment 100% of the time. These bushings include most common ID drill sizes. Complete part numbers for all quick-ship H bushings are listed in the tables below.

Application Information

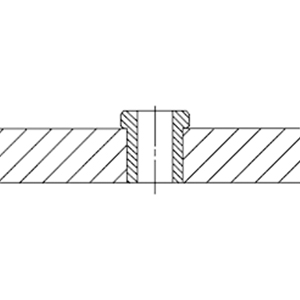

H bushings are permanently pressed into the jig plate. The head can be left exposed, or recessed by counterboring the installation hole.

ID Tolerance

Standard ID Tolerance:          From #80 to 1/4"          +.0001/+.0004          Over 1/4 to 3/4"            +.0001/+.0005          Over 3/4 to 1-1/2"        +.0002/+.0006

OD Tolerance

Standard OD Tolerance:          5/32 to 13/64"      +.0016/+.0012          1/4 to 13/32"        +.0016/+.0013          7/16 to 5/8"          +.0017/+.0014          3/4 to 1"                +.0018/+.0015          1-1/8 to 1-1/4"      +.0020/+.0017          1-3/8 to 1-1/2"      +.0022/+.0018

Material

Parts Specification
