Carr Lane HM-10-16-5.20 | 5.20mm Inner Diameter x 10.00mm Outer Diameter x 16.00mm Length Head Press-Fit Bushing (HM)

Product Information

Metric version of our popular H bushing. HM bushings are permanently pressed into the jig plate. They are generally used for single-operation drilling or reaming, when you do not expect to replace bushings during the tooling's lifetime. The head can be left exposed, or recessed by counterboring the installation hole. Note: the "length" listed for an HM bushing refers to its overall length, not its length under the head. Complete part numbers for all standard Metric Head Press-Fit Bushings (all standard ID, OD, and length combinations) are listed in the tables below. The Part Configurator link at the top of this page can be used for any HM bushing, either standard or special.

Application Information

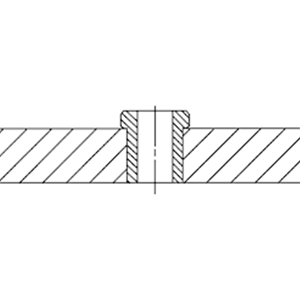

HM bushings are permanently pressed into the jig plate. The head can be left exposed, or recessed by counterboring the installation hole.

ID Tolerance

Standard ID Tolerance (G6):          From .35 to 3mm       +.002/+.008mm          Over 3 to 6mm           +.004/+.012mm          Over 6 to 10mm         +.005/+.014mm          Over 10 to 18mm       +.006/+.017mm          Over 18 to 30mm       +.007/+.020mm          Over 30 to 50mm       +.009/+.025mm          Over 50 to 80mm       +.010/+.029mm         Over 80mm and up    +.012/+.034mm Reamer ID Tolerance (F6) (Special):          From 1 to 3mm         +.006/+.012mm           Over 3 to 6mm          +.010/+.018mm          Over 6 to 10mm        +.013/+.022mm          Over 10 to 18mm      +.016/+.027mm          Over 18 to 30mm      +.020/+.033mm Reamer bushings have a different ID-tolerance range than drill bushings. To special-order bushings with the reamer ID tolerance shown here, add "-REAMER" to the part number:          HM-8-12-4.50-REAMER (Special)

OD Tolerance

Standard OD Tolerance (s6):          4 to 6mm             +.027/+.019          7 to 10mm           +.032/+.023          12 to 18mm         +.039/+.028          22 to 30mm         +.048/+.035          35 to 48mm         +.059/+.043          55 to 62mm         +.072/+.053          70 to 78mm         +.078/+.059          85 to 95mm         +.093/+.071

Counterbore on Small ID Sizes

Metric bushings with small drill sizes through .80mm are counterbored 1.00mm diameter with 3mm drill-bearing length, according to ANSI standards, to eliminate binding and heat buildup.

Material

Parts Specification
