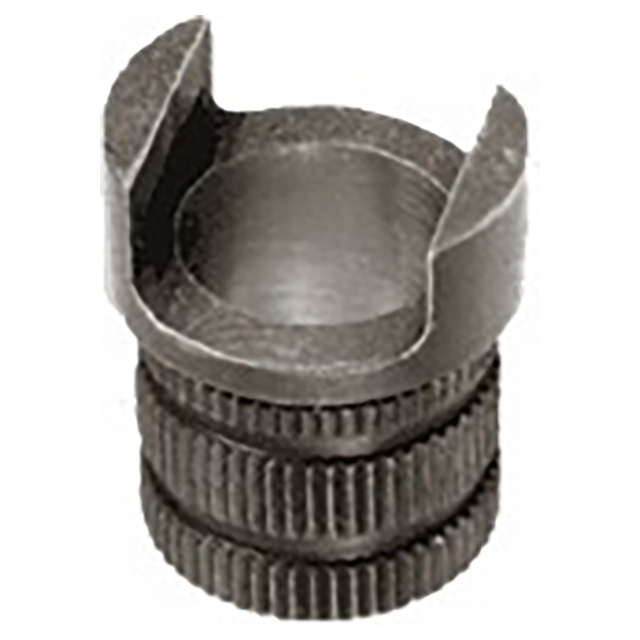

Carr Lane LL-2 | AT-Series Lock Liner

$15.77
Ships:
From Manufacturer
Brand:
Carr Lane
Ships:
From Manufacturer
SKU:
70034143
UPC:
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

AT-Series Lock Liners-Knurled

Precision knurled liner bushing for mounting air-feed drills in fiberglass or plastic tooling. AT-series knurled lock liners are designed especially for AT-series one-piece adaptor tips, and are not compatible with any other liners or air-feed accessories.

Application Information

Material

Material Heat Treat Finish DFARS RoHS
1144 Stressproof Steel Heat treated to achieve Rc 62-64 ID hardness -

Parts Specification

A ID Nominal (Inch)A ID Actual (Inch)B OD (Inch)C (Inch)D (Inch)F Diameter (Inch)
7/16"0.4377/0.4380"11/16"1-3/8"7/8"13/16"
