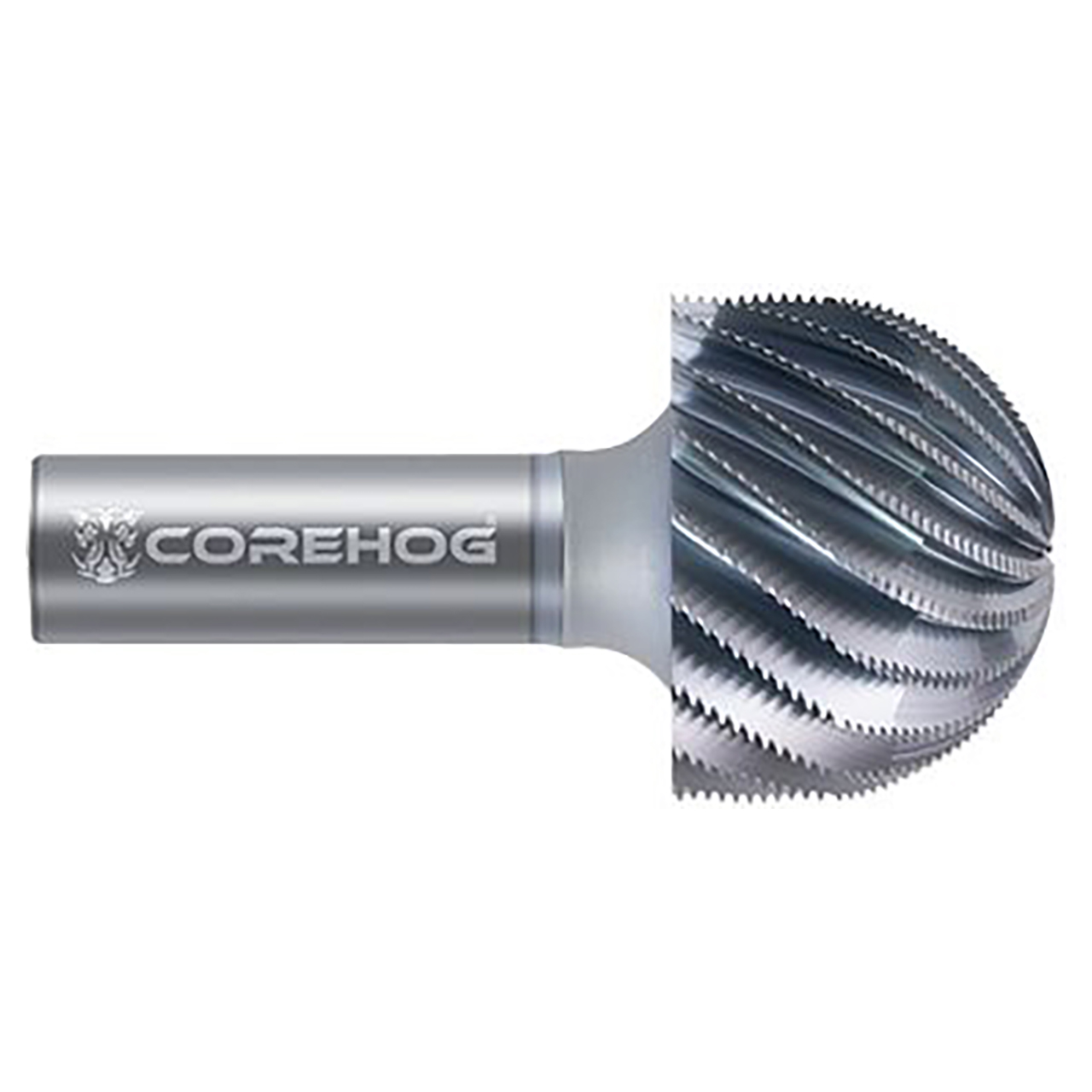

Featuring TiCN coating for extended tool life and improved wear resistance, these ball profile, reduced shank CoreHoggers include a large diameter design for increased productivity and increased MRR when cutting honeycomb core materials.
Features:
- Ball end profile optimized for shaping and roughing surfaces
- Used for bulk material removal of honeycomb composite materials including Nomex, Kevlar, Phenolic, and Glass
- Provides excellent performance when roughing and finishing foam materials like Rohacell, Poly Foam, and Styrofoam
- TiCN coating for extended tool life and improved wear resistance
- Precision manufactured in the USA
Product Specifications
| Manufacturer Part Number | C41016 |
| Cutter Diameter (Inch) | 2.0000" (2) |
| Length of Cut (Inch) | 1.5000" (1-1/2) |
| Shank Diameter (Inch) | 0.7500" (3/4) |
| Overall Length (Inch) | 4.000" (4) |
| Size | End Cutting |
| Assembly Size Pairing | End Cutting |
| Metric | N |
| Coating | TiCN |
| Substrate | High Speed Steel |
| Number of Flutes | 18 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
CoreHog
Mill Diameter (Inch):
2"
Mill Diameter (Decimal Inch):
2.0000"
Mill Diameter (mm):
50.80mm
Number of Flutes:
18
Length of Cut (Inch):
1-1/2"
Length of Cut (Decimal Inch):
1.5000"
Length of Cut (mm):
101.60mm
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.60mm
Shank Diameter (Inch):
3/4"
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (mm):
19.05mm
Finish/Coating:
TiCN
