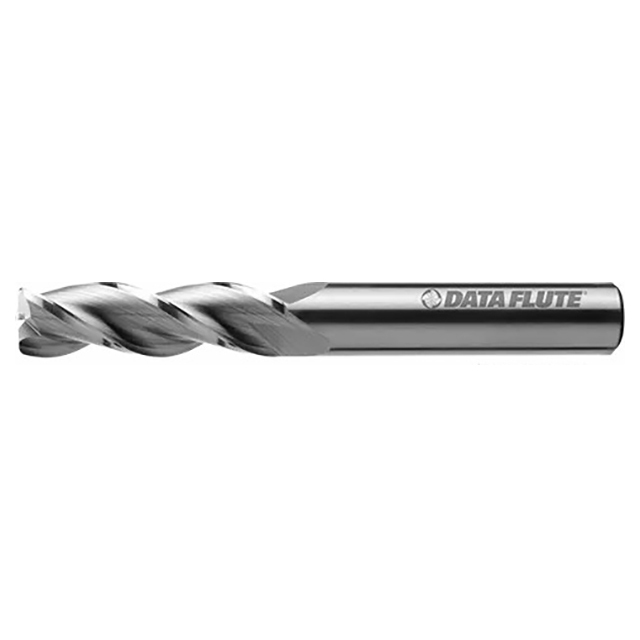

DATA FLUTE AFIM30625-030 | 0.625" Diameter x 0.625" Shank x 2.125" LOC x 4.000" OAL x 0.03mm Radius Uncoated Corner Radius End Mill

$145.28
Brand:
DATA FLUTE
Diameter (Decimal Inch):
0.6250"
Shank Diameter (Decimal Inch):
0.6250"
Length of Cut (Decimal Inch):
2.1250"
Overall Length (Decimal Inch):
4.0000"
Radius (mm):
0.03mm
Finish/Coating:
Uncoated
interval quantity:
1
SKU:
25295127
Weight:
1.23 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout
DATA FLUTE AFIM30625-030 | 0.625" Diameter x 0.625" Shank x 2.125" LOC x 4.000" OAL x 0.03mm Radius Uncoated Corner Radius End Mill

The AFI 3 flute Aluminum mill is the perfect choice for your finishing applications. The polished O.D. cylindrical margin along with material specific geometries generates an excellent surface finish. The addition of a Wiper Flat brings this series of tool to the perfect choice. The AFI series is available in stub, standard, medium, long and extra long length of cut.

Features:

  • Polished O.D. Cylindrical Margin
  • Wiper Flats
  • High Performance Carbide

Product Specifications
Manufacturer Part NumberAFIM30625-030
Diameter (Decimal Inch)0.625"
Shank Diameter (Decimal Inch)0.625"
Length of Cut (Decimal Inch)2.125"
Overall Length (Decimal Inch)4.000"
Radius (mm)0.03mm
CoatingUncoated
Product TypeCorner Radius End Mill
