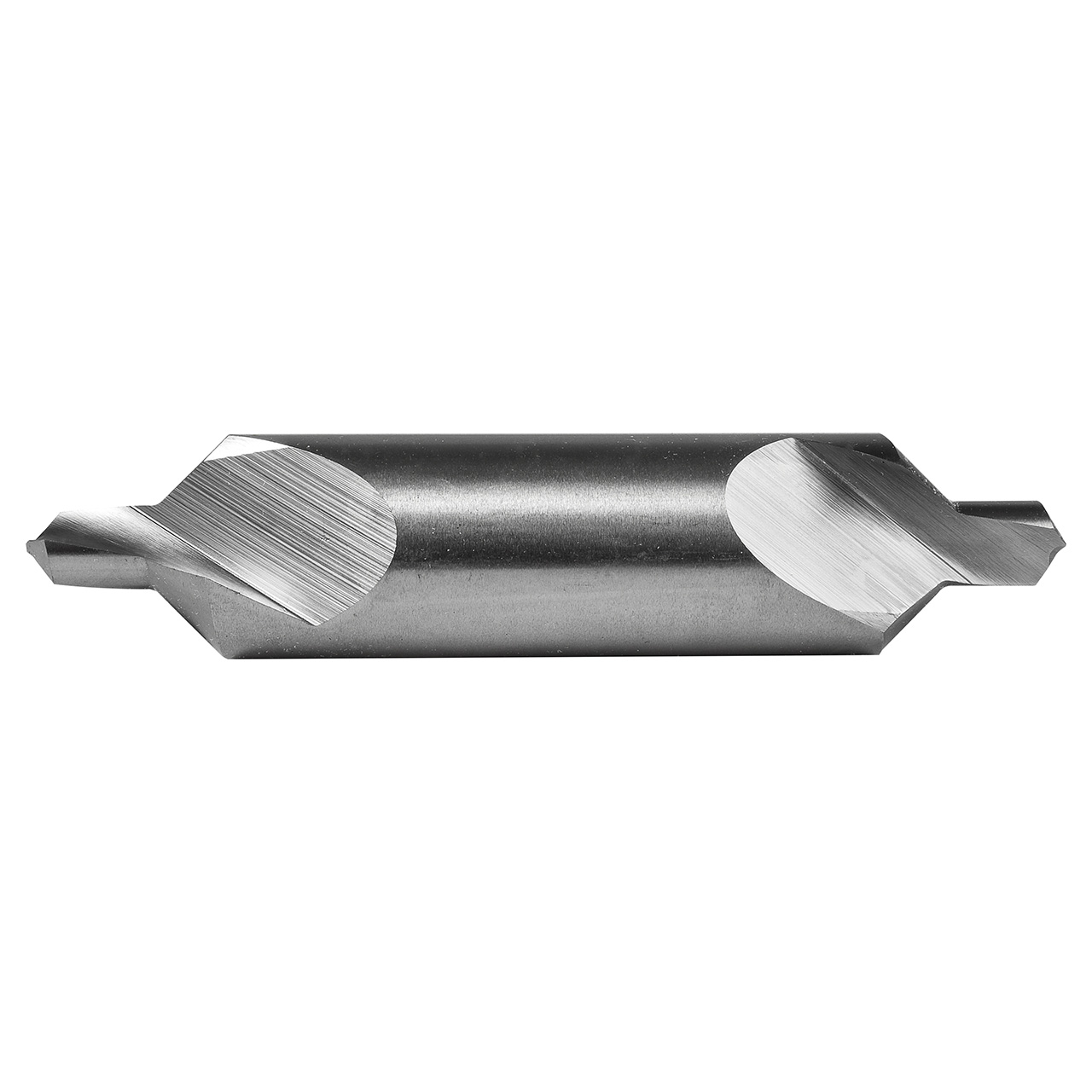

Dormer A218N6 | 0.2188" Diameter x 3" OAL Bright Coated Combination Drill & Countersink

$17.80
Brand:
Dormer
Drill Point Diameter (Inch):
7/32"
Drill Point Diameter (Decimal Inch):
0.2188"
Drill Point Diameter (mm):
5.56mm
Included Angle:
120°
Material:
HSS
Finish/Coating:
Bright
Cutting Direction:
Right Hand
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.2mm
SKU:
10110779
Weight:
2.04 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Centre drill (combined drill and countersink) with 90° straight conical form, double ended and cylindrical body, size 6 with 7/32" drill diameter, a body diameter of 1/2" and an overall length of 3", according to ANSI standard to produce form A centre holes or starting pilot and concial seat for ISO Metric countersunk-head screws, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron.


Product Specifications
EDP Number0239346
Usable Length1
Connection Diameter (Inch)0.5"
Cutting Diameter (Inch)0.2188"
Overall Length (Inch)3"
Point Angle120
Material CodeHSS
Drill LengthShort
Cutting DirectionRight Hand
CoatingBright
Surface ColorBright Silver
