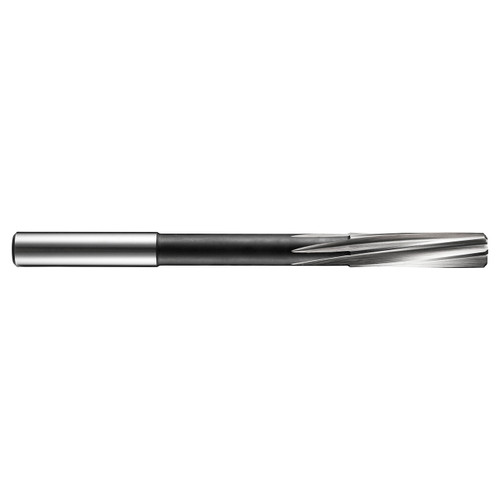

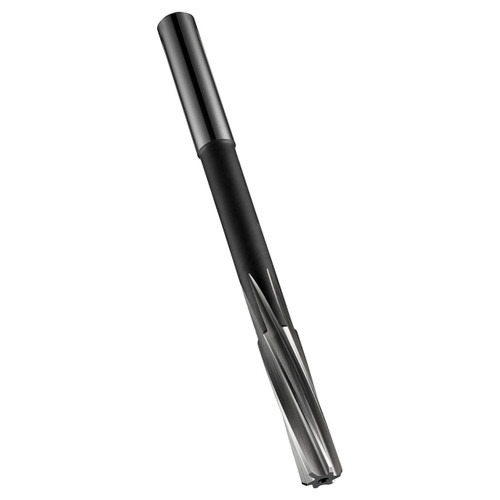

Machine reamer with left hand slow spiral flutes and a cylindrical shank, diameter 3.00mm with an overall length of 61mm, a flute length of 15mm and 32mm reach with neck relief, according to DIN 212 standard for reaming precise holes within H7 tolerance, cobalt based HSS-E with bright finish for machining free machining, plain carbon and alloy steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys.
Product Specifications
| EDP Number | 0418901 |
| Flute Count | 6 |
| Connection Diameter (Inch) | 0.1181" |
| Cutting Diameter (Inch) | 0.1181" |
| Body Length (mm) | 32mm |
| Overall Length (Inch) | 2.4016" |
| Material Code | HSS-E |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Reamer Diameter (Inch):
1/8"
Reamer Diameter (Decimal Inch):
0.1181"
Reamer Diameter (mm):
3mm
Overall Length (Inch):
2-13/32"
Overall Length (Decimal Inch):
2.4016"
Overall Length (mm):
61mm
Flute Length (Inch):
19/32"
Flute Length (Decimal Inch):
0.5900"
Flute Length (mm):
15mm
Material:
HSS-E
Finish/Coating:
Bright
