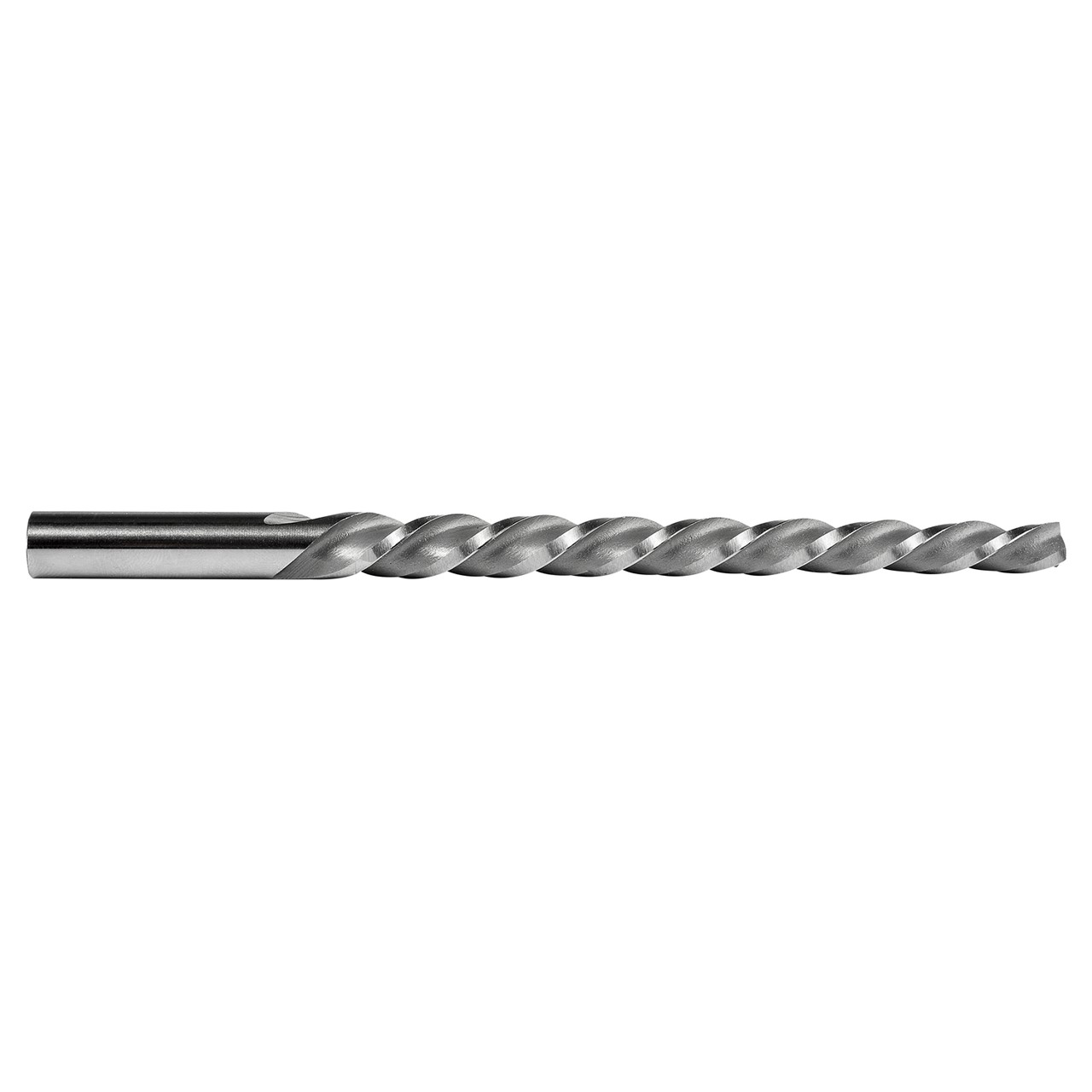

Taper pin machine reamer with left hand fast spiral flutes and a cylindrical shank, large end diameter 0.2994" with an overall length of 4.5/16", a flute length of 2.13/16" and 0.2410 small end diameter, manufactured in accordance to ANSI B94.2-1983(R1988) standards for reaming tapered pin holes with a 1:48 taper into which standard number 5 taper pins (per ASA B5.20-1958) will fit, HSS with bright finish for machining free machining and plain carbon steel, grey and malleable cast-iron, wrought and cast aluminium and copper or copper alloys.
| Flute Count | 3 |
| Connection Diameter (Inch) | 0.2994" |
| Cutting Diameter (Inch) | 0.241" |
| Overall Length (Inch) | 4.3125" |
| Material Code | HSS |
| Cutting Direction | Right Hand |
| Coating | Bright Silver |
| Surface Color | Original surface |
| Country of origin | United States of America |
