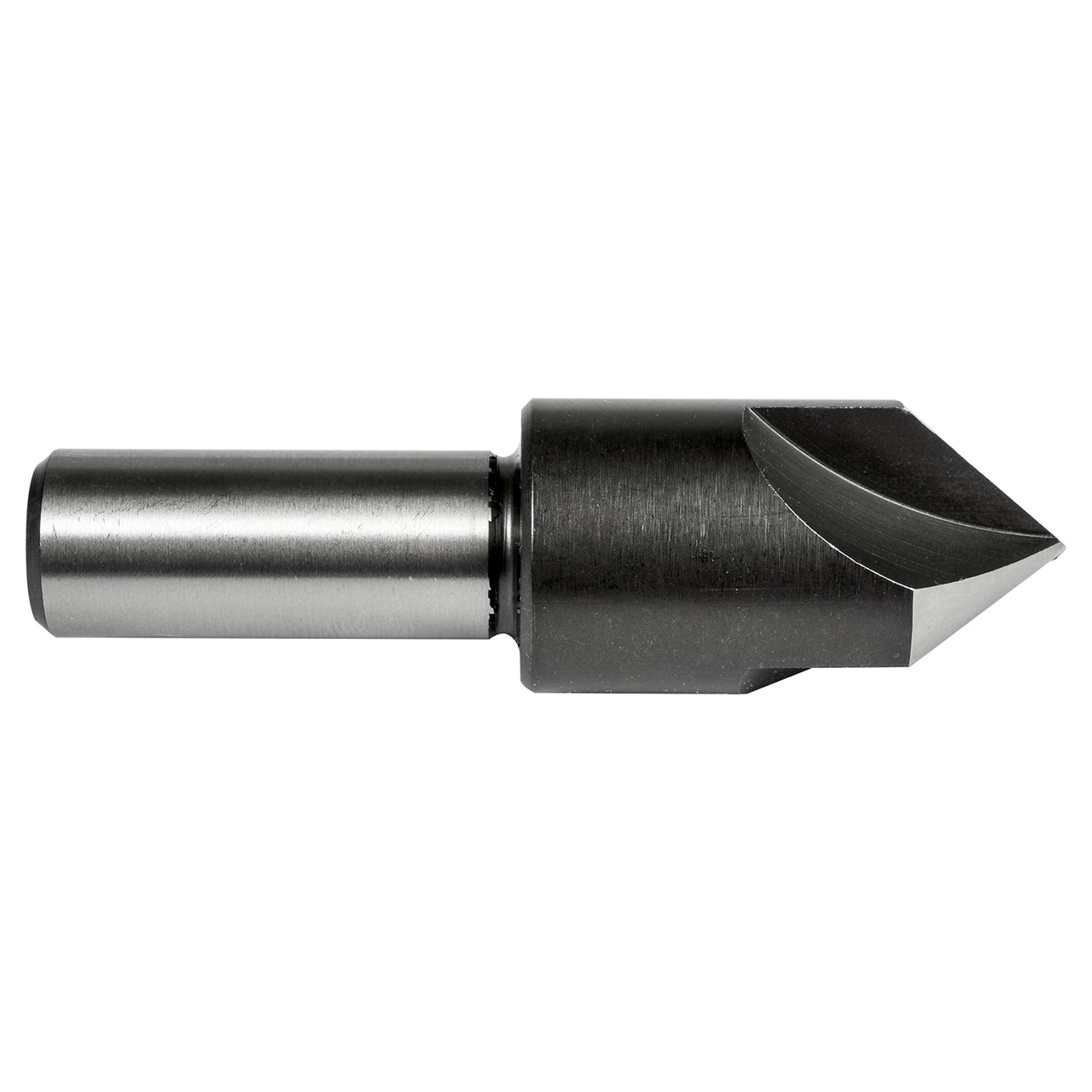

Center Reamer with 3-flutes, 100° countersink angle, maximum diameter 1/4" with an overall length of 1.1/2" and a head length of 3/4" and 3/16" straight shank, manufactured in accordance to ANSI B94.2-1983(R1988) standards to finish ream a conical seat for BS standard flat-head screws and aviation fasteners, HSS with standard bright finish for machining free machining and plain carbon steel, wrought and copper or copper alloys.
Product Specifications
| Flute Count | 3 |
| Connection Diameter (Inch) | 0.1875" |
| Cutting Diameter (Inch) | 0.25" |
| Overall Length (Inch) | 1.5" |
| Point Angle | 100 |
| Material Code | HSS |
| Cutting Direction | Right Hand |
| Coating | Bright Silver |
| Surface Color | Original surface |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Head Diameter (Inch):
1/4"
Head Diameter (Decimal Inch):
0.2500"
Head Diameter (mm):
6.35mm
Material:
HSS
Finish/Coating:
Bright Silver
Number of Flutes:
3
