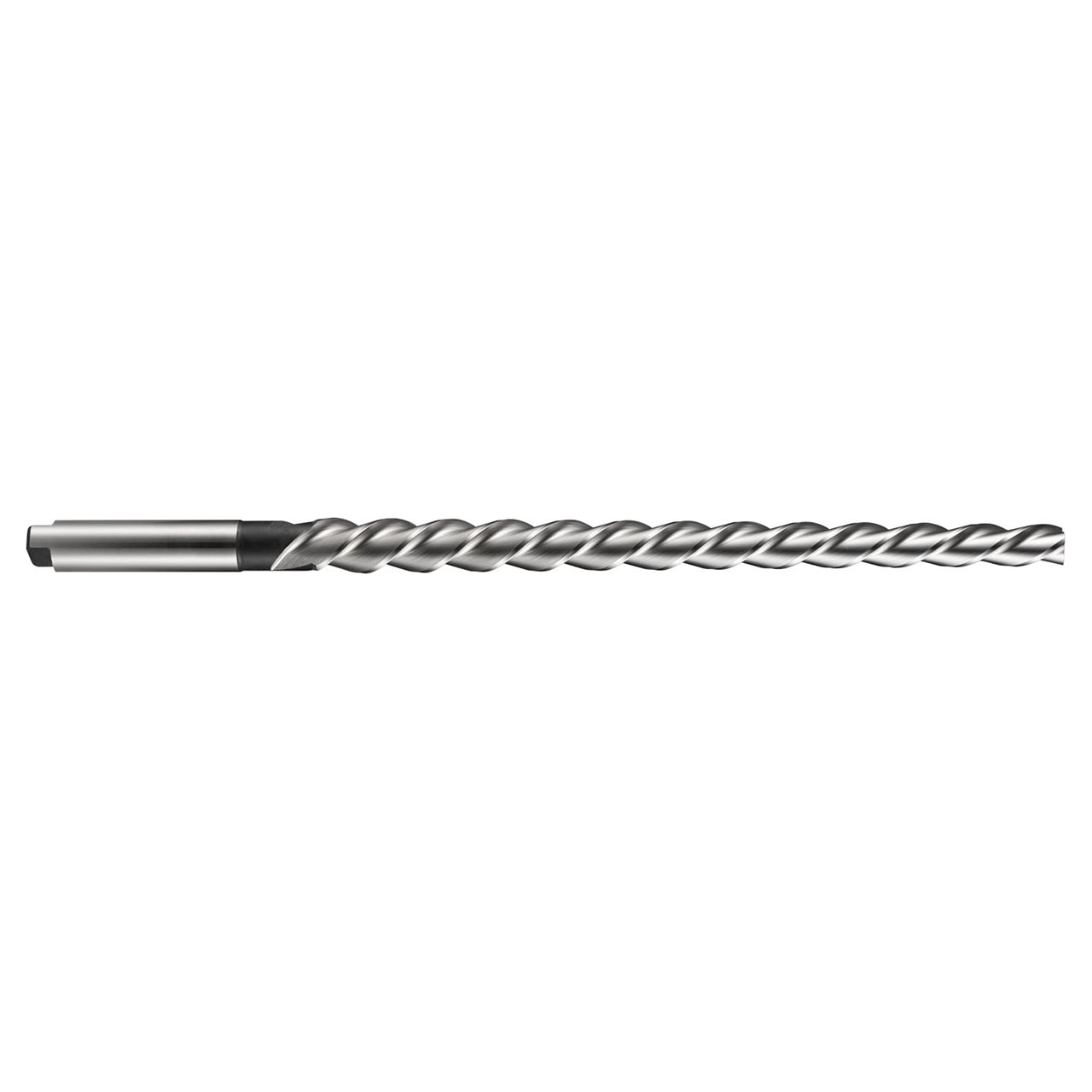

Taper pin machine reamer with left hand fast spiral flutes and a cylindrical shank with tang, small end diameter 6.40mm with an overall length of 188mm, a flute length of 119mm and 8.78mm large end diameter, according to DIN 2179 standard for reaming pin holes with a 1:50 taper into which 6.50mm taper pins will fit, cobalt based HSS-E with bright finish for machining free machining and plain carbon steel, grey and malleable cast-iron, cast aluminium.
Product Specifications
| EDP Number | 0141076 |
| Flute Count | 3 |
| Connection Diameter (Inch) | 0.3346" |
| Overall Length (Inch) | 7.4016" |
| Material Code | HSS-E |
| Cutting Direction | Right Hand |
| Coating | Bright |
| Surface Color | Bright Silver |
| Country of origin | Germany |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Dormer
Flute Length (Inch):
2-1/4"
Flute Length (Decimal Inch):
2.2400"
Flute Length (mm):
57mm
Overall Length (Inch):
3-1/2"
Overall Length (Decimal Inch):
3.5039"
Overall Length (mm):
89mm
Material:
HSS
Finish/Coating:
Bright/ST
