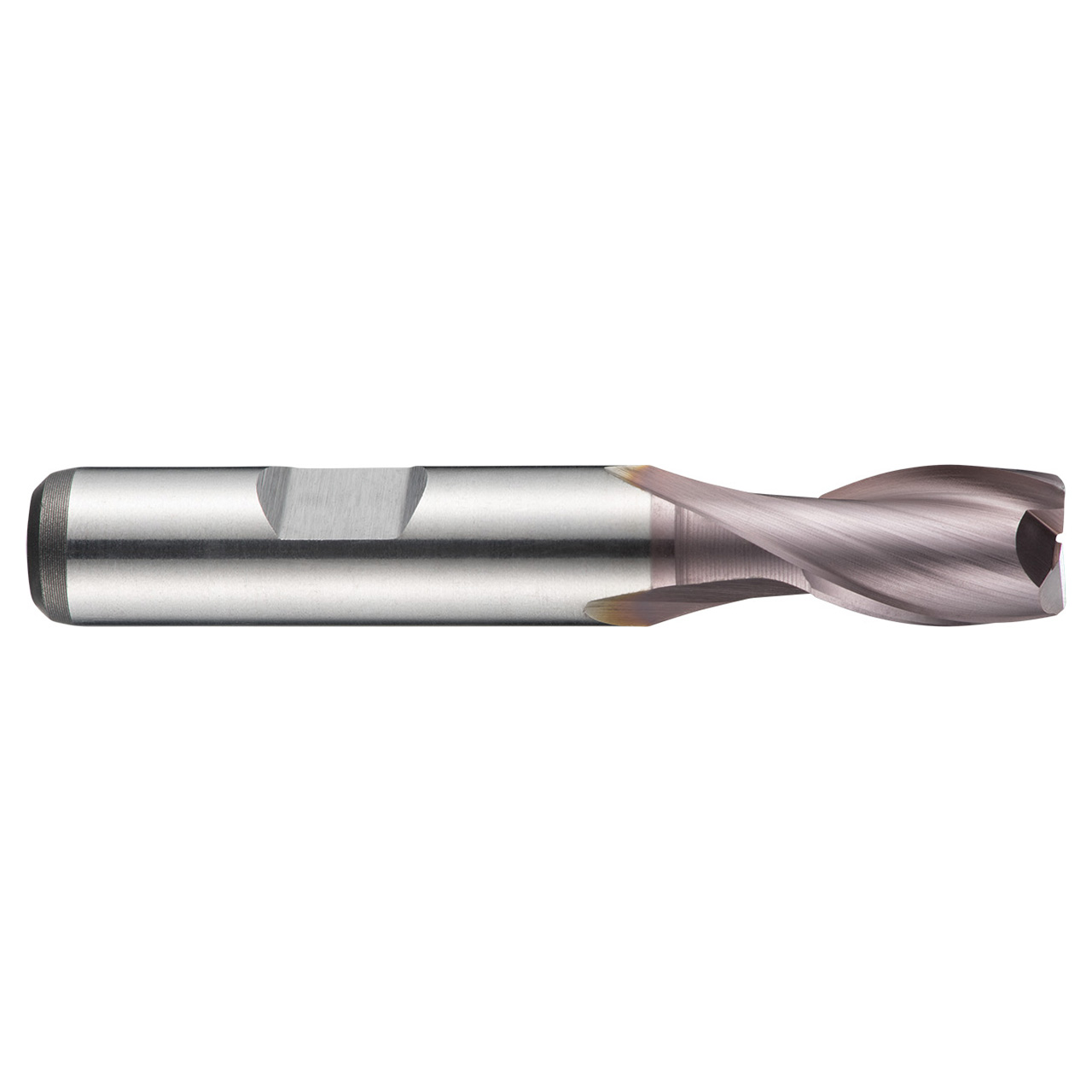

C126 2 flute milling cutters will give you great performance coupled with a long tool life, being manufactured from powder metal high speed cobalt. They have a titanium carbo nitride coating which further increases the service life of the cutter and gives improved performance when machining hard and abrasive materials. The high rigidity achieved by the short length flute design makes C126 perfect for milling shallow slots, whilst the accurate diameter means they are also perfect for milling standard keyway slots to a P9 tolerance. For effective use in plunging, ramping and profile milling of steels, cast iron and stainless steels, there's no more versatile cutter than the C126.
Max Depth of Cut (mm) | 7mm |
Connection Diameter (Inch) | 0.2362" |
Cutting Diameter (Inch) | 0.1575" |
Overall Length (Inch) | 2.0079" |
Material Code | HSS-E-PM |
Radial Rake Angle | 12 |
No of Flute | 2 |
Flute Helix Angle | 30 |
Coating | TiCN |
Surface Color | Purple |
