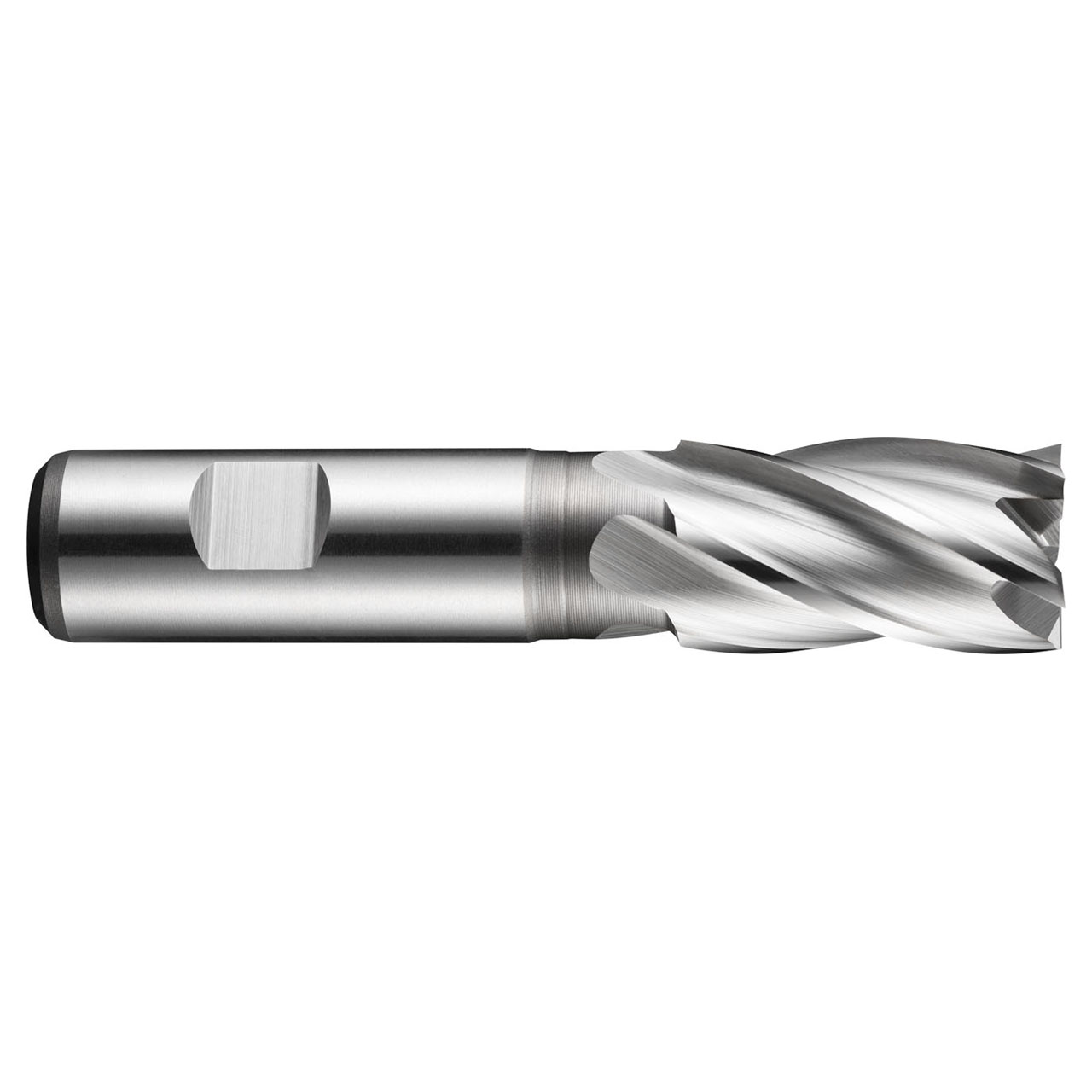

Dormer C2474.0 | 0.1575" Diameter x 2.1654" OAL 4 Flute Bright Coated Square End Mill

$27.45
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
25140055
UPC:
7320760354766
Weight:
0.42 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

C247 4-flute milling cutters have a bright finish which prevents workpiece material from sticking to the cutting edge of the tool and so gives you a cleaner, more accurate finish whilst the strong design means the cutters can be used for both profile milling and slotting. Manufactured from powder metal high speed cobalt, C247 cutters will give you longer tool life with a great performance level. They have a medium length flute design which gives high rigidity for general profile milling applications. Suitable for plunging, profile milling and ramping in cast iron, steels and stainless steels, C247 milling cutters are very versatile products.


Product Specifications
Max Depth of Cut (mm)11mm
Connection Diameter (Inch)0.2362"
Cutting Diameter (Inch)0.1575"
Overall Length (Inch)2.1654"
Material CodeHSS-E-PM
Radial Rake Angle12
No of Flute4
Flute Helix Angle30
CoatingBright
Surface ColorBright Silver
