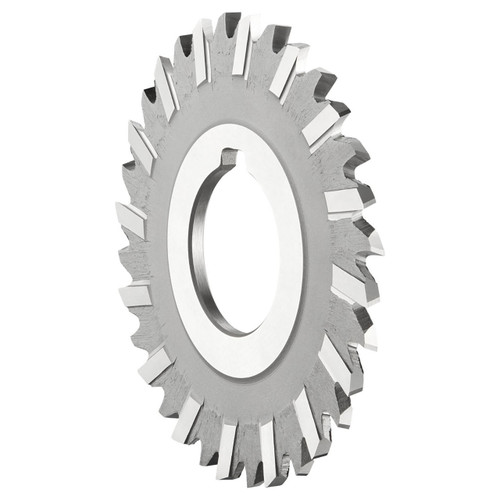

D763 side and face bore cutter from Dormer have a fine pitch design, ideal for narrow, deep slots, where the staggered tooth geometry also helps control chips during milling. They are manufactured from high speed cobalt which gives excellent tool strength, performance and wear resistance and have a bright finish to stop workpiece material from sticking to the cutting edges of the tool, so you get a clean and accurate result. D763 fine pitch side and face cutter are very versatile and can be used for horizontal milling slots in steels, stainless steels, aluminium and cast iron.
| Connection Diameter (Inch) | 0.8661" |
| Cutting Diameter (Inch) | 2.4803" |
| Material Code | HSS-E |
| Radial Rake Angle | 10 |
| No of Flute | 32 |
| Flute Helix Angle | 15 |
| Coating | Bright |
| Surface Color | Bright Silver |
