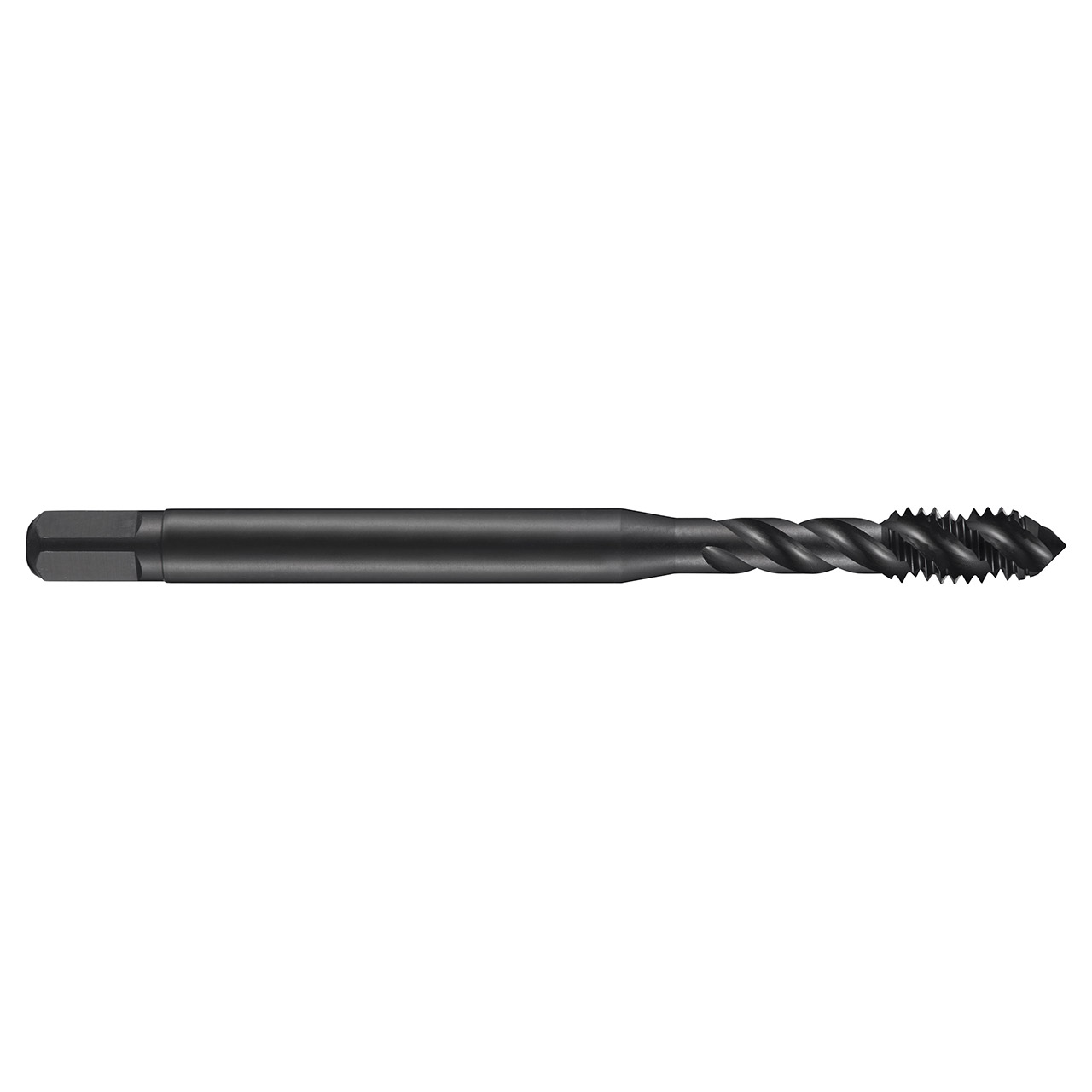

Dormer E003M14 | 0.4409" Diameter x 3.7402" OAL 3 Flute Steam Tempered Coated Spiral Flute Tap

$58.25
Brand:
Dormer
SKU:
15024238
UPC:
7320760568088
Weight:
2.37 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M14 with 2.00mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 11.2mm shank and 9.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish and 45 Degree helix angle for 2.5xD blind hole threading in general purpose applications.


Product Specifications
Connection Diameter (Inch)0.4409"
Overall Length (Inch)3.7402"
Clamping Width (mm)9mm
No of Flutes3
Flute Helix Angle45
Thread Pitch (mm)2mm
Clamping Length12
Thread Diameter Size14
Threading Length (mm)18mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingSteam Tempered
Tap Chamfer StyleC 2-3
Surface ColorBlack
Thread FormM-Metric coarse
Country of originIndia
