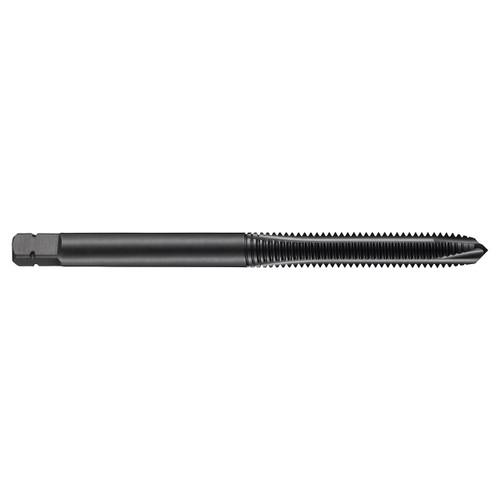

Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M6 with 1.00mm pitch and 6H class of fit, dimensions according to ANSI standard with 0.2550" shank and 0.1910" square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications.
Product Specifications
| Connection Diameter (Inch) | 0.255" |
| Overall Length (Inch) | 2.5" |
| No of Flutes | 2 |
| Usable Length (Inch) | 1.0073" |
| Thread Pitch (mm) | 1mm |
| Thread Diameter Size | 6 |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6H |
| Threading Length (Inch) | 0.5075" |
| Cutting Direction | Right Hand |
| Coating | Steam Tempered |
| Tap Chamfer Style | B 3.5-5 |
| Surface Color | Black |
| Thread Form | M-Metric coarse |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
