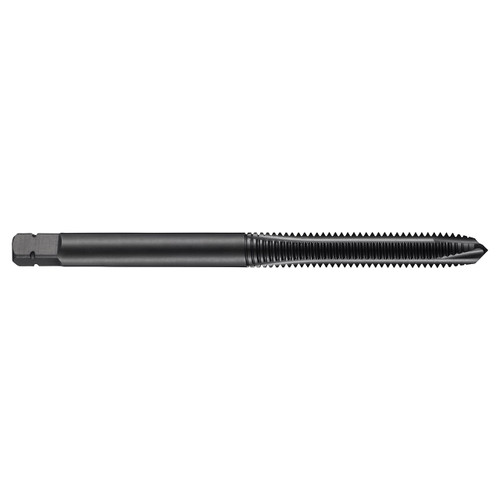

Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for Unified National Coarse thread UNC 1" with 8 TPI and 2B class of fit, dimensions according to ISO 529 standard with 18.0mm shank and 14.0mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications.
Product Specifications
| Connection Diameter (Inch) | 0.7087" |
| Overall Length (Inch) | 5.1181" |
| Clamping Width (mm) | 14mm |
| Thread Diameter (mm) | 25.4mm |
| No of Flutes | 4 |
| Clamping Length | 18 |
| Thread Diameter Size | 1" |
| Threading Length (mm) | 35mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 2B |
| Cutting Direction | Right Hand |
| Coating | Steam Tempered |
| Tap Chamfer Style | B 3.5-5 |
| Surface Color | Black |
| Thread Form | UNC-Unified Coarse |
