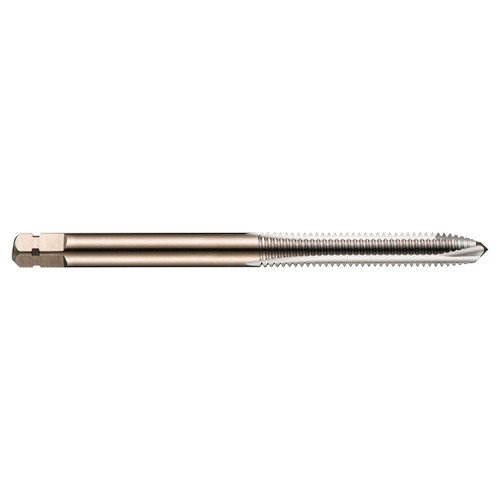

Spiral point tap with chamfer form B with a 3.5-5xP plug lead, for Unified National Fine thread UNF 10 with 32 TPI and 3B class of fit with H2 pitch diameter limits, dimensions according to ANSI standard with 0.1940" shank and 0.1520" square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications.
Product Specifications
| Connection Diameter (Inch) | 0.194" |
| Overall Length (Inch) | 2.375" |
| No of Flutes | 2 |
| Usable Length (Inch) | 0.8434" |
| Thread Diameter Size | 10 |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 3B |
| Threading Length (Inch) | 0.4303" |
| Cutting Direction | Right Hand |
| Coating | Steam Tempered |
| Tap Chamfer Style | B 3.5-5 |
| Surface Color | Black |
| Thread Form | UNF-Unified Fine |
