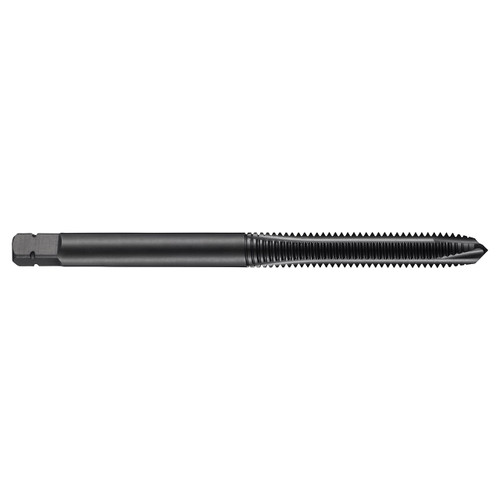

Dormer E03810-32 | 0.194" Diameter x 2.375" OAL 3 Flute Steam Tempered Coated Spiral Flute Tap

$20.76
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15024518
UPC:
7320760582435
Weight:
0.36 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for Unified National Fine thread UNF 10 with 32 TPI and 3B class of fit with H2 pitch diameter limits, dimensions according to ANSI standard with 0.1940" shank and 0.1520" square drive, powder metallurgical HSS-E with steam tempered surface finish and 45° helix angle for 2.5xD blind hole threading in general purpose applications.


Product Specifications
Connection Diameter (Inch)0.194"
Overall Length (Inch)2.375"
No of Flutes3
Flute Helix Angle45
Usable Length (Inch)0.8434"
Thread Diameter Size10
Material CodeHSS-E-PM
Thread Tolerance Class3B
Threading Length (Inch)0.265"
Cutting DirectionRight Hand
CoatingSteam Tempered
Tap Chamfer StyleC 2-3
Surface ColorBlack
Thread FormUNF-Unified Fine
