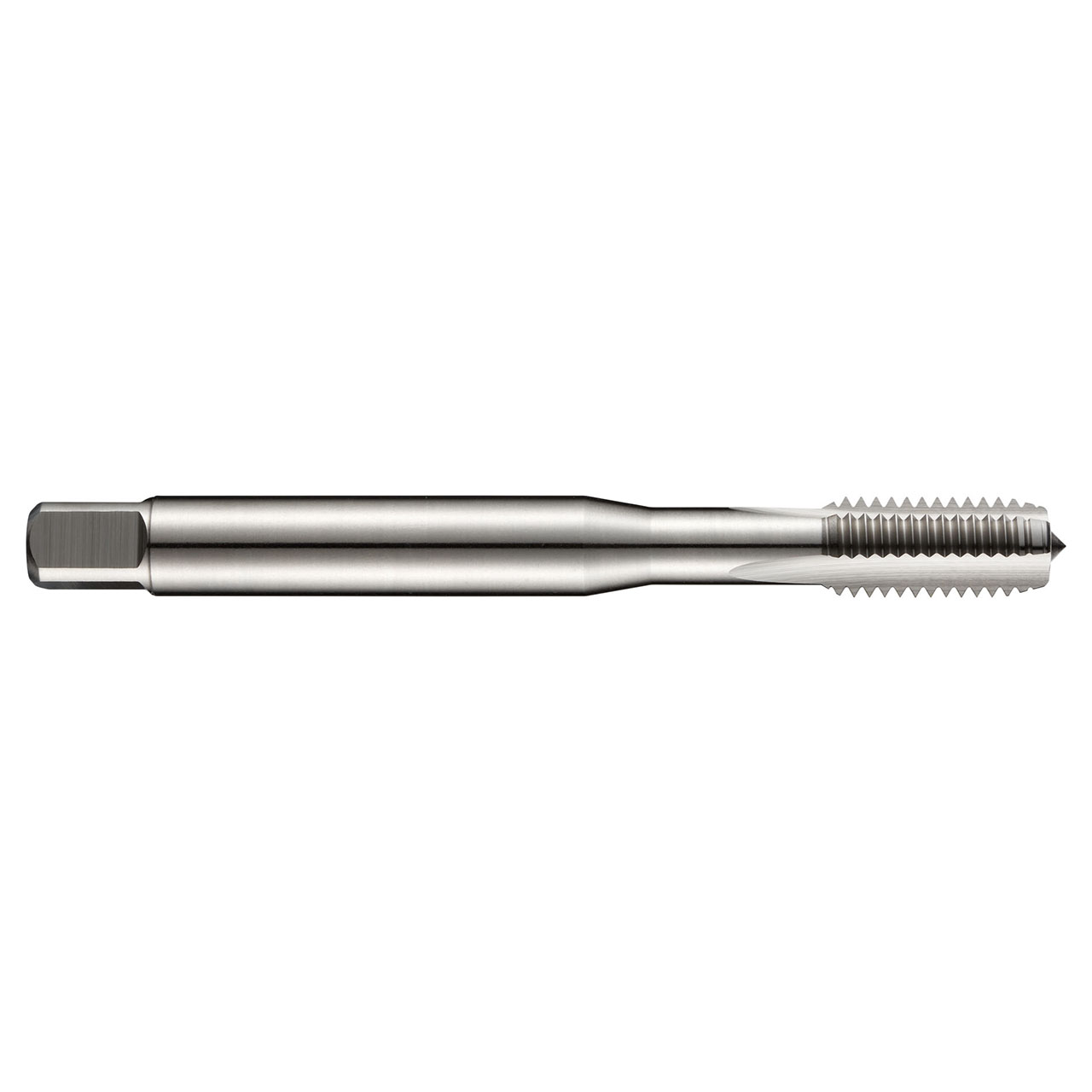

Dormer E200M10 | 0.3937" Diameter x 3.937" OAL 3 Flute Bright Coated Straight Flute Tap

$24.93
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15022344
UPC:
7320760085080
Weight:
1.94 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Straight flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M10 with 1.50mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 10.0mm shank and 8.0mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel.


Product Specifications
Connection Diameter (Inch)0.3937"
Overall Length (Inch)3.937"
Clamping Width (mm)8mm
No of Flutes3
Usable Length (mm)39mm
Thread Pitch (mm)1.5mm
Clamping Length11
Thread Diameter Size10
Threading Length (mm)20mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingBright
Tap Chamfer StyleA 6-8 / C 2-3
Surface ColorBright Silver
Thread FormM-Metric coarse
