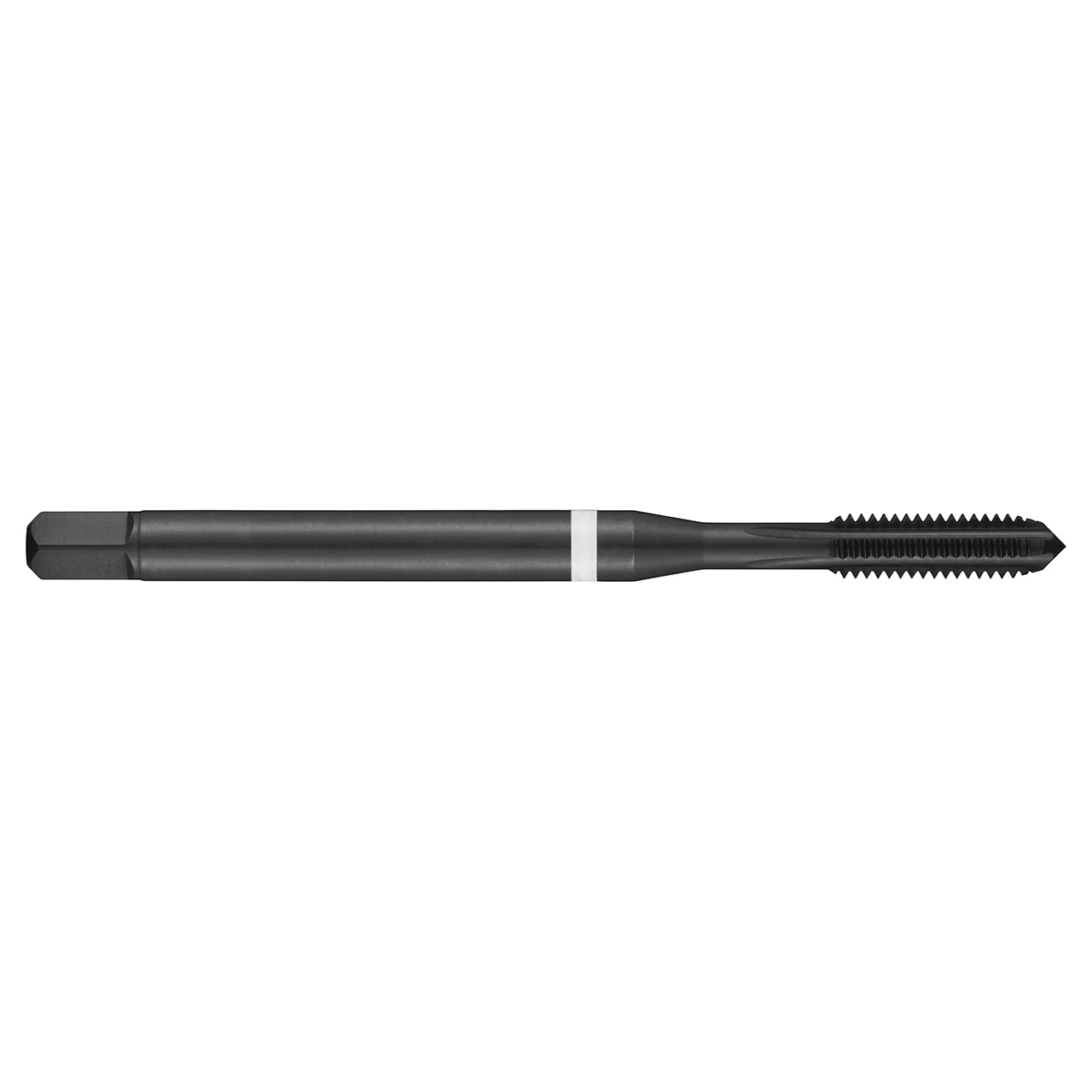

Dormer E201M4 | 0.1772" Diameter x 2.4803" OAL 4 Flute Steam Tempered Coated Straight Flute Tap

$43.60 $19.62
(You save $23.98)
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15022353
UPC:
7320760085196
Weight:
0.32 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Straight flute tap White Shark with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M4 with 0.70mm pitch and 6HX class of fit, dimensions according to DIN 371 standard with 4.5mm shank and 3.4mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers.


Product Specifications
Connection Diameter (Inch)0.1772"
Overall Length (Inch)2.4803"
Clamping Width (mm)3.4mm
No of Flutes4
Usable Length (mm)21mm
Thread Pitch (mm)0.7mm
Clamping Length6
Thread Diameter Size4
Threading Length (mm)12mm
Material CodeHSS-E-PM
Thread Tolerance Class6HX
Cutting DirectionRight Hand
CoatingSteam Tempered
Tap Chamfer StyleC 2-3
Surface ColorBlack
Thread FormM-Metric coarse
