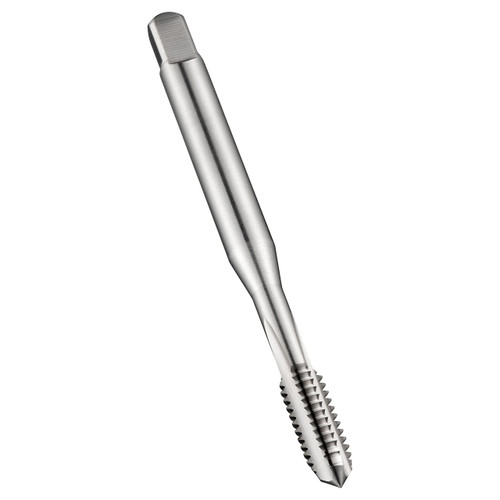

Dormer E237M3 | 0.1378" Diameter x 2.2047" OAL 3 Flute Bright Coated Straight Flute Tap

$26.42
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15022394
Weight:
0.21 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Straight flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for left hand ISO-Metric thread M3 with 0.50mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 3.5mm shank and 2.7mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel.


Product Specifications
Connection Diameter (Inch)0.1378"
Overall Length (Inch)2.2047"
Clamping Width (mm)2.7mm
No of Flutes3
Usable Length (mm)18mm
Thread Pitch (mm)0.5mm
Clamping Length6
Thread Diameter Size3
Threading Length (mm)9mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionLeft Hand
CoatingBright
Tap Chamfer StyleC 2-3
Surface ColorBright Silver
Thread FormM-Metric coarse
