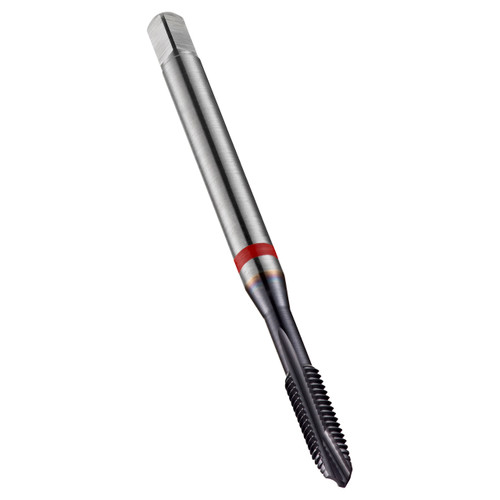

Spiral point tap Red Shark with chamfer form B with a 3.5-5xP plug lead, for ISO-Metric thread M3 with 0.50mm pitch and 6H class of fit, dimensions according to DIN 371 standard with 3.5mm shank and 2.7mm square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD through hole threading in plain carbon, alloy and tool steel.
Product Specifications
| Connection Diameter (Inch) | 0.1378" |
| Overall Length (Inch) | 2.2047" |
| Clamping Width (mm) | 2.7mm |
| No of Flutes | 3 |
| Usable Length (mm) | 18mm |
| Thread Pitch (mm) | 0.5mm |
| Clamping Length | 6 |
| Thread Diameter Size | 3 |
| Threading Length (mm) | 9mm |
| Material Code | HSS-E-PM |
| Thread Tolerance Class | 6HX |
| Cutting Direction | Right Hand |
| Coating | TiAlN/Top |
| Tap Chamfer Style | B 3.5-5 |
| Surface Color | Black - Deep Purple |
| Thread Form | M-Metric coarse |
