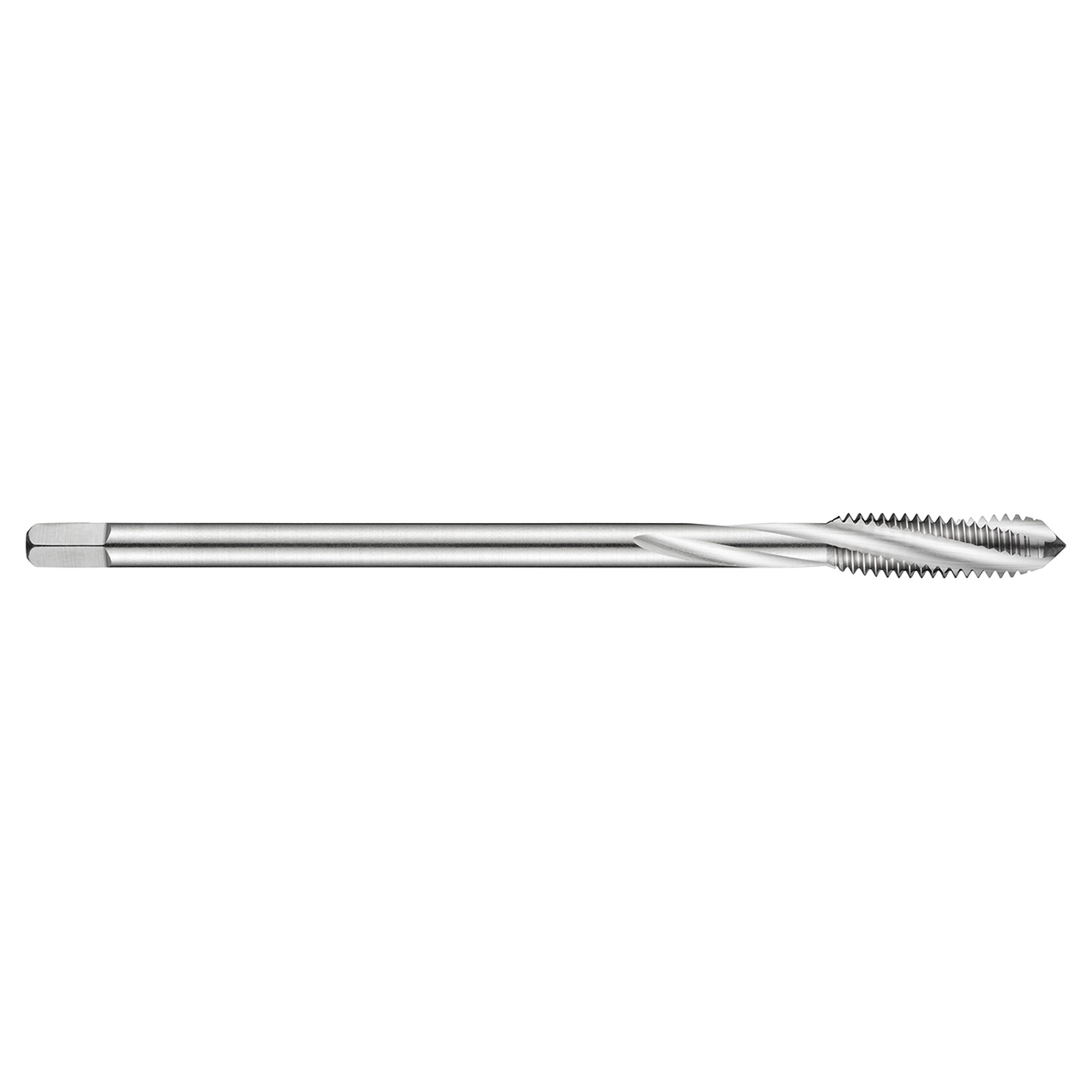

Dormer E258M18 | 0.5512" Diameter x 4.9213" OAL 3 Flute Bright Coated Spiral Flute Tap

$82.35
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15022456
Weight:
5.19 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Spiral flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric thread M18 with 2.50mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 14.0mm shank and 11.0mm square drive, powder metallurgical HSS-E with bright finish and 15° helix angle for 1.5xD blind hole threading in alloy steel.


Product Specifications
Connection Diameter (Inch)0.5512"
Overall Length (Inch)4.9213"
Clamping Width (mm)11mm
No of Flutes3
Flute Helix Angle15
Thread Pitch (mm)2.5mm
Clamping Length14
Thread Diameter Size18
Threading Length (mm)30mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingBright
Tap Chamfer StyleC 2-3
Surface ColorBright Silver
Thread FormM-Metric coarse
