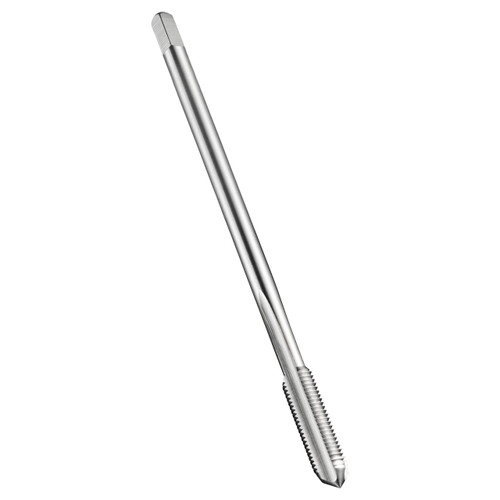

Dormer E268M30X1.5 | 0.8661" Diameter x 5.9055" OAL 4 Flute Bright Coated Straight Flute Tap

$172.35
Ships:
From Partner Facility
Ships:
From Partner Facility
SKU:
15022508
UPC:
7320760088746
Weight:
16.54 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Straight flute tap with chamfer form C with a 2-3xP semi-bottoming lead, for ISO-Metric Fine thread M30 with 1.50mm pitch and 6H class of fit, dimensions according to DIN 374 standard with 22.0mm shank and 18.0mm square drive, powder metallurgical HSS-E with bright finish for 1.5xD through or blind hole threading in free machining and plain carbon steel.


Product Specifications
Connection Diameter (Inch)0.8661"
Overall Length (Inch)5.9055"
Clamping Width (mm)18mm
No of Flutes4
Thread Pitch (mm)1.5mm
Clamping Length21
Thread Diameter Size30
Threading Length (mm)28mm
Material CodeHSS-E-PM
Thread Tolerance Class6H
Cutting DirectionRight Hand
CoatingBright
Tap Chamfer StyleC 2-3
Surface ColorBright Silver
Thread FormMF-Metric fine
